Labconco Cell Logic A2 User Manual page 48

Navigating the Settings Menu
Keypad button presses and screen touches are shown as
Menu screen selections are shown as
To access the Settings Screen
by the gear-icon) on the Menu Bar of the display. The display will change to the
Screen (see Figure 6-4). To return to the
Menu Bar.
Configuration Submenu
Touch [Configuration]. This screen configures optional features. Reference Figure 6-5. A
security code is required for this screen. When prompted, enter
user/admin PIN chosen for the device.
•
– Touching the toggle between ON & OFF will enable or disable the UV
UV Light
Light features. If the UV package is factory installed, this toggle will be enabled. If
removed or field installed, adjust the toggle accordingly.
•
UV Light On Time
can be set using the scroll down menu. The options are 10 minutes through 120
minutes in increments of 10 minutes with an option for infinity. The default for the UV
Light On Time is 30 minutes.
green
from the Home
Home
– The time that the UV light remains on before auto shutting off
48
[BLUE WITH
italics.
Screen, press [Settings]
Screen, press [Home]

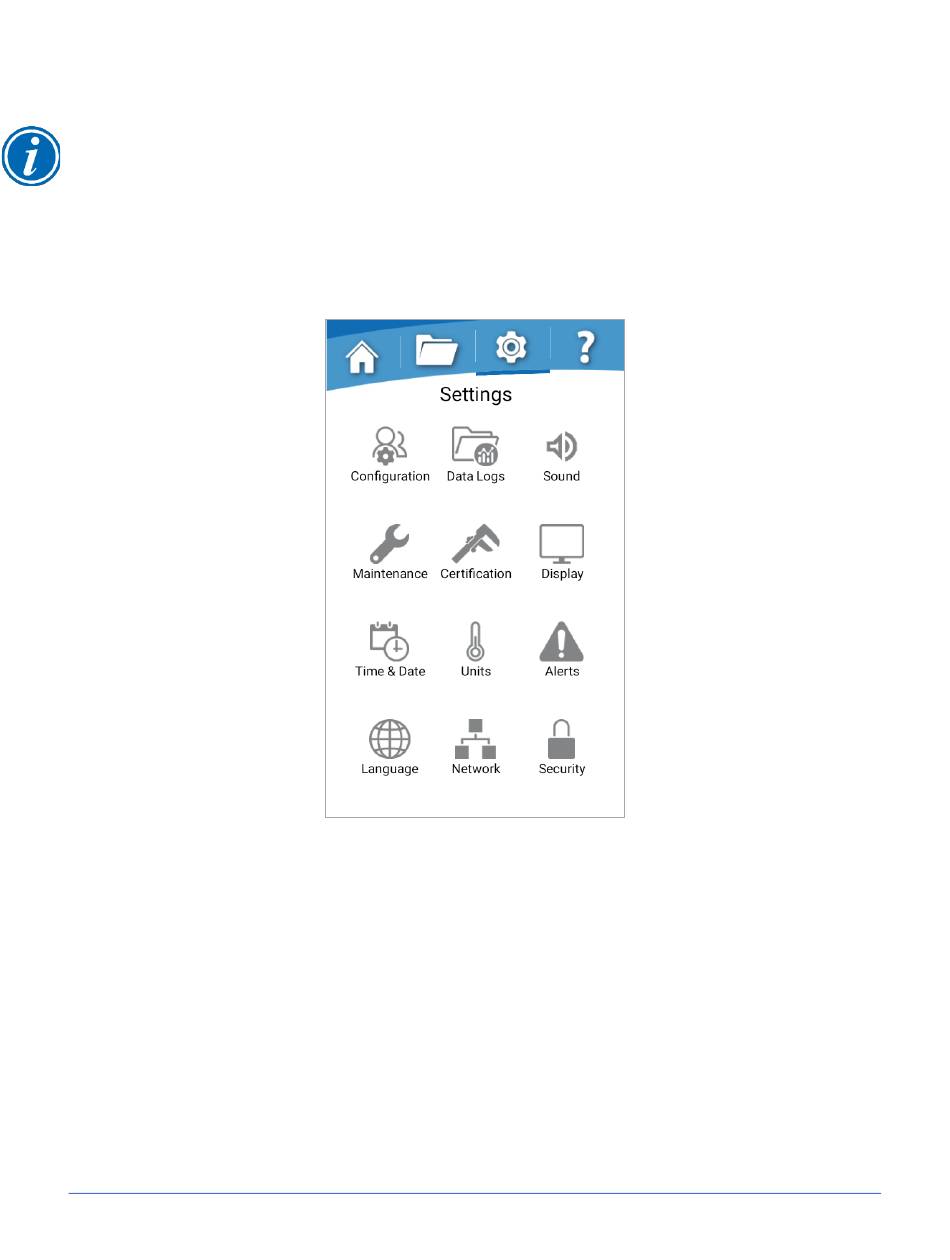

Figure 6-4
[1] [9] [2] [5]
BRACKETS].
(represented
Settings
along the same
or the
