Labconco Cell Logic A2 User Manual page 109

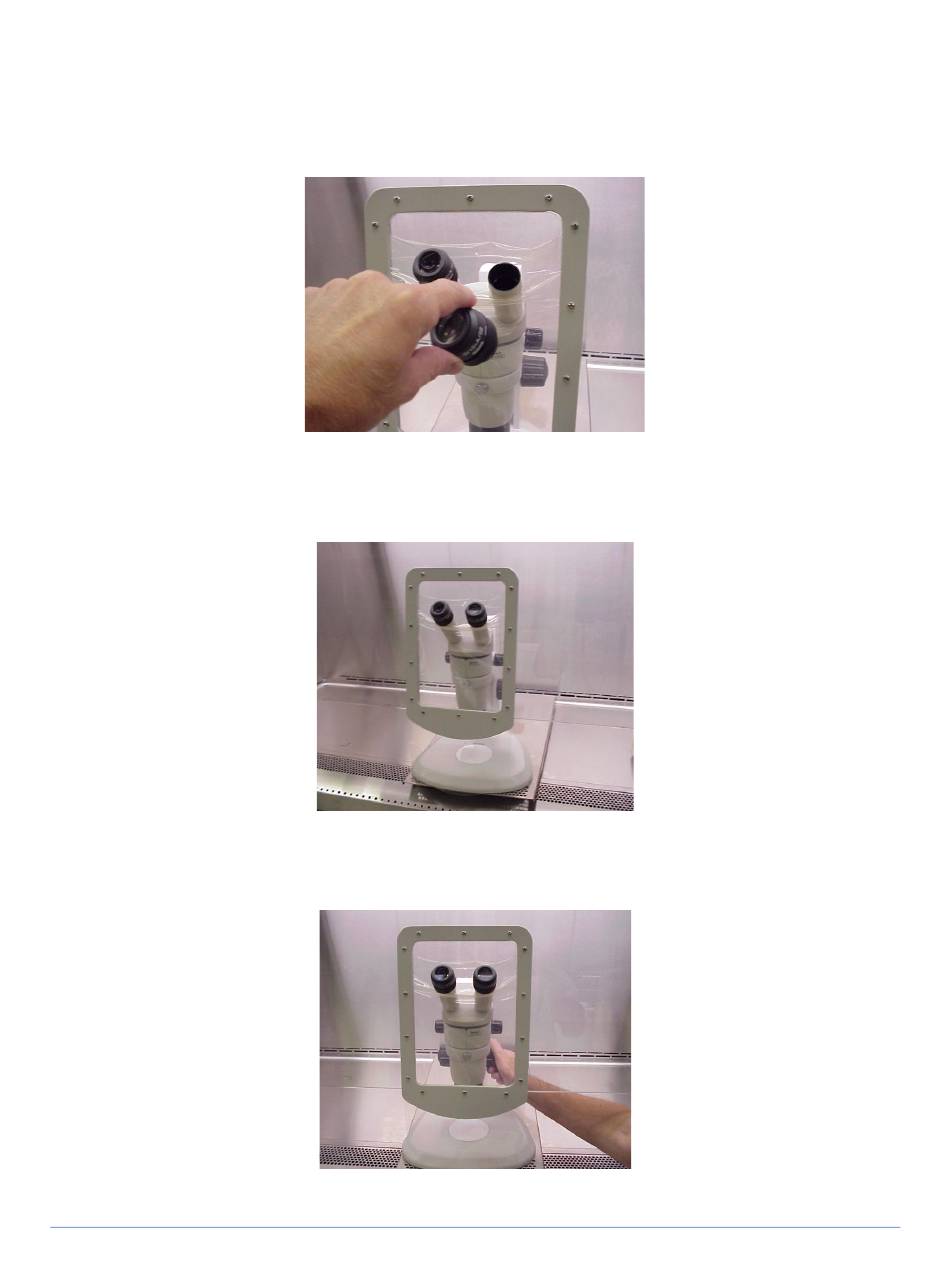

6. Per Figure E-8, move the microscope forward through the holes in the Pure-Vu
Seal and install each eyepiece. A tight seal should be formed around each
eyepiece.
7. Figure E-9 shows the finished installation.
8. Per Figure E-10, adjust the scope eyepiece height for proper focus.
Figure E-8
Figure E-9
Figure E-10
109
