Keypad

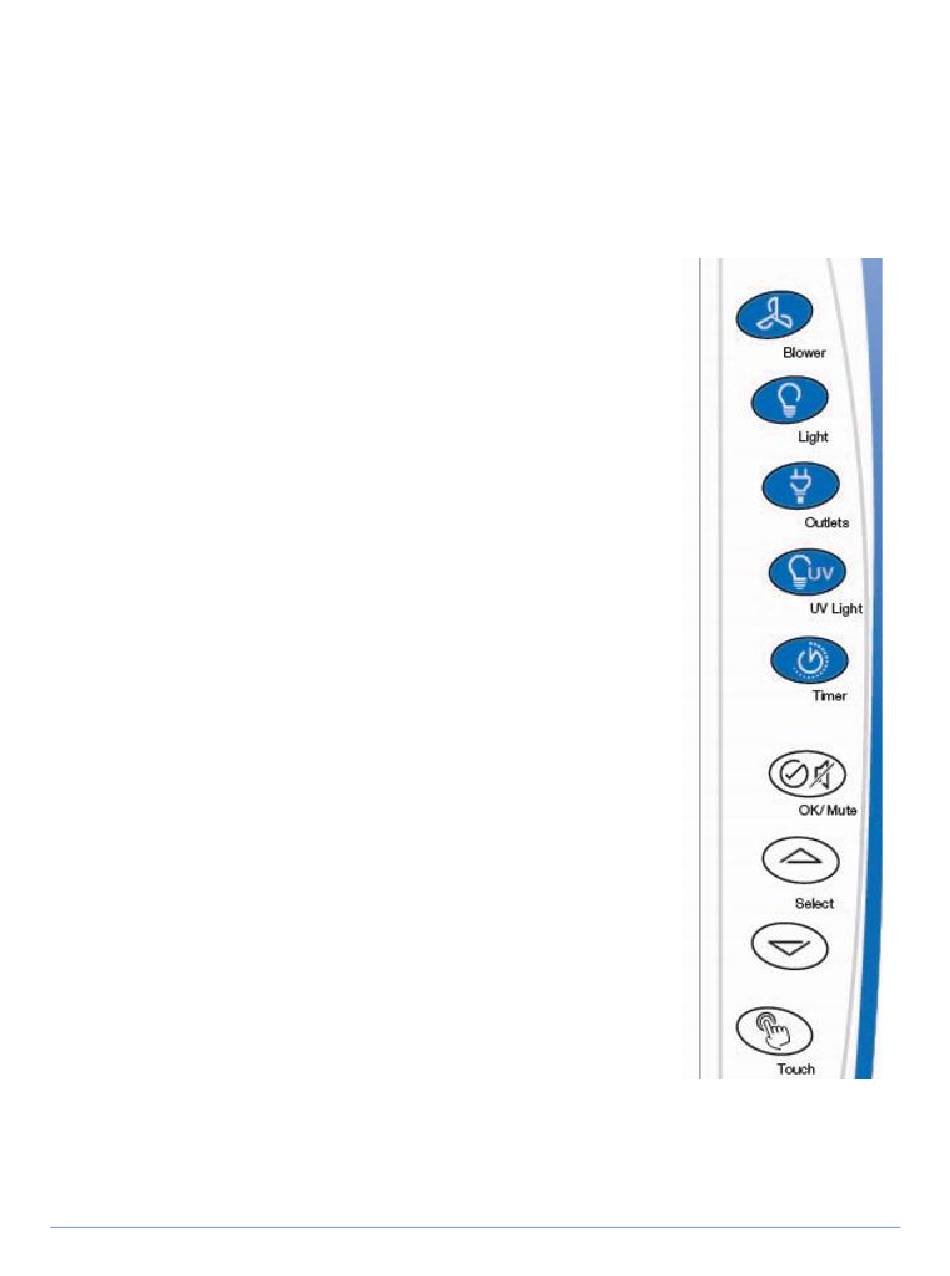

The keypad of the cabinet is shown in Figure 7-3. Take a moment to familiarize yourself
with the buttons, their locations and functions. Also familiarize yourself with the display
located on the right side wall. The display will report system functions, such as filter
capacity, timer displays, alarm or error messages, as well as icons that illuminate when
cabinet functions such as the light and blower are operational.
– Starts or stops the cabinet blower. When the
[BLOWER]
blower is in automatic (Smart-Start™) mode, opening the sash
from the closed position turns the blower on automatically.
The cabinet can also be configured so that when the sash is
closed, the motor slows to maintain air cleanliness in the work
area (Night-Smart™). When the sash is reopened, the blower
resumes normal operation. Pressing the blower button at any
time overrides the automatic operation.
– Turns the LED lamps on or off. Closing the sash
[LIGHT]
automatically turns the lights off. When the lights are in
automatic (Smart-Start) mode, raising the sash turns the lights
on automatically. Pressing the light button at any time
overrides the automatic operation.
– Turns on/off electrical outlets in the work area.
[OUTLETS]
– Turns on/off the UV lamp (when installed).
[UV LIGHT]
When the UV lamp is in automatic mode, closing the sash
turns the UV light on automatically. When the sash is raised,
the UV light turns off automatically. Sash must be closed for
operation.
– Allows you to control (play, pause, and reset) the
[TIMER]
optional Timer on the Home Screen.
– Mutes all audible alarms for approximately 5
[OK/MUTE]
minutes, unless there is a system error alarm. When in
Certification, this button is used to select an option.
[UP] and [DOWN]
change numerical fields in Certification.
– Turns on/off the touch screen capabilities of the display.
[TOUCH]
– Moves between selectable options or
68
Figure 7-3
