Labconco Cell Logic A2 User Manual

Biosafety cabinets
Hide thumbs Also See for Cell Logic A2:

Advertisement

Quick Links

Download this manual
Please read user's manual before
operating equipment
Original Instructions
LABCONCO CORPORATION
8811 Prospect Avenue
Kansas City, MO 64132
(800) 821-5525 I +1 (816) 333-8811
labconco.com
User's Manual
®

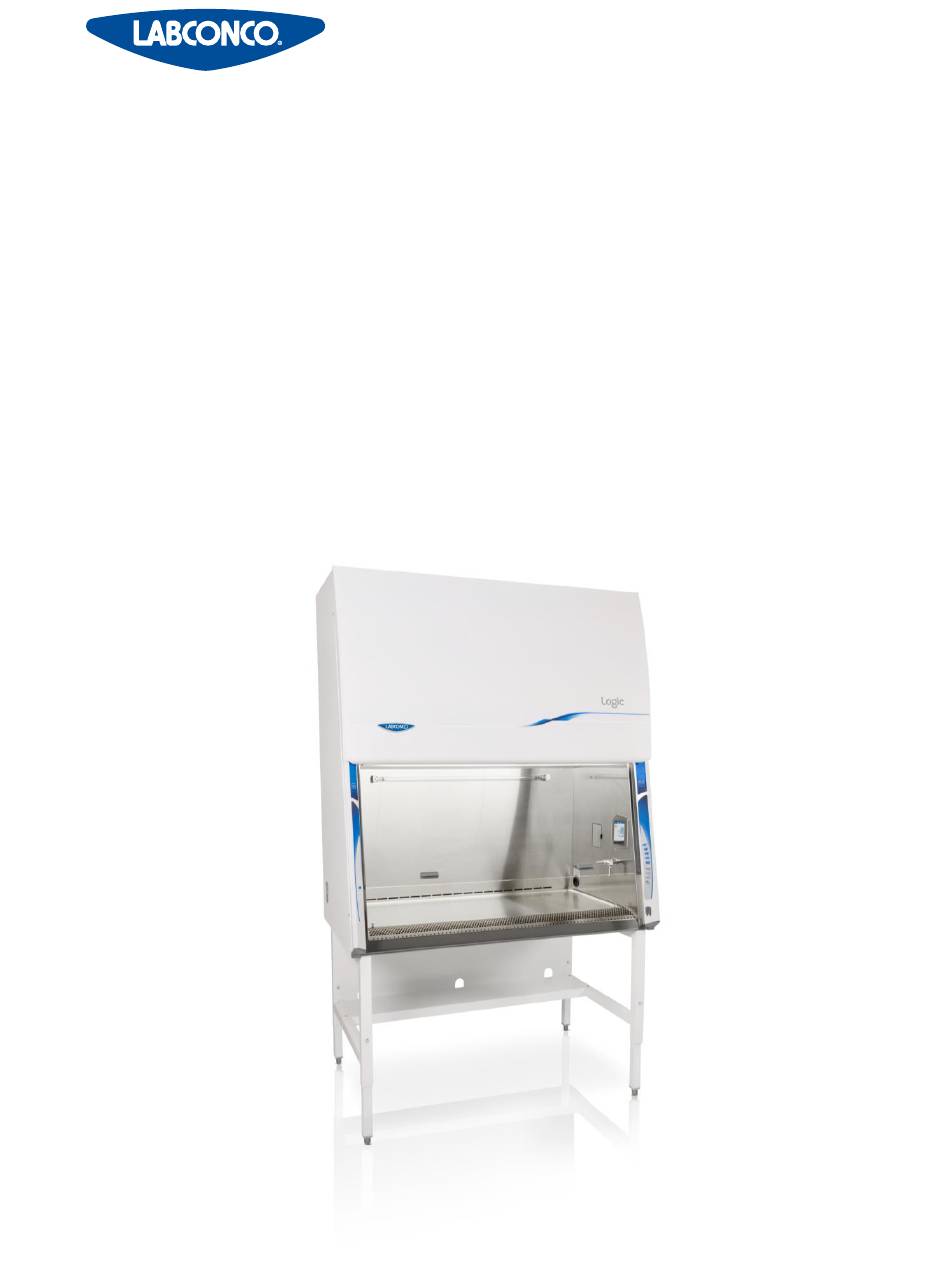

Cell Logic
Type A2 Biosafety Cabinets
Register this product

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cell Logic A2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Labconco Cell Logic A2

Summary of Contents for Labconco Cell Logic A2

  • Page 1 Please read user’s manual before operating equipment Original Instructions LABCONCO CORPORATION 8811 Prospect Avenue Kansas City, MO 64132 (800) 821-5525 I +1 (816) 333-8811 labconco.com User’s Manual ® Cell Logic Type A2 Biosafety Cabinets Register this product...
  • Page 2 Cell Logic ® Type A2 Biosafety Cabinets 2024—Present 32239xxx2 33239xxx2 34239xxx2 32249xxx2 33249xxx2 34249xxx2 32259xxx2 33259xxx2 34259xxx2 32269xxx2 33269xxx2 34269xxx2...
  • Page 3 Warranty Labconco Corporation provides a warranty to the original buyer for the repair or replacement of parts and reasonable labor as a result of normal and proper use of the equipment with compatible chemicals. Broken glassware and maintenance items, such as filters, gaskets, light bulbs, finishes and lubrication are not warranted.
  • Page 4 Table of Contents 1: INTRODUCTION About This Manual Contents Included 2: BEFORE YOU INSTALL Location Requirements Clearance Requirements Electrical Requirements Service Line Requirements Exhaust Requirements Air-Tight Damper User-Supplied Microscope Requirements – Scope-Ready™ Package Only User-Supplied Circulator Requirements – Temp-Zone™ Package Only 3: SAFETY PRECAUTIONS Typographical Conventions General Safety Precautions...
  • Page 5 Drain Valve Installation (Optional) Exhaust Connection Microscope Installation (optional) Circulator Installation (optional) Certification 5: PERFORMANCE FEATURES Laminar Airflow Directional Airflow Cabinet Air Intake (Front Grille) HEPA Filters ULPA Filters Motor/Blower UV Lamp (optional) Scope-Ready Package (optional) Pure-Vu™ Seal Stand-Still Isolation Platform Temp-Zone Package (optional) 6: CELL LOGIC TYPE A2 OPERATING SYSTEM...
  • Page 6 Adjusting the Display Utilizing Network Connection Activating Email Alerts Adjusting Maintenance Reminders The Certification Submenu Navigating the Help Menu About Software Update via USB Thumbdrive Software Update via the Ethernet Automatic Update Notification Sensors Diagnostics Resources Notifications Timer Operation (Optional) Airflow Alert Resetting the Airflow Alert System Alarms...
  • Page 7 Loading Materials and Equipment Work Techniques Final Purging Unloading Materials and Equipment Wipe Down Shutdown 8: MAINTAINING YOUR CELL LOGIC TYPE A2 Maintenance Safety Precautions Recommended Maintenance Schedule Service Operations Resetting a Circuit Breaker Cleaning Beneath Dished Work Surface (Temp-Zone™ Only) Cleaning Beneath Dished Work Surface (Scope-Ready™...
  • Page 8 Blower and Lights not working Blower only will not start Lights only will not illuminate UV Light will not illuminate Airflow Alert activating Filter Life Gauge not at 100% when new Contamination in the work area APPENDIX A: PARTS LIST APPENDIX B: DIMENSIONS APPENDIX C: SPECIFICATIONS Power Data...
  • Page 9 This manual is written for the installer and user of this product. For detailed service, certification, or technical information, please utilize the Technical Manual located on the website labconco.com. This manual contains important operation and safety information. When you see a symbol, such as the INFO symbol to the left, pay close attention to the information provided.
  • Page 10 2: Before You Install Before you install the product, the site should be prepared for installation. Examine the location where you intend to install it. You must be certain that the area is level and of solid construction. In addition, a dedicated source of electrical power must be located within 10 feet (3 m) of the installation site for the included power cord, or maximum of 25 feet (7.5m) to utilize a longer (user-supplied), appropriately rated power cord.
  • Page 11 On 100V and 115V models, both internal electrical outlets are protected by a ground fault interrupter circuit (GFIC). Labconco does NOT recommend connecting the product’s power cord into a GFIC outlet. GFIC outlets can nuisance trip, resulting in complete removal of power to the product.
  • Page 12 Note: The use of flammable gases or solvents should be avoided in the biosafety cabinet. Open flame in the cabinet will disrupt the laminar airflow in the cabinet and may damage the HEPA filters. Flammable gases or solvents may reach explosive concentrations in the cabinet or ductwork.
  • Page 13 This will allow for proper balancing of the system. See Figure 2-5. Labconco highly recommends installing an air-tight damper above each biosafety cabinet when connected to a building exhaust system. See Air-Tight Damper information on the following pages. The air-tight damper allows for fine adjustment of the exhaust air volume provided, in order to correctly set the necessary exhaust airflow for each biosafety cabinet.
  • Page 14 The exhaust system must be capable of moving the following volumes of exhaust air at the negative pressures listed. The Airflow Volumes are the values recorded via direct measurement using a flow hood on the exhaust duct above the cabinet. The Concurrent Balance Values are measured in the exhaust duct via traverse methodology, and will always be higher due to differences in volume measurement methodologies.
  • Page 15 Air-Tight Damper Figure 2-6 BUILDING EXHAUST DUCT (NOT INCLUDED) DUCT COLLAR AIRFLOW AIR-TIGHT DAMPER ADJUSTMENT BIOSAFETY CABINET HANDLE DUCT STUB Visual appearance of biosafety cabinet and exhaust connection may vary by model. User-Supplied Microscope Requirements – Scope-Ready™ Package Only If installing a microscope, locate the Stand-Still™ Isolation Platform in a separate box shipped with the cabinet.
  • Page 16 User-Supplied Circulator Requirements – Temp-Zone™ Package Only The Temp Zone™ features a temperature controlled area on the work surface where heated or chilled samples may be transferred and kept at optimum temperature. A user- supplied circulator that continually delivers heated or chilled water at a minimum flow rate of 0.5 GPM (1.9 LPM) with typical volume of 6 liters is required and may be obtained from your laboratory supply dealer.
  • Page 17 3: Safety Precautions Before unpacking, installing, operating, maintaining, or servicing this equipment, read the following safety warnings and precautions. Avant le déballage, l’installation, le fonctionnement, l’entretien ou la maintenance de cet équipement, lire les avertissements de sécurité et les précautions d’emploi. –...
  • Page 18 – Air or components that will be very hot. BURN RISK (HIGH TEMPERATURE) Take care not to touch these defined areas. Failure to avoid these areas may result in moderate to severe injury. – Air ambiant ou RISQUE DE BRÛLURE (TEMPÉRATURE ÉLEVÉE) composant devenant très chaud.
  • Page 19 – Do not lift or move this equipment without assistance. LIFTING HAZARD – Ne pas soulever ou déplacer cet équipement sans DANGER DE LEVAGE assistance. – Magnets or magnetic field present. MAGNETIC FIELD IN USE – Présence d'aimants ou de champ CHAMP MAGNETIQUE UTILISE magnétique.
  • Page 20 Never contact moving parts with your person. Failure to avoid moving parts will result in moderate to serious injury, death, or damage to property. Ne jamais toucher les parties mobiles. Le non-respect de la consigne consistant à éviter les pièces mobiles peut entraîner des blessures graves, la mort ou des dommages matériels.
  • Page 21 If your application requires loading more than 50 lbs., contact Labconco’s Product Service Department at 800-821-5525 or 816-333-8811 for assistance.
  • Page 22 HEPA filter during installation or normal operation. If you suspect that a HEPA filter has been damaged, DO NOT use the cabinet; contact a local certification agency or Labconco at 800-821-5525 or 816-333-8811 for re- certification information. The HEPA filters in the biosafety cabinet will gradually accumulate airborne particulate matter from the room and from work performed in the cabinet.
  • Page 23 4: Installation With the installation site properly prepared, you are ready to unpack and install the equipment. This section covers how to: • Unpack and move the product • Install the product • Connect electrical service • Connect service utilities •...
  • Page 24 Note: United States Interstate Commerce Commission rules require that claims be filed with the delivery carrier within fifteen (15) days of delivery. Do not return goods without the prior authorization of Labconco. Unauthorized returns will not be accepted. If the product was damaged in transit, you must file a claim directly with the freight carrier.
  • Page 25 Note: The cabinet is very top heavy. Use caution when lifting or moving it. Labconco offers accessory base stands in a variety of configurations to suit your particular needs. If assembly of the base stand is required, the assembly instructions are packaged with the base stand.
  • Page 26 Figure 4-2 Side Panel Attachment Bolts Mounting Tab (supplied with Stand) Stand Rail DETAIL A Installation Instructions...
  • Page 27 Step 3 The front sash will not slide open yet. The sash counterweights are pinned for shipment. The Side Panels must still be removed or hinged open for this step. Locate the Support Pin and Clevis Pin on each sash counterweight. See Figure 4-3. For convenience a yellow tag and string are provided.
  • Page 28 Electrical Connection The product’s power cord is located in the Parts Box removed in the final step of Unpacking (previous section). Connect the IEC end of the power cord to the IEC connector located on the rear side of the top electrical box. See Figure 4-4. Connect the plug end of the power cord into an appropriately rated outlet (see Electrical Requirements in Section 2: Before You...
  • Page 29 Ethernet Connection When an active ethernet connection is established, the cabinet is capable of the following: • Automatically syncing the time and date • Sending emails from the cabinet when Alerts occur • Receiving notifications when software upgrade is available •...
  • Page 30 Connecting to Ethernet with a Remote Communications Board To connect the building’s ethernet to the biosafety cabinet with an optional RCB, follow the steps below: 1. If installed, remove the two phillips screws in the front of the exhaust cover. Hinge the cover up from the front and secure in place with the exhaust cover prop.
  • Page 31 Safe for use with vacuum, air, carbon dioxide, nitrogen, and argon. Not for use with water, steam or high purity gasses like oxygen and hydrogen. Contact Labconco for additional valve options.
  • Page 32 Drain Valve Installation (Optional) A drain valve assembly is provided in the Parts Box. The drain allows for removal of large amounts of liquid trapped in the area underneath the work surface. The installation of the drain valve is not required. If not installing the drain valve, this section may be skipped.
  • Page 33 Note: If the research involves the use of toxic compounds or volatile materials, contact the facility’s safety officer or Labconco to ensure that the cabinet and its exhaust system are compatible with the materials you will be working with.
  • Page 34 6. Remove the 14 screws (#6-32 x 0.25") that retain the Pure-Vu Seal. 7. Either reinstall one of the pre-cut accessory Pure-Vu Seals from Section 9 or punch the holes in the blank seal supplied and then re-install the seal. For your convenience, see Appendix E for installation of pleated Pure-Vu XL Seals used with stereoscopes requiring frequent eyepiece height adjustment of +/- 2.0"...
  • Page 35 2. Find a suitable place next to the cabinet or underneath the cabinet to place the circulator. Accessory shelves for small circulators are available from labconco.com. Larger circulators should be placed on the floor. 3. Pivot the work surface up and use the Easy-Clean Prop Rods to support the work surface.
  • Page 36 sample temperature. Furthermore, circulator settings to maintain chilled refrigerated samples may require 0.3-3.0°C colder temperatures than the desired sample temperature. Experimentation is necessary to achieve proper sample temperatures. 10. For chilled applications, the Temp-Zone work area comes with a drain line installed that can be routed to the cabinet’s drain valve, if desired.
  • Page 37 If you have any questions regarding certification agencies or help locating one, contact Labconco’s Product Service Department at (800) 821-5525 or +1 816-333-8811. Detailed information for product certification is located in the Logic Technical Manual.
  • Page 38 5: Performance Features The Cell Logic Type A2 biosafety cabinet protects items placed on the work surface, the personnel working with material inside the cabinet, and the lab environment, when operated to manufacturer’s specifications and proper aseptic techniques are employed. This protection is provided through the use of laminar airflow, HEPA filtration, careful cabinet construction, and Constant Airflow Profile (CAP) ECM motors.
  • Page 39 Directional Airflow Directional airflow also plays a key role in cabinet performance. Air is drawn into the front of the cabinet at the front grille. This “curtain” of air makes it more difficult for aerosols to escape out of the work area of the cabinet and into the outside environment. This airflow is often calculated and referred to as the Inflow Volume or Average Inflow Velocity.
  • Page 40 HEPA Filters HEPA filters are disposable, dry-type particulate filters. The filter material or media is typically made of borosilicate microfibers formed into a thin sheet, in a process similar to the production of paper. This sheet is folded, or pleated to increase its surface area. The pleats are typically held in place by beads of glue that add rigidity to the media pack.
  • Page 41 The ECM is a brushless DC motor that includes its own power supply to convert the incoming alternating current to direct current, as well as its own microprocessor to control and measure the motor’s operation. The motor utilizes Labconco’s exclusive Constant Airflow Profile (CAP) program to deliver a consistent volume of air, throughout the life of the cabinet.
  • Page 42 UV Lamp (optional) The optional UV lamp generates a primary wavelength of light of 254nm. A secondary emission is in the visible (blue) wavelength, resulting in the characteristic blue color while operating. UV light at this wavelength is biocidal, primarily by creating thymine dimers in DNA.
  • Page 43 Stand-Still Isolation Platform The Stand-Still Isolation Platform supports the microscope on the cabinet’s work surface and removes up to 94% of vertical and horizontal vibrations. ASHRAE 110 and NSF 49 testing confirms this unique elevated, aerodynamic base ensures safe airflow. Constructed of seamless Type 304 stainless steel, the isolation platform is non-porous, easy to clean, and autoclavable.
  • Page 44 6: Cell Logic Type A2 Operating System The Cell Logic Type A2 biosafety cabinet provides clear status information on the touch- screen display and user control with the keypad (Figures 6-1 & 6-2). Read this section along with Section 7: Using Your Cell Logic Type A2 to fully understand the features and controls of this product.
  • Page 45 When the glass sash is closed, the blower and light icons may change as follows: Blower Status = Reduced Speed (Night-Smart Enabled) UV Countdown Light Status = UV Light ON Timer (minutes) Display Sleep Mode The LCD display will enter a relaxed mode (screen appears black) when the blower is off.
  • Page 46 Navigating the Data Logs Menu Keypad button presses and screen touches are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. This section will cover in detail the different options available in the Data Log Screen. To access the Data Log Screen from the...
  • Page 47 • AFS Downflow (Optional) • Particle Count Status (Optional) To change what parameters are visible on the display screen, select the [Gears] (shown in the top left-hand corner of Figure 6-3). To search through individual logs by a phrase or numerical value, use the Search Function by touching...
  • Page 48 Navigating the Settings Menu Keypad button presses and screen touches are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. To access the Settings Screen from the Home Screen, press [Settings] (represented by the gear-icon) on the Menu Bar of the display. The display will change to the Settings Screen (see Figure 6-4).
  • Page 49 Valve features. If the Gas Valve is factory installed, this toggle will be enabled. • – The default cabinet name is ‘Labconco Biosafety Cabinet’. To alter Device Name this name, touch the current device name and use the keyboard to enter a new name.
  • Page 50 icon to activate. The description under Open Sash should read ‘Start [Blower On] Blower’. If [Blower Off] is selected, the blower must be manually started from the keypad. If you want the cabinet Lights to illuminate every time the sash is opened from the closed position, touch the [Light On] icon to activate.
  • Page 51 Adjusting Sound Touch [Sound]. The audible tones for various conditions or actions can be modified and/or silenced in the sounds sub-menu as listed below. To save any changes, touch [Save]. To exit without changes, touch [Back]. • – The ON/OFF toggle enables or disables audible touch of the Touch Sounds screen.
  • Page 52 • – Enabled/disabled for areas observing Daylight Daylight Savings (ON/OFF) Savings Time (DST). Selecting the Units of Measure Touch [Units]. This screen allows the user to change the units of measure for various sensors. Touch the desired drop-down field, and make selection: •...
  • Page 53 Adjusting the Display Touch [Display]. Provides settings for the display screen functionality. • – Adjust the display brightness by dragging the bar left/right. Brightness Slider • – If enabled, the screen will go to sleep (low power Screen Timeout Function mode) when no screen touches have been detected for the allotted time (defined in the Screen Timeout...
  • Page 54 Activating Email Alerts Touch [Alerts]. If a valid network connection has been established and Network settings have been properly configured, (via the Network screen) alerts can be emailed to selected users, by entering the appropriate email address(es) and selecting the type of alerts to be sent to each email address.
  • Page 55 To add a user’s email to receive e-mail alerts from the cabinet: • Figure 6-9 Touch the Plus icon at the lower right corner of Figure 6-9 to add an email address. • Enter your e-mail address, touch [DONE]. To test the user’s email: •...
  • Page 56 is replaced, select [SERVICE COMPLETE] and input the name of the servicer, date and event in the Certifications Records pop-up. The reminder time will start over. If [RESET] is selected from the maintenance menu, the user will still have to input their name, date, and event into the Certifications Records pop-up before the reminder timer...
  • Page 57 • – Displays the current sensor reading in the selected unit of measure. Sensors • – Used to test the cabinet operation/components after installation or Diagnostics should a problem occur. • – Provides consumable information. Resources • – Provides an event history, similar to the Data Log, excluding the Notifications routine operation data.
  • Page 58 Software Update via USB Thumbdrive To update the software via USB, you must first download the latest version, available at Labconco.com to a USB thumbdrive. • The blower must be shut off prior to updating. • With the proper software file on a thumbdrive, insert it into the USB Port on the front of the cabinet to the right of the Display.
  • Page 59 • At the Upgrade screen touch [CONFIGURE] and select Automatically check for updates and [OK]. Once enabled, the Upgrade Available Screen will popup when new software becomes available. Sensors This screen contains a list of all sensors installed on the Cell Logic. The Sensors Screen displays the current sensor reading in the selected unit of measure.
  • Page 60 Diagnostics Diagnostics Screen is used to test Cell Logic Figure 6-14 operation/components after installation or should a problem occur. Once the screen is accessed, all BSC components will power off (blower will stop, etc.). To export diagnostic test results, insert a flash drive (formatted to FAT32) in the USB port on the front of the cabinet, touch [OK]...
  • Page 61 Timer Operation (Optional) There is a timer option that can be enabled and disabled by a setting in the Configuration Figure 6-16 Screen. The timer counts down from the Play/Pause Timer Value set point selected and chimes once the time is zero. To adjust the status of the timer, see Settings>Configuration of this...
  • Page 62 Figure 6-17 Look to identify the cause of the airflow disruption, and remove the blockage or return the work surface to its proper position. When a blockage of the airflow occurs, the cabinet’s blower automatically increases its speed to maintain constant volume airflow. This is a protective feature; however, if the disruption is significant (for example blocking the entire front grille) it will not guarantee product or personnel protection remains during the significant blockage event.
  • Page 63 Power Loss Alarm The cabinet has lost power. See Figure 6-18. Press [OK] on the keypad to acknowledge that a power loss occurred. Figure 6-18 Note: This alarm will activate any time power is cycled, including turning the System Reset Switch (see Figure 7-2) off and back on. Sash Height Alarm The sash is not at the proper operating height when the blower is on.
  • Page 64 Memory Failure The internal memory storage has failed. The calibration settings may be compromised. Contact Service before use. Press [OK] on the keypad to acknowledge that a memory failure has occurred. Figure 6-20 DO NOT USE THE CABINET UNTIL THE PROBLEM HAS BEEN CORRECTED. Blower Failure Alarm The blower motor has failed, or the motor and display circuit board are not communicating properly.
  • Page 65 The previous Alarms (Power Loss, Sash Height, Memory Failure, and Blower Failure) can occur on any Cell Logic Type A2 cabinet whether it is operating with or without an exhaust connection. The following Alarms will only occur on the Cell Logic Type A2 cabinet when operating with the optional Ventus II canopy connection, as these alarms are only related to building exhaust problems.
  • Page 66 7: Using Your Cell Logic Type A2 This section details the functional features and proper techniques for safely and efficiently using the Cell Logic Type A2 biosafety cabinet. Feature Overview Figure 7-1 illustrates key features and components of the product. Figure 7-1 Exhaust Cover Reset Switch and Breakers...
  • Page 67 System Reset Switch The system reset switch removes power from the control board and microprocessor. It is located on the top face of the electrical box on the rear, right side of the product. See Figure 7-2. This switch will NOT remove all electrical power from the product. For service operations, always disconnect the main electrical connection prior to removing service panels.
  • Page 68 Keypad The keypad of the cabinet is shown in Figure 7-3. Take a moment to familiarize yourself with the buttons, their locations and functions. Also familiarize yourself with the display located on the right side wall. The display will report system functions, such as filter capacity, timer displays, alarm or error messages, as well as icons that illuminate when cabinet functions such as the light and blower are operational.
  • Page 69 Sash Operation The counterbalanced, anti-racking sash mechanism requires only a few pounds of force to move the sash up or down. You can open or close the sash smoothly with one or two hands positioned on either handle. The sash position alarm and safety interlock system senses the sash position and acts appropriately.
  • Page 70 Vacu-Pass Cord & Cable Portal (optional) The Vacu-Pass allows for passage of a cord, cable, or tube from within the product. The pass-through provides a sealed plug, and the plug housing is maintained under negative pressure to safely pass cords through the right side wall of the product. Not all models are configured with Vacu-Pass ports, if your model does not contain this option, this section may be skipped.
  • Page 71 Working in the Cabinet Working in the Cell Logic Type A2 biosafety cabinet requires preparation, planning, and an understanding of aseptic technique to work safely. The steps below represent the minimum requirements before, during, and after working in a biosafety cabinet. Consult your Health &...
  • Page 72 Wipe Down 1. Raise the sash to its full open position (approximately 22.5 inches or 571 mm). Mute the alarm by pressing [OK/MUTE]. 2. Wipe down the interior surfaces of the cabinet with 70% ethanol, or a suitable disinfectant, and allow to dry. Loading Materials and Equipment 1.
  • Page 73 2. Periodically lift the work surface and wipe down the area beneath it. 3. Inspect and clean the towel catch located at the rear of the work area, beneath the work surface. 4. Dispose of rubber gloves appropriately, and have lab coat laundered properly. 5.
  • Page 74 8: Maintaining Your Cell Logic Type A2 This section details normal maintenance required for optimal operation of the Cell Logic Type A2 biosafety cabinet. This section does not cover service operations beyond normal maintenance, nor does it cover annual airflow certification procedures. These advanced sections are found in the Logic Technical Manual.
  • Page 75 Recommended Maintenance Schedule Table 8-1 Maintenance Frequency Activity Weekly Monthly Annually Disinfect interior surfaces (with • • • suitable chemical disinfectant) Wipe down interior surfaces after • • • contact time elapsed with 70% alcohol solution Clean sash glass and UV lamp with •...
  • Page 76 Service Operations The operations in this section provide instructions to maintain the Cell Logic Type A2 for normal consumable replacement, and access to parts in accordance with the Recommended Maintenance Schedule. This section does not cover service operations beyond normal maintenance, nor does it cover annual airflow certification procedures. These advanced sections are found in the Logic Technical Manual.
  • Page 77 Cleaning Beneath Dished Work Surface (Temp-Zone™ Only) To lift or remove the dished work surface, reference Figure 7-1 for part identification and follow these steps. 1. Turn the cabinet blower on. 2. Lift the front edge of the work surface up by grasping the knob at either front corner.
  • Page 78 4. With the work surface front lifted, locate the wire-formed prop rod, and rotate it up to rest against the back flange of the work surface support bracket. Reference Figure 8-3. 5. Carefully lower the work surface onto the prop rod and release when stable. Do not release the work surface if the prop rod is not fully in place against the support bracket.
  • Page 79 Front Grille Removal Before beginning, the dished work surface must be securely lifted or removed, as described previously. Reference Figure 7-1 for parts identification. 1. If not already on, turn the cabinet blower on. 2. Grasp the front grille with two hands, one on the inside edge and one on the outside edge.
  • Page 80 Figure 8-5 To reinstall the panel, reverse these steps, ensuring that the plastic pins in the top corners of the front dress panel are properly engaged in the top of each corner post. Changing the LED Lamps Before proceeding, make sure all electrical power has been removed from the cabinet by disconnecting the main electrical connection, which is the power cord.
  • Page 81 3. Remove both Socket Caps (on the right end of each LED lamp) by pulling each Socket Cap straight off the right end of the lamp one at a time (Figure 8-7). Figure 8-7 Spring Clip (2 per end) Note Dead Band (on LED Lamp) Socket Caps (2)
  • Page 82 6. When reinstalling the Left End Cap, the pins on each LED Lamp must align rotationally with the Left End Cap. This ensures the dead band stripe is positioned correctly for maximum cabinet lighting. Accessing Beneath the Exhaust Cover To lift or remove the exhaust cover, reference Figure 7-1 for part identification and follow these steps.
  • Page 83 2. Hinge the cover up from the front using the lift slot. 3. If full removal is not needed, Skip to step 5. To remove the exhaust cover, pull the slightly lifted exhaust cover forward, until the hinges (reference Figure 8-10) of the cover are free from the cabinet.
  • Page 84 2. Remove the towel catch by pivoting the bottom out toward you, as shown in Figure 8-11; it is spring loaded, and you will feel some resistance. Note the orientation of the towel catch during removal. 3. Surface decontaminate the towel catch before removing it completely from the biosafety cabinet.
  • Page 85 Changing the Optional UV Lamp The UV Lamp is an optional feature and may not be found on all models. THE UV LAMP IN THIS PRODUCT CONTAINS MERCURY Manage in accordance with local disposal laws. DO NOT place lamps in trash. Dispose as a hazardous waste.
  • Page 86 2. Seal the exhaust outlet with plastic sheeting. 3. Unplug the cabinet. 4. Ensure that the cabinet will not be moved or disturbed while being stored.
  • Page 87 Cell Logic Type A2 biosafety cabinet. IV Bar The IV Bar can be field installed on any size Cell Logic A2 biosafety cabinet. The bar allows for easy hanging of IV bags used inside the biosafety cabinet. Catalog numbers are listed in Table 9-1 below.
  • Page 88 Electric Hydraulic Lift Base Stands (with Leveling Feet) These base stands offer infinitely adjustable height between 27.7 and 39.4 inches (702 – 1000 mm), providing a biosafety cabinet work surface height of 30.5 to 42.2 inches (775 – 1071 mm). The height is adjusted by an electric pump that drives the hydraulic legs of the stand.
  • Page 89 SoLo Electric Hydraulic Lift Base Stands These base stands permit the cabinet to be lowered enough to transport it through a standard doorway as low as 76.5 inches (1943 mm). They offer infinitely adjustable height up to 33.5 inches (851 mm), providing a cabinet work surface height up to 36.0 inches (914 mm).
  • Page 90 Telescoping Base Stands (Non-Welded) These stands are included with some product models, or available separately. The base stand catalog numbers are listed in Table 9-7 below. An optional caster wheel kit is available for converting leveling feet to casters (catalog number 5190100). Table 9-7 Base Stand with Base Stand with...
  • Page 91 15.0” (38.1 cm) 4027815 16.0” (40.6 cm) 4027816 17.0” (43.2 cm) 4027817 16.0” +/- 2.0” (40.6 cm +/- 5.1 cm)* 4027811* *Pure-Vu XL Seal with pre-punched optics holes For additional accessories, check Labconco.com or reference the latest version of the Logic Brochure.
  • Page 92 10: Troubleshooting This section details common troubleshooting for your biosafety cabinet. Blower and Lights not working...
  • Page 93 Blower only will not start...
  • Page 94 Lights only will not illuminate...
  • Page 95 UV Light will not illuminate...
  • Page 96 Airflow Alert activating...
  • Page 97 Filter Life Gauge not at 100% when new...
  • Page 98 Contamination in the work area...
  • Page 99 Appendix A: Parts List Table A-1 and Figure A-1 indicate the location and catalog numbers for the following service, and replacement accessory components. Table A-1 Quantity Item Catalog Number Description Required 3838505 Exhaust HEPA Filter 3 Foot Model 3838501 Exhaust HEPA Filter 4 Foot Model 3838502 Exhaust HEPA Filter 5 Foot Model 3838503...
  • Page 100 Figure A-1...
  • Page 101 Appendix B: Dimensions Table B-1 and Figure B-1 indicate the product dimensions. All dimensions shown in inches (centimeters). Table B-1 Width Width 36.5 42.4 60.5 66.4 26.8 14.5 (36.8) (92.7) (107.7) (153.7) (168.7) (68.1) 48.5 54.4 19.9 72.5 78.4 32.9 (123.2) (138.2) (50.5)
  • Page 102 Appendix C: Specifications Power Data Table C-1 Normal Operating Power Width Catalog Number (Watts) 3’ 3x239xxx2 158 W 4’ 3x249xxx2 193 W 5’ 3x259xxx2 238 W 6’ 3x269xxx2 385 W 1 Values are for new product with clean filters (light and blower on), and may vary +/- 10% Motor Specifications Table C-2 Product Size...
  • Page 103 Environmental Conditions • Indoor use only • Ambient temperature range: 41° to 104°F (5° to 40°C) • Maximum relative humidity: 80% for temperatures up to 88°F (31°C), decreasing linearly to 50% relative humidity at 104°F (40°C) • Main supply voltage fluctuations not to exceed ±10% of the nominal voltage •...
  • Page 104 The next 5 digits are the sequence of production, and the letter following the serial number is the revision level of the cabinet. 2. Each motor must be programmed by Labconco for the appropriate width cabinet. 3. THIS PRODUCT USES DIRECT DRIVE T8 LED LAMPS INSTEAD OF FLUORESCENT LAMPS. THERE IS NO BALLAST;...
  • Page 105 Appendix E: Installation Guide: Pure-Vu™ Seal and Stand-Still™ Isolation Platforms For proper installation of the Pure-Vu™ Seal and Stand-Still™ Isolation Platforms on the Cell Logic biosafety cabinet with Scope-Ready™ Package, reference the following figures and instructions. Figure E-1 also shows the proper placement of the Stand-Still Isolation Platform. Figure E-1...
  • Page 106 Figure E-2 is an aid to show the Pure-Vu Seal fully installed with the eyepieces extended and sealed. Figure E-2 also shows the microscope moved forward into proper position on the Stand-Still Isolation Platform. Figure E-2...
  • Page 107 Stereoscopes with forward extending bases and frequent eyepiece height adjustment typically require the selection of a Pure-Vu XL Seal and Stand-Still XL Isolation Platform. Figures E-3 through E-10 are an aid in setting up the pleated Pure-Vu XL Seal. Figures E-11 and E-12 show typical complete installations of stereo microscopes and proper placement of the Stand-Still XL Isolation Platform.
  • Page 108 3. Per Figure E-5, form the second pleat and secure with transparent tape. Figure E-5 4. Per Figure E-6 and Figure 4-8, place the Outer Aerodynamic collar over the Pure-Vu XL Seal and lightly secure in place with the 14 Phillips mounting screws. Do not tighten.
  • Page 109 6. Per Figure E-8, move the microscope forward through the holes in the Pure-Vu Seal and install each eyepiece. A tight seal should be formed around each eyepiece. Figure E-8 7. Figure E-9 shows the finished installation. Figure E-9 8. Per Figure E-10, adjust the scope eyepiece height for proper focus. Figure E-10...
  • Page 110 9. Figure E-11 shows the completed installation of the Pure-Vu XL Seal and Stand- Still XL Isolation Platform for one scope manufacturer. The Pure-Vu XL Seals extend 5.5" below the aerodynamic collar. Figure E-11...
  • Page 111 10. Figure E-12 shows a different installation of the Pure-Vu XL Seal and Stand-Still XL Isolation Platform for another scope manufacturer. Figure E-12 11. Refer to Section 9: Accessories to order Pure-Vu Seals and Stand-Still Isolation Platforms and use Section 4 Appendix E as an aid for proper setup.
  • Page 112 Pure-Vu™ Template For the optics cutout locations on various pre-cut Pure-Vu Seals by Catalog Number, see Figure E-13. Note: Not to scale, see Figure E-14 for a 1:1 scale drawing of these optics hole locations. The 1:1 scale drawing allows you to cut out the desired optics holes in the provided blank Pure-Vu Seal.
  • Page 113 Figure E-14...
