Ethernet Connection

When an active ethernet connection is established, the cabinet is capable of the
following:
• Automatically syncing the time and date
• Sending emails from the cabinet when Alerts occur
• Receiving notifications when software upgrade is available
• Upgrading the software via ethernet connection
If your cabinet has the optional Remote Communications Board (RCB), skip to the sub-
heading 'Connecting to Ethernet with a Remote Communications Board'. If the optional
board is not installed, see the sub-heading below.

Connecting to Ethernet with a Standard Cell Logic Display

To connect the building's ethernet to the standard biosafety cabinet, follow the
steps below:
1. Locate the right-hand side panel and remove the two Phillips screws
securing the panel in place.
2. Swing the front of the panel away from the cabinet. If needed, lift it straight
up to remove the panel from the cabinet.
3. Locate the display assembly. There will be an ethernet port on the right
edge of the assembly. Reference Figure 4-5.
4. Insert the ethernet cable into the port.
5. Safely route the cable so no pinching occurs when the side panel is
reinstalled.
Ethernet
Port
DETAIL PORT

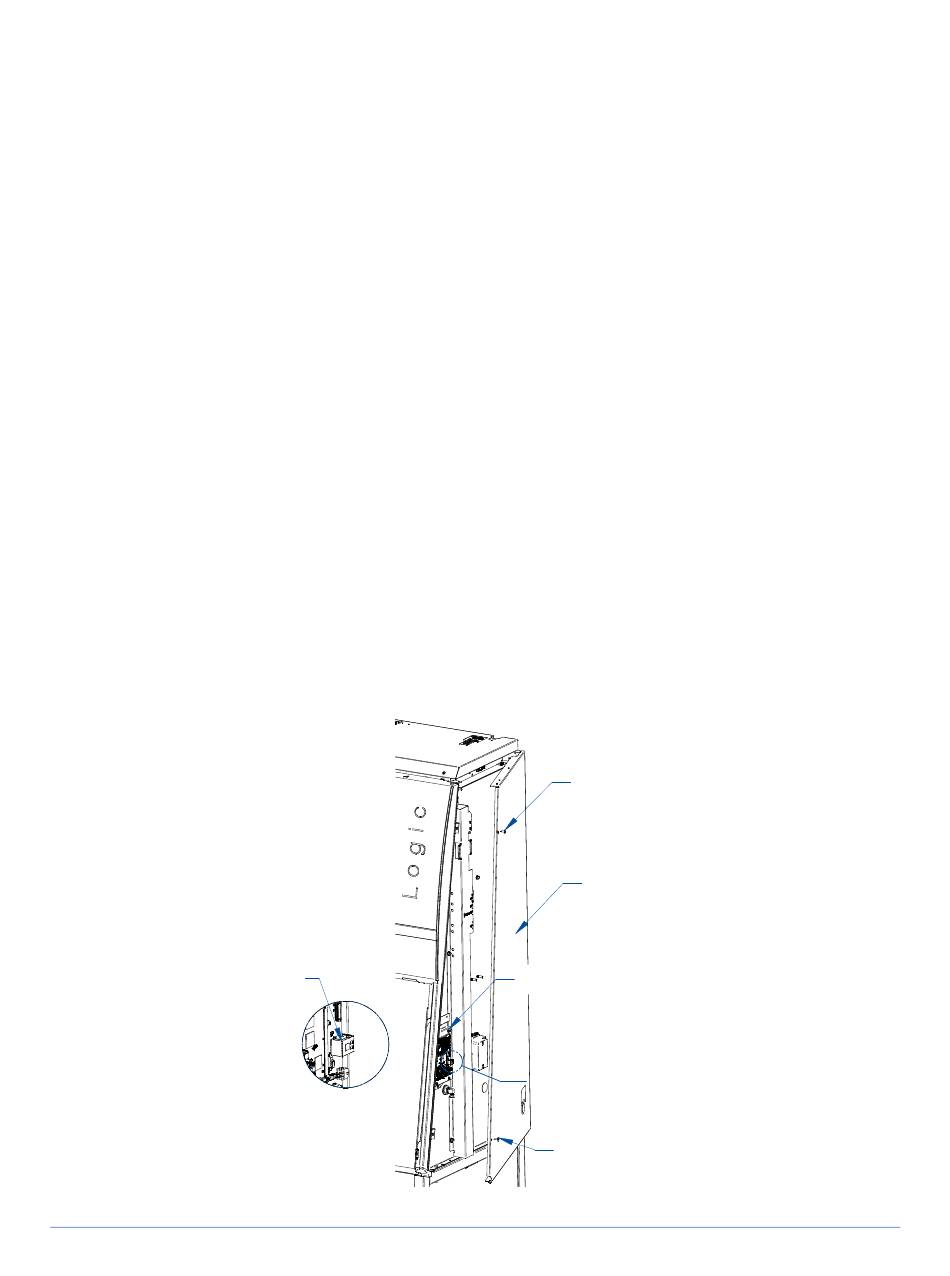

Figure 4-5
Remove Screw
Right-hand
Side Panel
Display Assembly
PORT
Remove Screw
29
