6. When reinstalling the Left End Cap, the pins on each LED Lamp must align
rotationally with the Left End Cap. This ensures the dead band stripe is
positioned correctly for maximum cabinet lighting.

Accessing Beneath the Exhaust Cover

To lift or remove the exhaust cover, reference Figure 7-1 for part identification and
follow these steps.
Tools Required:
• #2 Phillips Screwdriver
It is recommended to utilize at least two (2) persons to remove the exhaust cover,
particularly for a 5-ft or 6-ft model. The exhaust cover is heavy. Take care to use safe
lifting practices, and to set the panel where it cannot fall over while uninstalled from the
cabinet.
If servicing the cabinet, make sure all electrical power has been removed from the
cabinet by disconnecting the main electrical connection, which is the power cord. To
scan the Exhaust HEPA Filter, the cabinet will need to be reconnected to power and
with the blower ON.

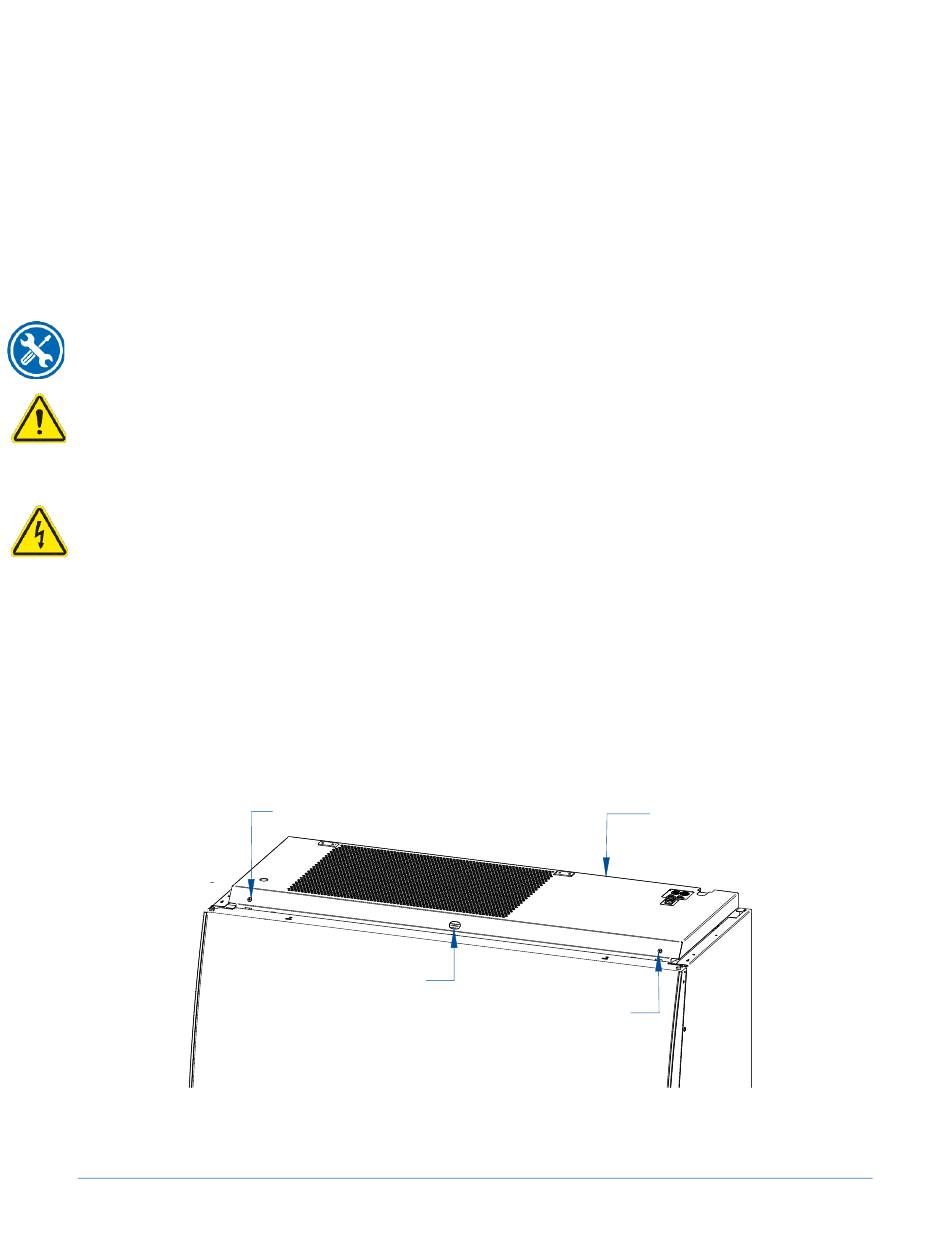

1. Remove the two phillips screws in the front of the cover shown in Figure 8-9.
Remove Screw
Lift Slot
Remove
Screw
82
Figure 8-9
Exhaust
Cover
