Drain Valve Installation (Optional)

A drain valve assembly is provided in the Parts Box. The drain allows for removal of
large amounts of liquid trapped in the area underneath the work surface. The installation
of the drain valve is not required. If not installing the drain valve, this section may be
skipped.
Note: The work surface is heavy. Use caution when handling it.
1. Lift and remove the work surface by lifting on the knobs at the front of the work
surface. Locate the cover sealed over the drain mounting holes.
2. Using a putty knife, remove and discard the stainless steel cover that is sealed over
the drain mounting holes. Scrape out remaining sealant around the holes.
NOTE: The drain valve assembly attaches to the underside of the cabinet bottom.
3. Apply a light coating of silicone sealant (not provided) to the mounting surface of the

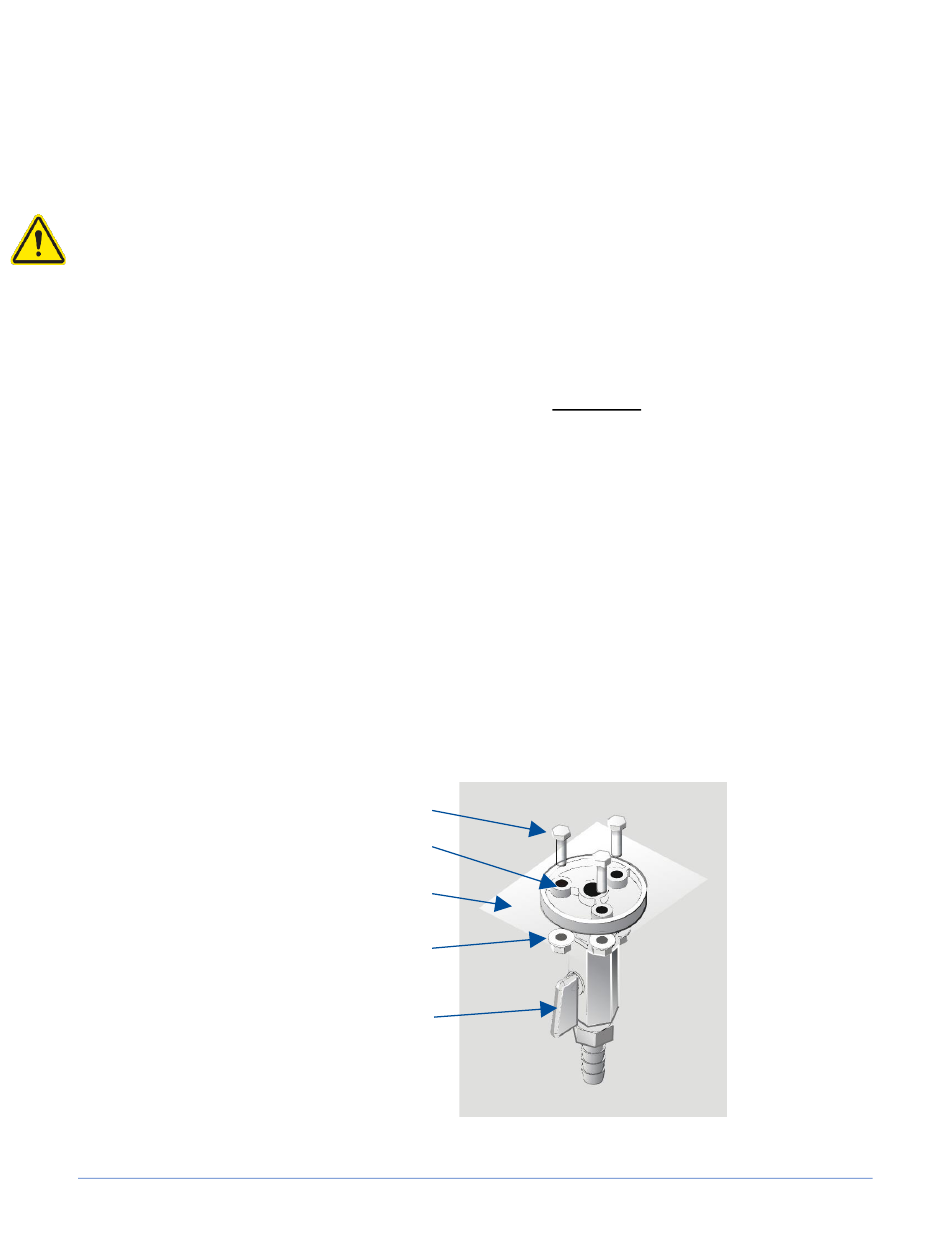

drain flange. Attach the drain flange under the bottom of the cabinet as shown in
Figure 4-8. Wipe off any excess sealant from the cabinet bottom. Ensure that the
center drain hole is unobstructed.
4. Secure the drain assembly with the hardware provided. Tighten all hardware.
5. Make sure the drain valve is in the closed position.
6. Reinstall the work surface.
7. Allow the silicone sealant to cure for at least eight hours before exposing it to liquid.
Screws (3)
Drain flange
Cabinet bottom
Nuts (3)
Drain valve
32
Figure 4-8
