4. With the work surface front lifted, locate the wire-formed prop rod, and rotate it up
to rest against the back flange of the work surface support bracket. Reference
Figure 8-3.
5. Carefully lower the work surface onto the prop rod and release when stable. Do
not release the work surface if the prop rod is not fully in place against the
support bracket.
The dished work surface on a Temp-Zone model can also be secured in an elevated
position via the Easy-Clean™ prop rod system. Reference Figure 4-10.
Cleaning Beneath Dished Work Surface (Scope-Ready™ Only)
To remove the dished work surface, reference Figure 7-1 for part identification and
follow these steps.
1. Turn the cabinet blower on.
2. Lift the front edge of the work surface up by grasping the knob at either front
corner.
3. To remove the work surface, pull the work surface straight out, letting the rear
edge rest on the center support underneath the work surface.
If removing the dished work surface from the cabinet, the work surface must be
thoroughly decontaminated before removing it from the cabinet.
To reinstall the dished work surface, rest the bottom of the work surface on the center
support while pushing it back into the cabinet. Be sure to engage the tabs on the back
corners of the work surface with the slots on the rear wall of the work area.
78

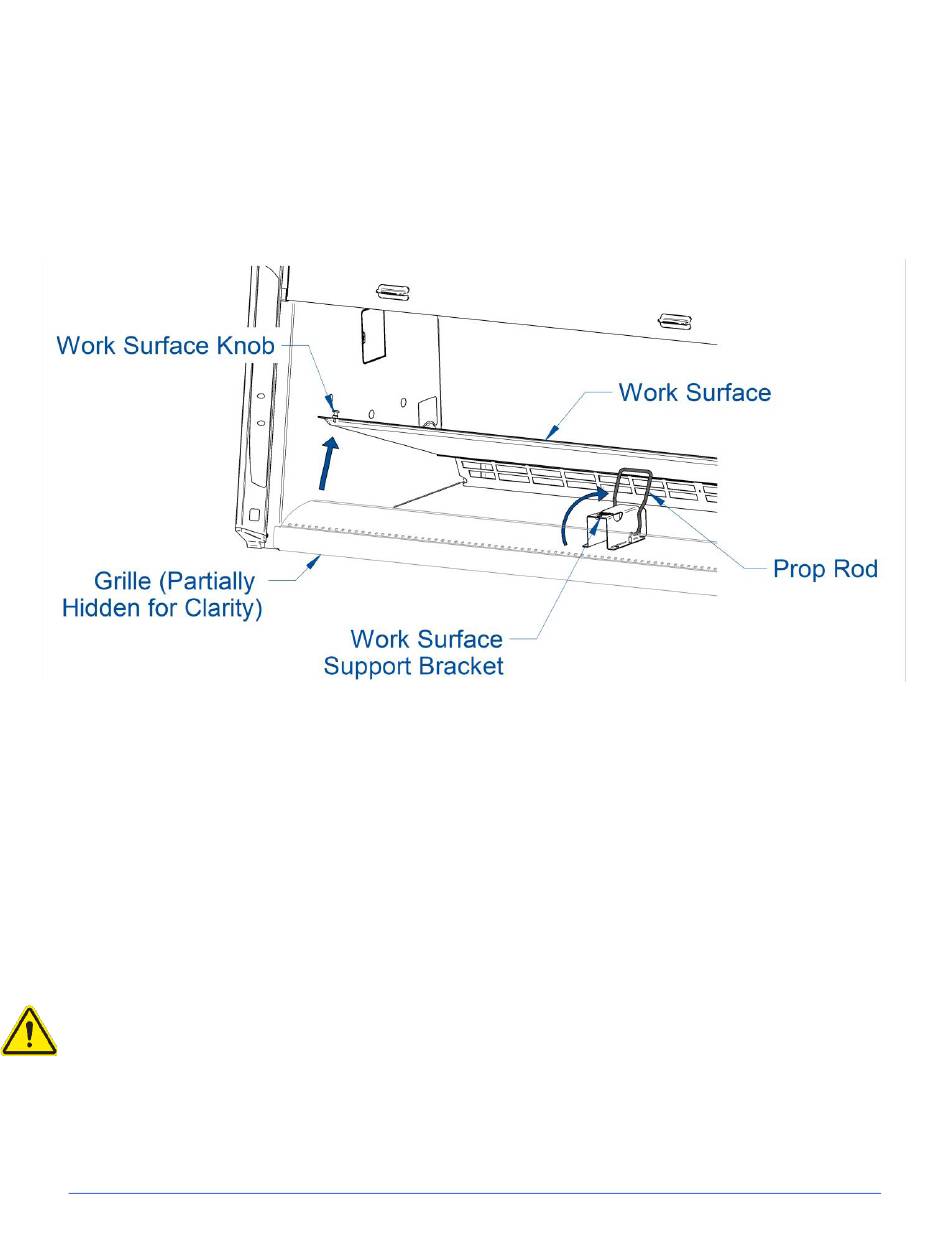

Figure 8-3
