Pure-Vu™ Template

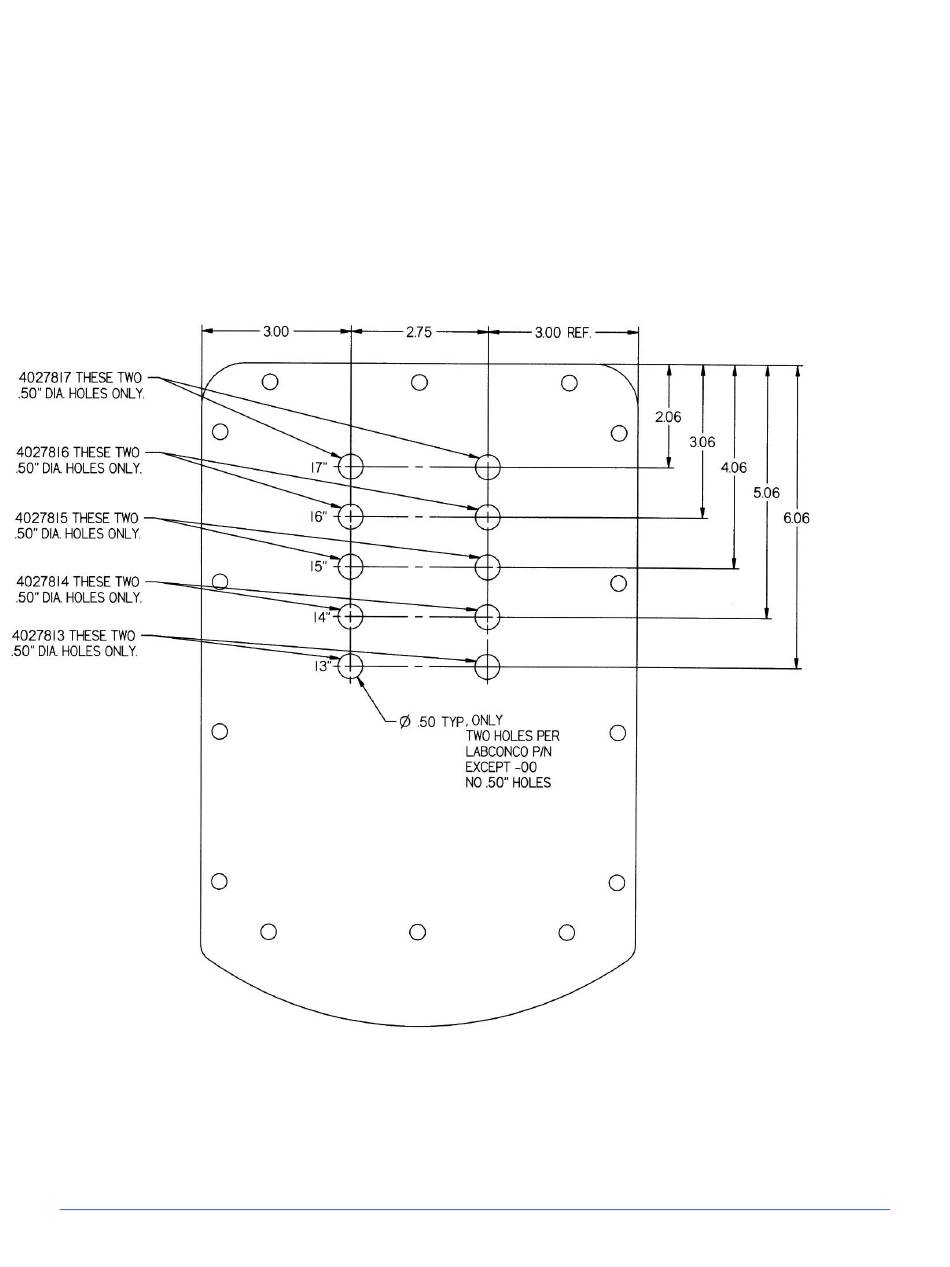

For the optics cutout locations on various pre-cut Pure-Vu Seals by Catalog Number,

see Figure E-13.

Note: Not to scale, see Figure E-14 for a 1:1 scale drawing of these optics hole

locations. The 1:1 scale drawing allows you to cut out the desired optics holes in the

provided blank Pure-Vu Seal.

Figure E-13

112
