Diagnostics

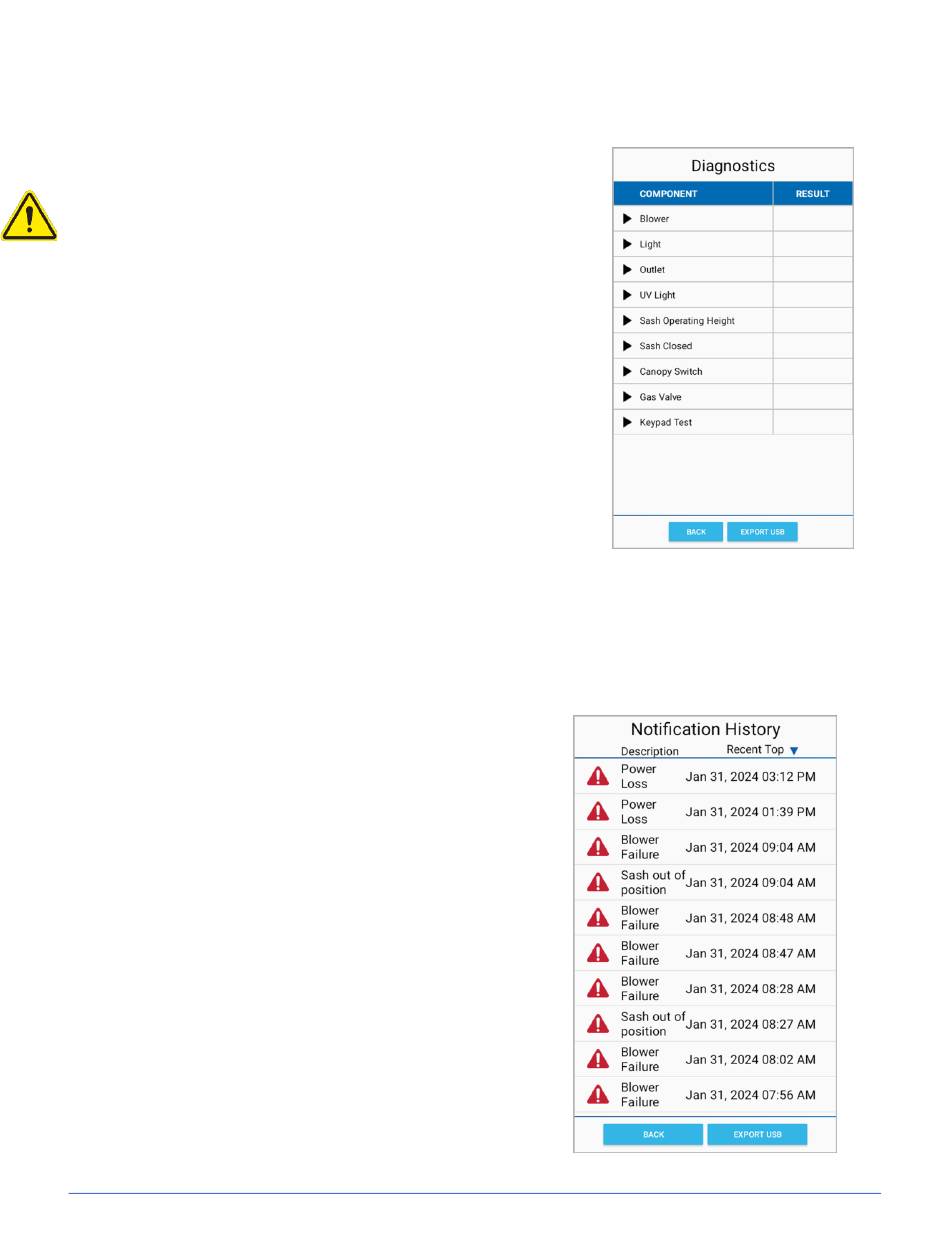

The Diagnostics Screen
operation/components after installation or should a
problem occur.
Once the screen is accessed, all BSC components will
power off (blower will stop, etc.).
To export diagnostic test results, insert a flash drive
(formatted to FAT32) in the USB port on the front of the
cabinet, touch [OK]
flash drive and touch
6-14) to generate a file that contains the following
information:
•
Diagnostics – Results of the last Diagnostics
test(s) run
•
Certification Records – All
•
Airflow Test Grid Data – All data including date
•
Lifetime Counts – All
•
Reminder Hours (Set Point and Current) – All

Resources

The Resources Screen

Notifications

The Notification History Screen
similar to the Data Log, excluding the routine
operation data (i.e., Light status, Blower in Night-
Smart, etc.). Notifications descriptions are listed
with the date and time of the event's occurrence
and can include alarms, alerts, reminders, and
other serviceable information. The history can be
sorted for the user's convenience by most recent
first, most recent last, and alphabetically by
touching the drop-down arrow above the
occurrence column. All
exported to a flash drive by touching
USB]. Reference Figure 6-15.
is used to test Cell Logic
to allow the cabinet access to the
[EXPORT USB] (reference Figure
provides consumable part number information.
provides a history,
Notification History
[Export
can be
60
Figure 6-14
Figure 6-15
