To reinstall the panel, reverse these steps, ensuring
that the plastic pins in the top corners of the front
dress panel are properly engaged in the top of each
corner post.

Changing the LED Lamps

Before proceeding, make sure all electrical power has been removed from the cabinet
by disconnecting the main electrical connection, which is the power cord.
This product uses only LED direct drive lighting. Do NOT install fluorescent bulbs.
1. Remove the dress panel as noted in Figure 8-4.
2. Locate the Left End Cap that aligns both LED lamps (Figure 8-6), remove the
Left End Cap by pulling it away from the lamp ends.

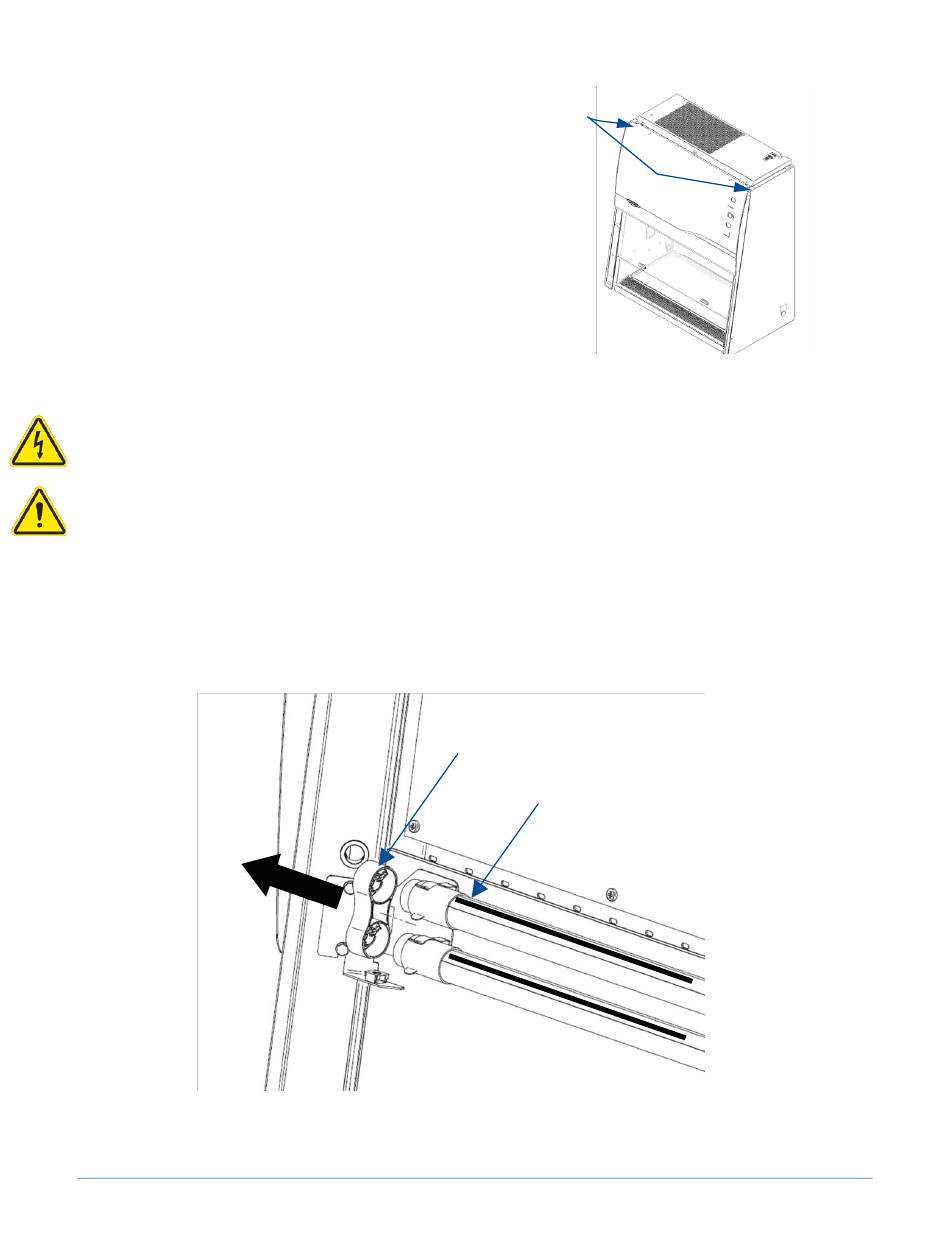

Figure 8-6
Left End Cap
LED Lamps (2)
80
Figure 8-5
