Connecting to Ethernet with a Remote Communications Board
To connect the building's ethernet to the biosafety cabinet with an optional RCB,
follow the steps below:
1. If installed, remove the two phillips screws in the front of the exhaust
cover. Hinge the cover up from the front and secure in place with the
exhaust cover prop. See
Exhaust Cover for more detailed instructions.
2. Locate the electrical control box on the top of the unit.
3. Locate the ethernet port on the side of the box, closest to the center of the
cabinet (reference Figure 4-6).
4. Insert the ethernet cable into the port.
5. Safely route the cable so no pinching occurs when the exhaust cover is
reinstalled.
Remove Screw
Exhaust Cover Prop
Once connected to the ethernet port on the cabinet, see the Utilizing Network
Connection sub-section of
Section 8,
Exhaust Cover
Section 6.
sub-section Accessing Beneath the
Remove Screw
PORT
DETAIL PORT
30

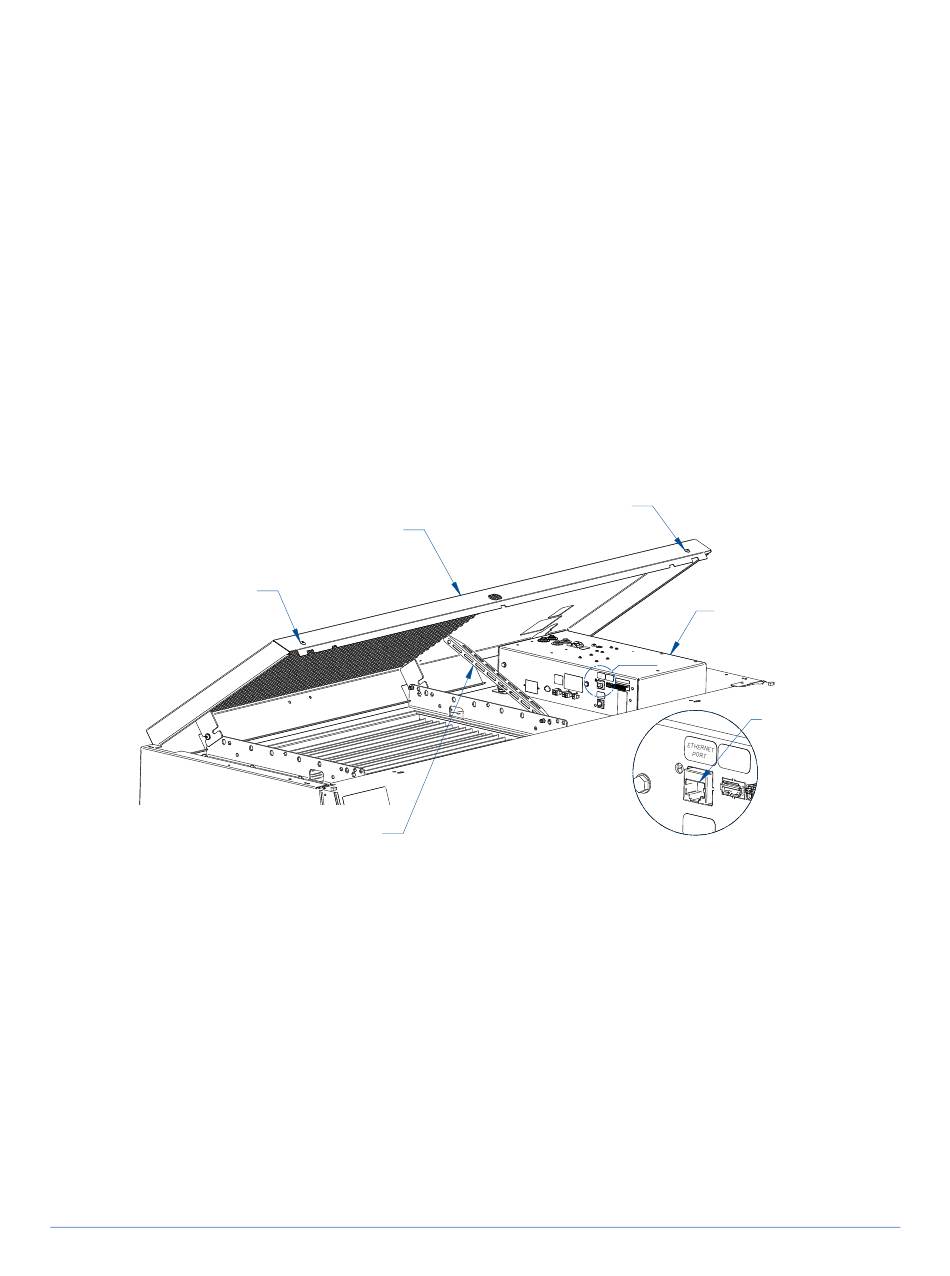

Figure 4-6
Electrical
Control Box
Ethernet
Port
