3. Remove both Socket Caps (on the right end of each LED lamp) by pulling each
Socket Cap straight off the right end of the lamp one at a time (Figure 8-7).
Spring Clip
(2 per end)
Note Dead Band
(on LED Lamp)
4. Pull each LED Lamp straight toward you to release the lamp from the two Spring
Clips holding it in place (Figure 8-7). Note the rotational position of the old LED
lamps (there is a dead band stripe that will need to be oriented the same when
reinstalling the new LED Lamps).
5. Install the new LED Lamps by reversing the removal procedure. Take care to
look at both ends of the new LED Lamps. One end is labeled with a '+' & '-' and
'L' & 'N' (Figure 8-8). This end of the new LED Lamp must go to the right, and is
inserted into the Socket Cap.

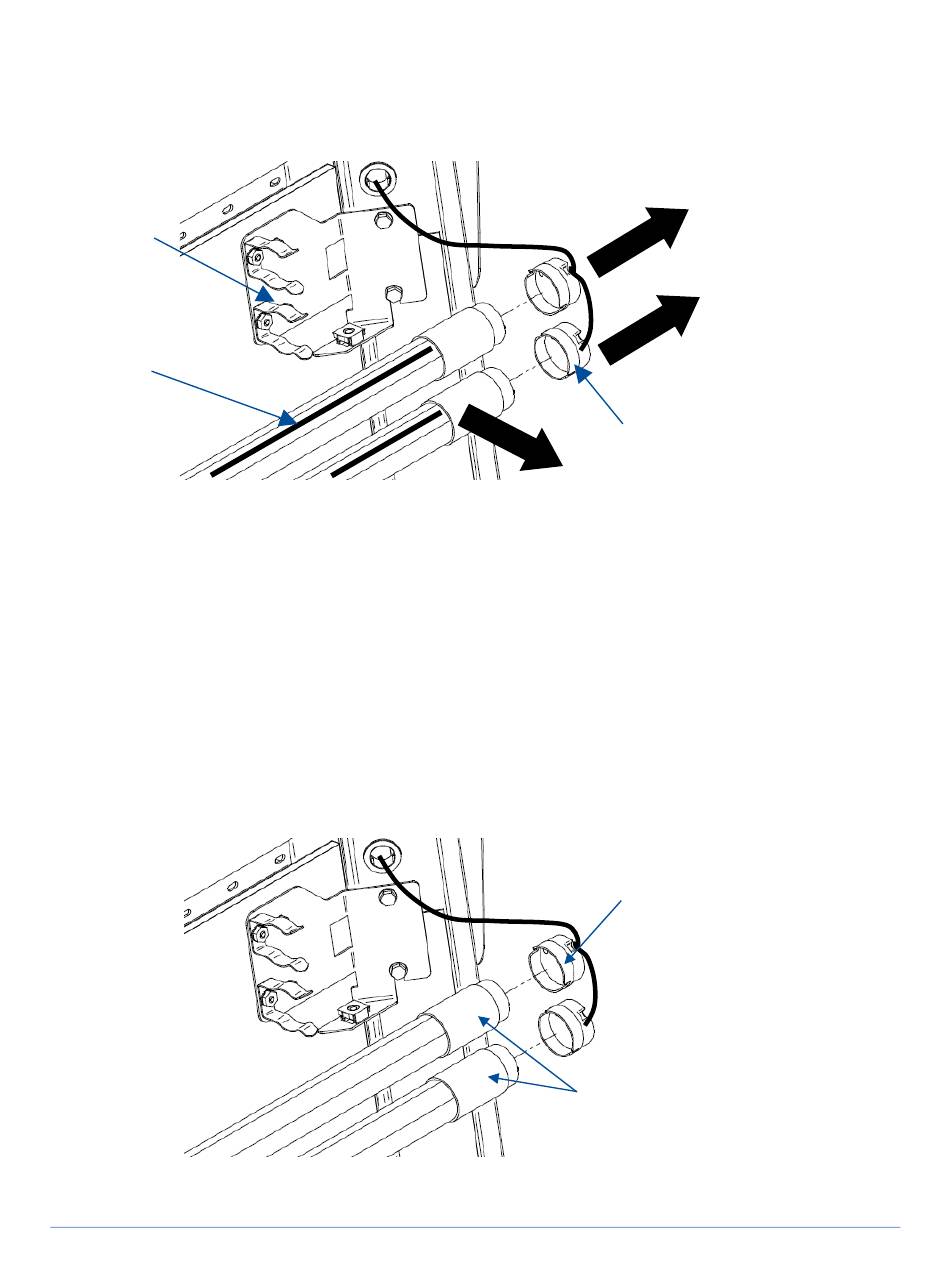

Figure 8-7
Socket
Caps (2)
Figure 8-8
Socket
Caps (2)
LED Lamp End
with markings:
L(+) and N(-)
