Step 3
The front sash will not slide open yet. The sash counterweights are pinned for shipment.
The Side Panels must still be removed or hinged open for this step. Locate the Support
Pin and Clevis Pin on each sash counterweight. See Figure 4-3. For convenience a
yellow tag and string are provided. Locate each yellow tag on the front of the product,
and follow the yellow string to each Clevis Pin. Remove the Clevis Pin (also referred to
as a Cotter Pin), then pull the Support Pin toward the rear of the product until it is free.
You will hear the counterweight drop a short distance when the Support Pin is removed.
Discard the Tags, String, and Pins.
Yellow string
(to left-end Pin)
Parts Box
Replace or close each Side Panel and secure the panels with two screws per panel.
Raise the front sash. Lift the front edge of the stainless steel work surface, locate and
retrieve the Parts Box. See Figure 4-3. The following items are located inside this box.
• User's manual thumb drive
• Drain valve assembly and fasteners
• Power cord
• Support Bolt with Locking Nut (see installation instructions for Stand if ordered)
• Punch Kit (for Scope-Ready™ Packages Only)
• Pure-Vu™ Seal & XL Pure-Vu™ Seal (for Scope-Ready Packages Only)
Yellow
String
Same on opposite end
27

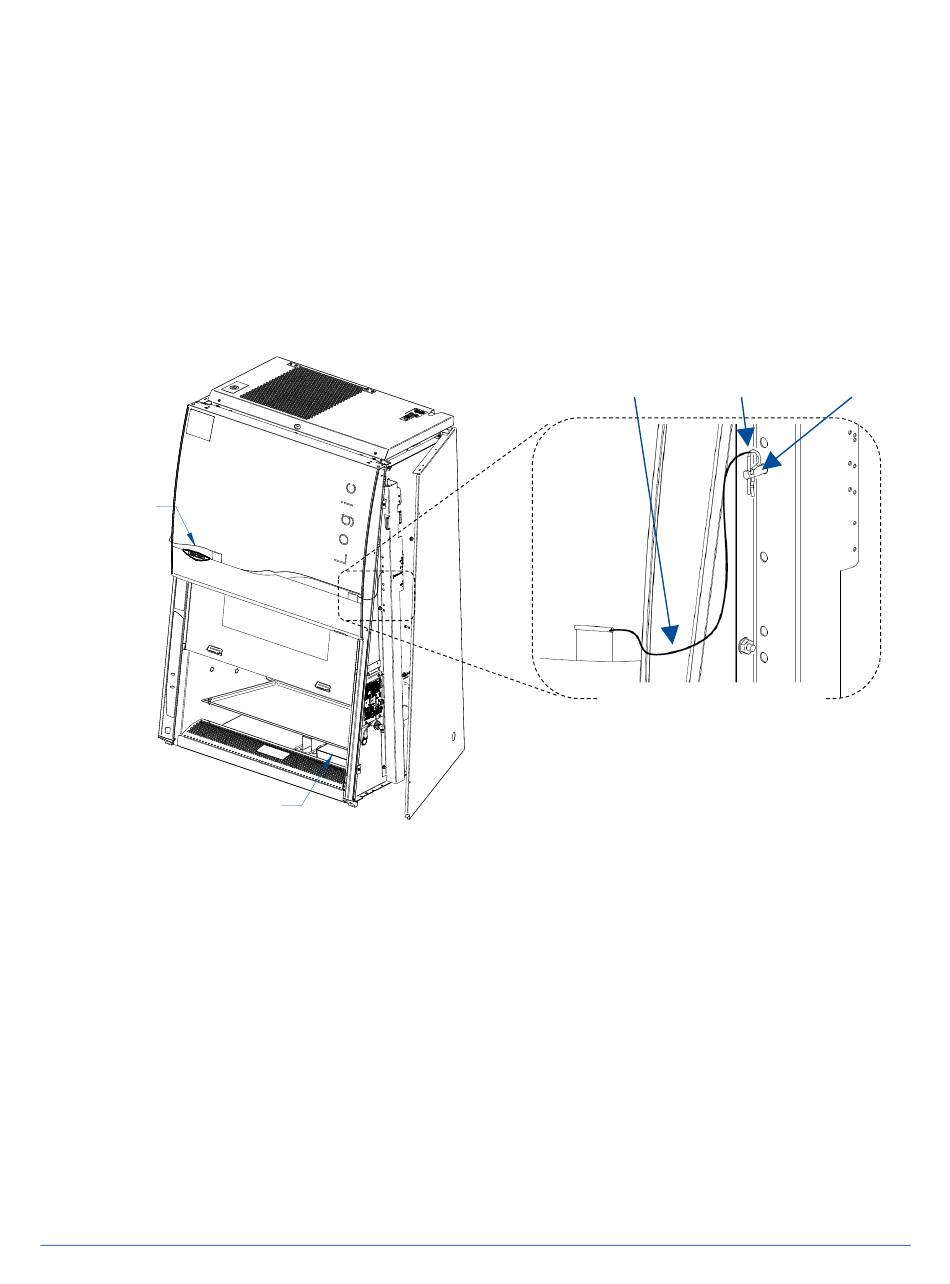

Figure 4-3
Support
Clevis Pin
Pin
