Loading Fanfold Media

Media Cover
Pivoting
Deck
1. Open the media cover.
2. Slide the media hanger guide outward to the end of the media hanger and
rotate it downward to a horizontal position to remove any roll media.
3. Place the fanfold media either behind or beneath the printer, depending
on the desired fanfold supply location. Insert the first few labels through
either the rear or bottom panel opening.
4. Place the media over the media hanger, flush against the back of the
printer.
5. Flip up the media hanger guide and slide it in against the outer edge of
the fanfold media.
6. Flip the fanfold tension arm down by pushing on it through the opening at
the top of the media hanger guide.
7. Open the pivoting deck by rotating the deck lock lever fully clockwise until
the deck swings upward.

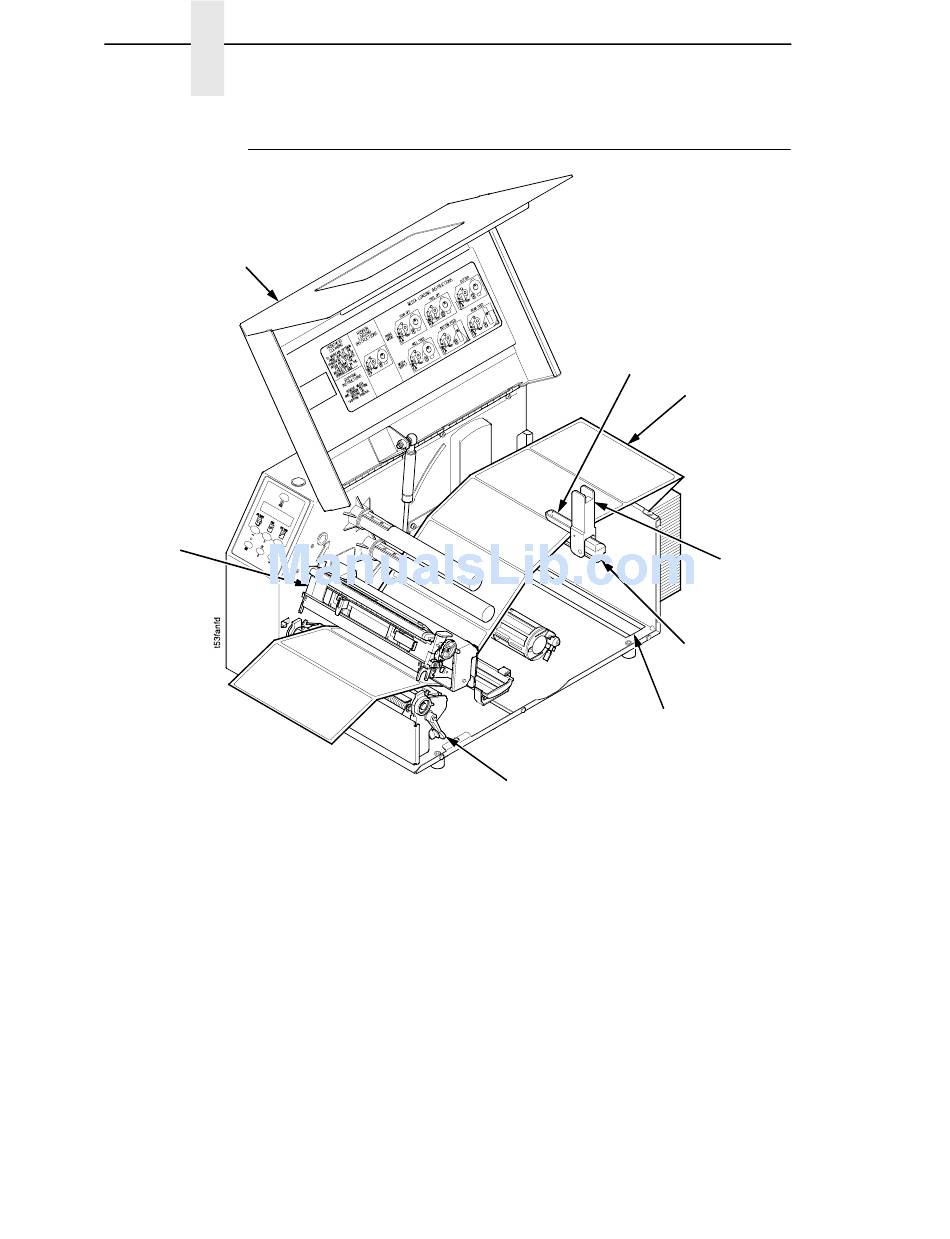

48
Fanfold
Tension
Arm
Bottom Panel
Opening
Deck Lock Lever
Fanfold
Media
Media
Hanger
Guide
Media
Hanger
