Printronix SL5000E series User Manual page 32

Chapter 1
Setting Up The Printer
5. Attach Interface:
a. Parallel Interface
b. Serial Interface
NOTE: The printer supports simultaneous connection of the parallel and
32
Attach a suitable parallel printer cable from the computer to the
Centronics/IEEE 1284 interface connector at the back of the printer.
Snap the bail locks to the Centronics connector to secure the
interface cable to the printer.
Attach a suitable serial printer cable from the computer to the DB-25
RS-232 serial interface connector at the back of the printer. For
additional information on serial cable wiring, refer to "Diagnostics And
Troubleshooting" on page 307.
serial interfaces using the Auto Switching feature. Auto Switching is
described on page 299.

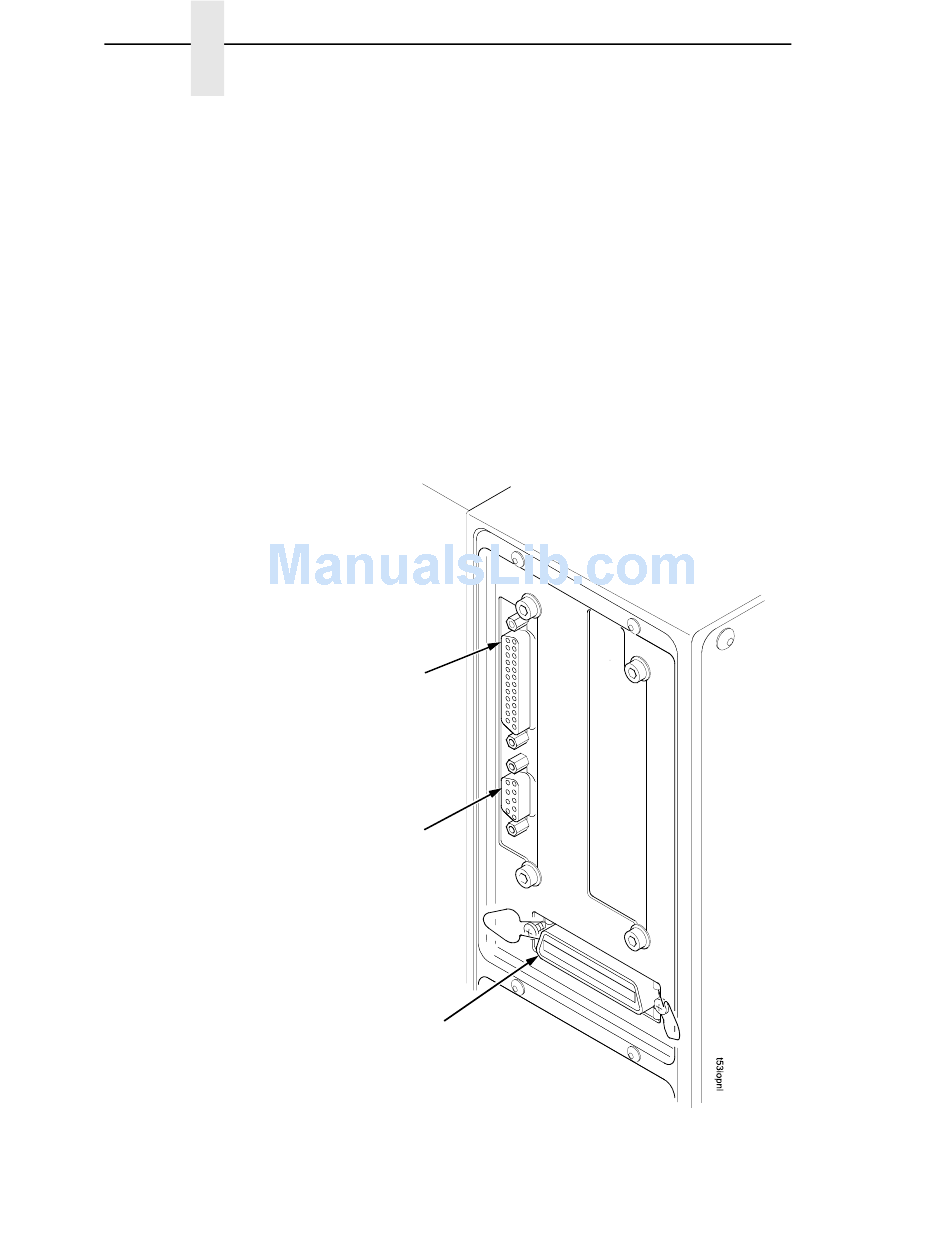

Standard Interface Panel
Serial Connection
Debug Connection
Parallel Interface
