Text Length

(From page 178.) Text Length is the printable length on the page below the

top margin.

The range is 1-255, and the factory default is 66.
Text Position
(From page 186, page 188, page 190, page 192, page 194.)
Specifies where the text will be positioned in the line space.
•
Top of Line. Text is positioned at the top of the line space.
•

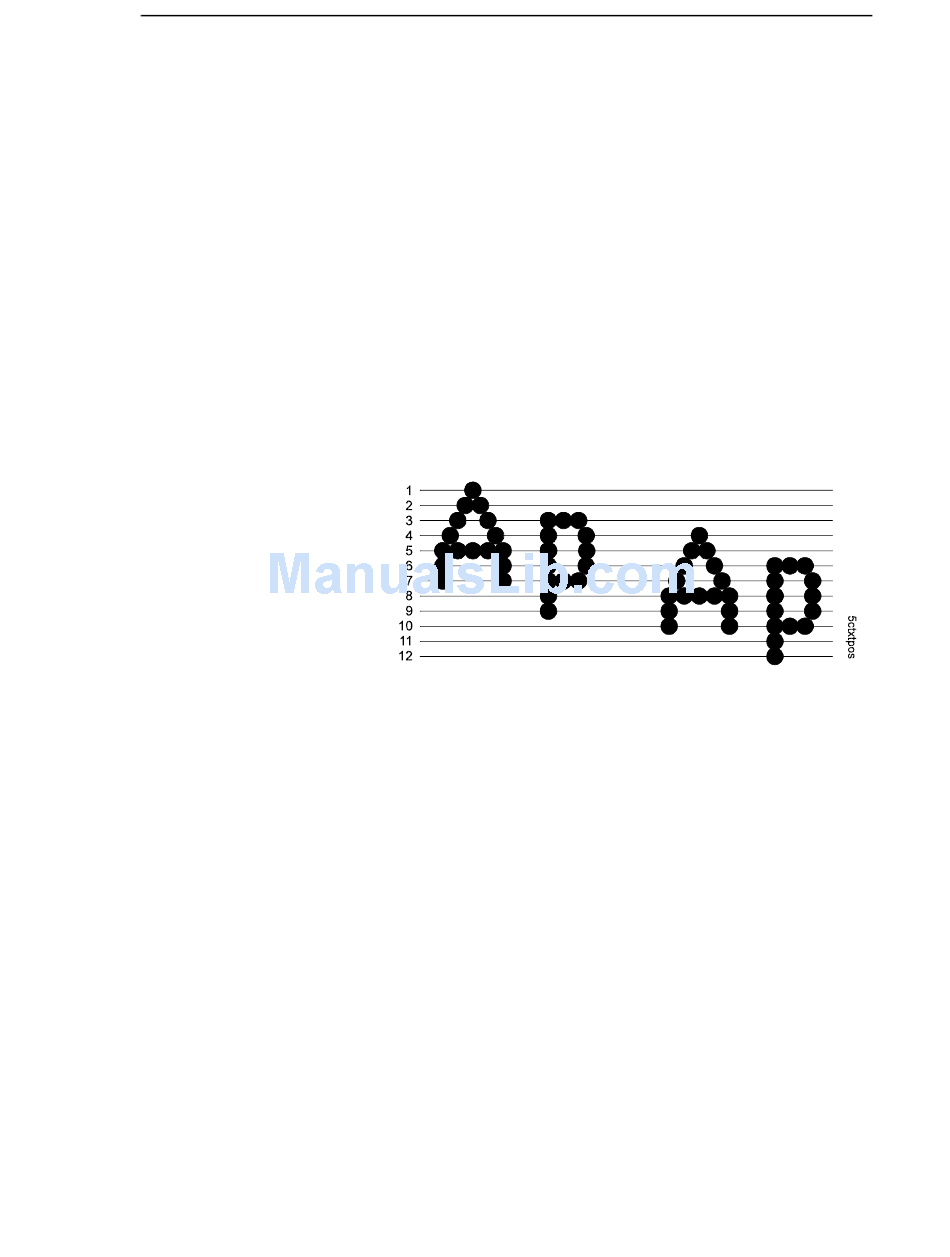

Bottom of Line. Text is positioned as if it were at the bottom of a 6 lpi line
space. The following example shows both Top of Line and Bottom of Line
text positions:
Dot
Row
Top of Line Space
Bottom of 8 LPI Line Space
Bottom of 6 LPI Line Space
The factory default is Bottom of Line.
Top Margin
(From page 185, page 187, page 189, page 191, page 193.)
Defined in linespaces, starting from line zero at the top of the page and
incrementing from the top down.
The range is 0-451 linespaces, and the factory default is 0 linespaces.

Top Position

(From page 181.) The value of this option specifies a vertical offset to be
added to all label element positions in dots per inch. For example, if the value
is 3 and the current form length is 6 inches, then 18 dots will be added to
element's vertical position.
The range is -100 to 100 dots/inch, and the factory default is 0 dots/inch.
Text Position
Top of Line
Overview
Text Position
Bottom of Line
241
