Error Codes

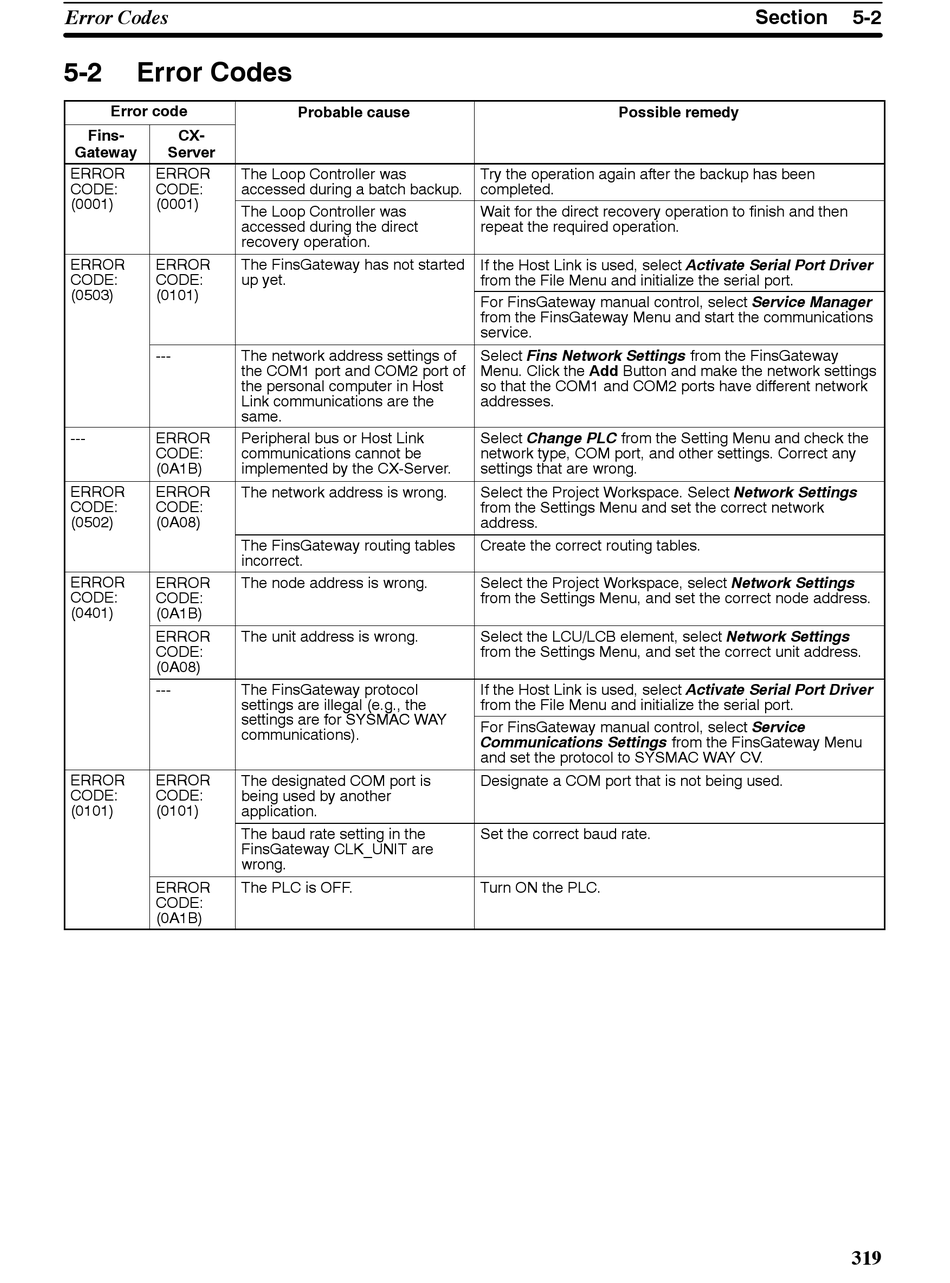

5-2 Error Codes
Error code
Fins- CX-
Gateway Server
ERROR ERROR
The Loop Controller was
CO CODE: CODE: CO
accessed during a batch backup.
(0001) (0001) (0001) (0001)
The Loop Controller was
accessed during the direct
recovery operation.
ERROR ERROR The FinsGateway has not started
CO CODE: CODE: CO up yet.
(0503) (0503) (0101) (0101)
--- The network address settings of
the COM1 port and COM2 port of
the personal computer in Host
Link communications are the
same.
--- ERROR Peripheral bus or Host Link
CODE: communications cannot be
(0A1B) implemented by the CX-Server.
ERROR ERROR The network address is wrong.
CODE: CODE:
(0502) ( ) (0A08) ( )
The FinsGateway routing tables
incorrect.
ERROR ERROR The node address is wrong.
CODE:
CODE:
( (0401) )
(0A1B)
ERROR The unit address is wrong.
CODE:
(0A08)
--- The FinsGateway protocol
settings are illegal (e.g., the
settings are for SYSMAC WAY
communications).
ERROR ERROR The designated COM port is
CODE: CODE: being used by another
( (0101) ) ( (0101) )
application.
The baud rate setting in the
FinsGateway CLK_UNIT are
wrong.
ERROR The PLC is OFF.
CODE:
(0A1B)
Probable cause
p y
g g ( g ,
tti f SYSMAC WAY
Possible remedy
Try the operation again after the backup has been
completed.
Wait for the direct recovery operation to finish and then
repeat the required operation.
If the Host Link is used, select Activate Serial Port Driver
from the File Menu and initialize the serial port.
For FinsGateway manual control, select Service Manager
from the FinsGateway Menu and start the communications
service.
Select Fins Network Settings from the FinsGateway
Menu. Click the Add Button and make the network settings
so that the COM1 and COM2 ports have different network
addresses.
Select Change PLC from the Setting Menu and check the
network type, COM port, and other settings. Correct any
settings that are wrong.
Select the Project Workspace. Select Network Settings
from the Settings Menu and set the correct network
address.
Create the correct routing tables.
Select the Project Workspace, select Network Settings
from the Settings Menu, and set the correct node address.
Select the LCU/LCB element, select Network Settings
from the Settings Menu, and set the correct unit address.
If the Host Link is used, select Activate Serial Port Driver
from the File Menu and initialize the serial port.
For FinsGateway manual control, select Service
Communications Settings from the FinsGateway Menu
and set the protocol to SYSMAC WAY CV.
Designate a COM port that is not being used.
Set the correct baud rate.
Turn ON the PLC.
Section 5-2
y
319
