Password Protection
1, 2, 3...

4-12-2 Inputting the Password before Uploading Data

1, 2, 3...
316

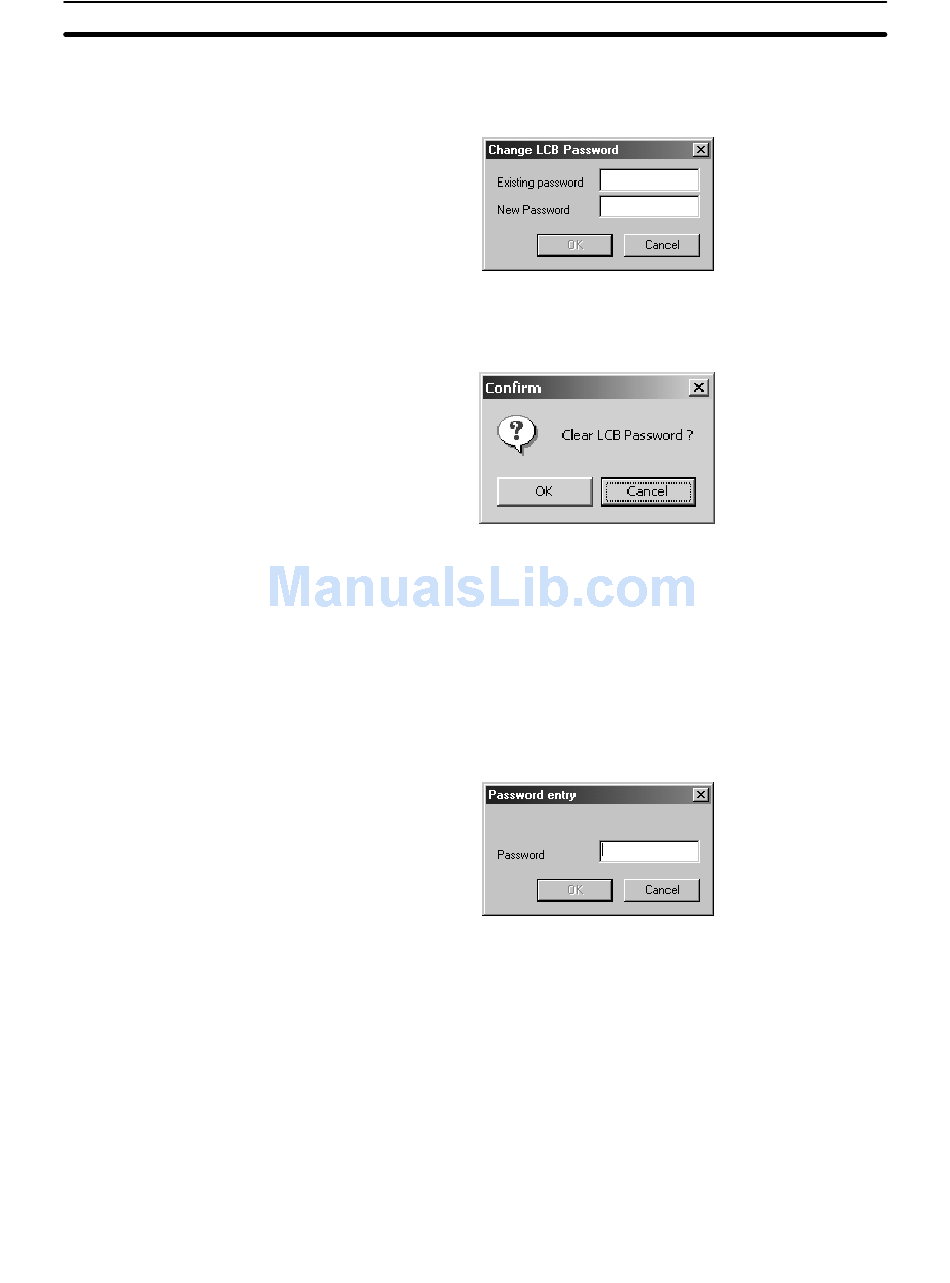

1. Select the LCU/LCB element (e.g., 00-LCB05), and then select Setting –
Program Protection – Edit LCB Password. The following dialog box will
be displayed.
2. Enter the current password under Existing password and leave New Pass-
word empty.
3. Click the OK Button. The following dialog box will be displayed.
4. Click the OK Button. The password that was previously set in the Loop Con-
troller will be deleted.
The password input using Setting – Program Protection – Edit LCB Password
must be input before uploading data from a Loop Controller for which password
protection has been set. Use the following procedure to input the password.
1. Select the LCU/LCB element (e.g., 00-LCB05), and then select Setting –
Program Protection – Input Password. The following dialog box will be
displayed.
2. Enter the password.
3. Click the OK Button.
Note To clear the password that has been input, select the LCU/LCB element (e.g.,
00-LCB05), and then select Setting – Program Protection – Clear Password.
Section 4-12
