3-11-3 Printing Block Diagrams

Printing an Active (i.e., Currently Open) Block Diagram

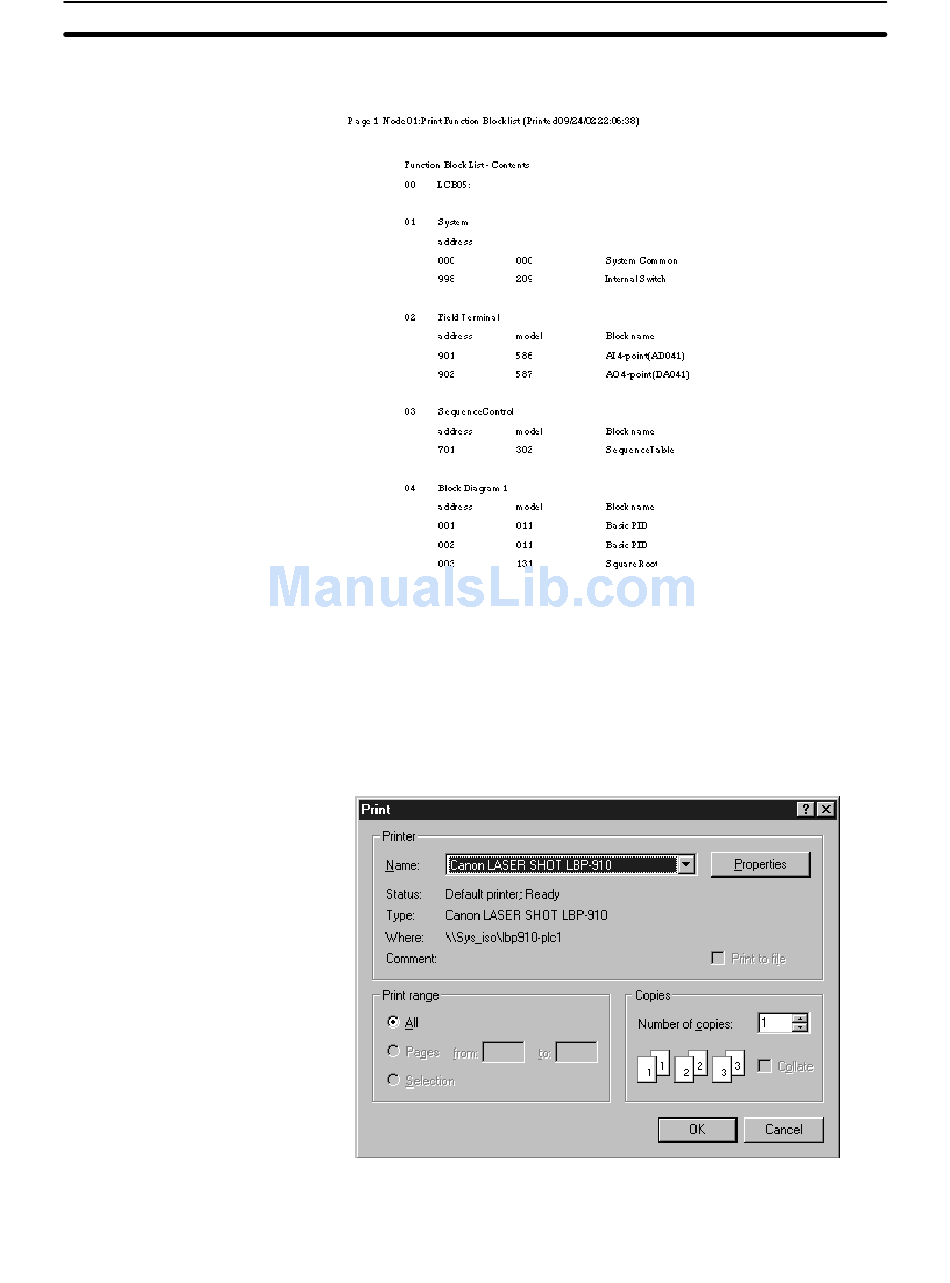

Printing Example

1. Select the block diagram folder and select Edit/Block Diagram from the

Settings Menu to set the Edit Block Diagram Mode.

2. Right-click the block diagram window, and select Print Block Diagram from

the pop-menu. The following Print Dialog Box will be displayed.

3. Set the number of copies to be printed, and then click the OK Button to start
