Tuning

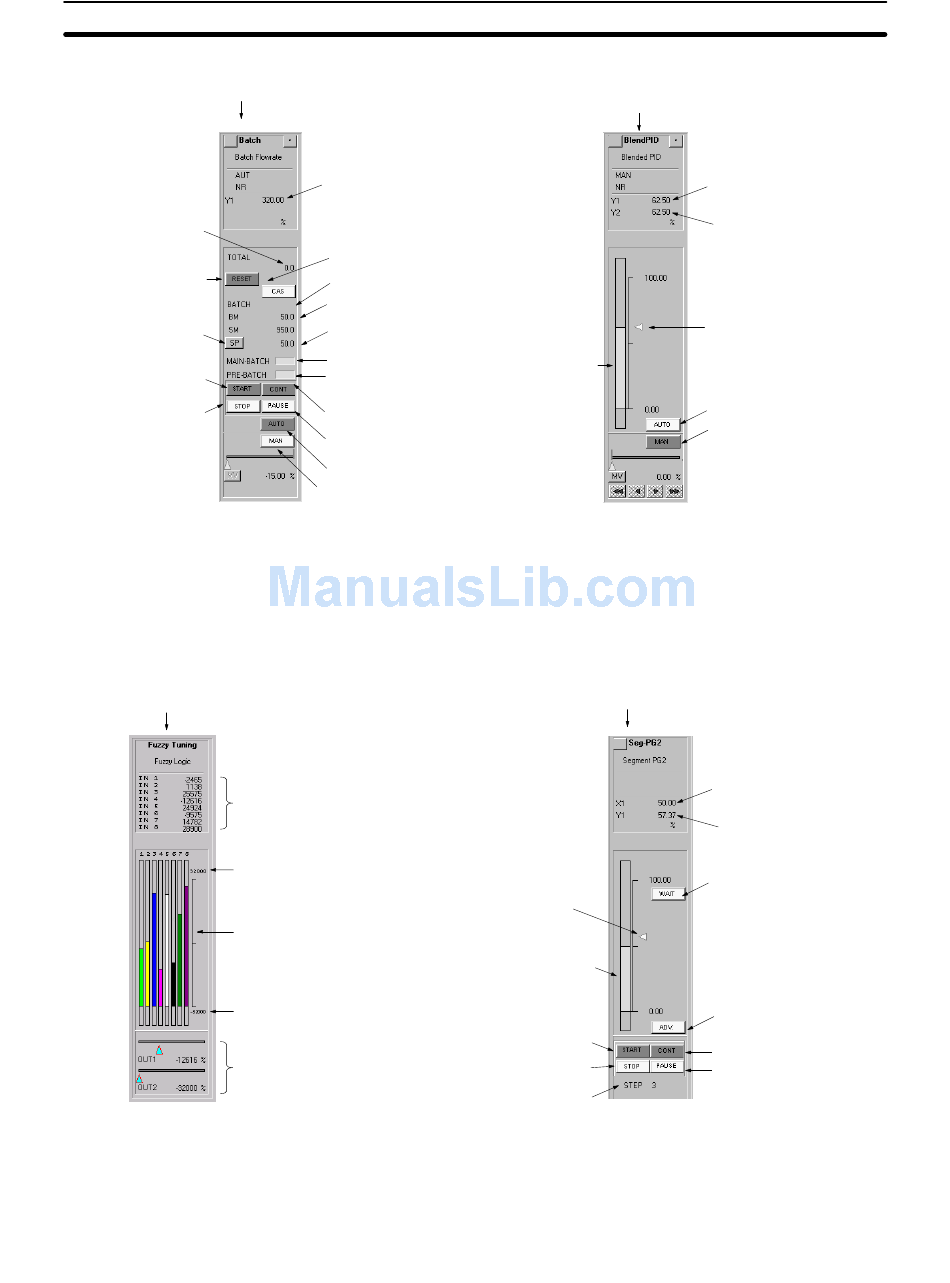

Batch Flowrate Capture (014)
Tag name
Batch accumulated
value display
Accumulation Counter
Reset Button (S3)
SP (1 Batch)
Change Button
Batch Run
Button (S1 = ON)
Batch Stop
Button (S1 = OFF)
Fuzzy Logic (016)
Tag name
Bar Display of Inputs 1 to 8
These bars show values of inputs 1 to 8 within their range
(lower limit to upper limit). The bars are displayed in differ-
ent colors to distinguish the bars.
Instantaneous value of
flowrate display
Switch to Re-
mote Button
Preset value (BM) display
Batch accumulated value
(SM) display
SP numerical value display
Main batch display
Pre-batch display
Control Restart Button
(S2 = OFF)
Control Interrupt Button
(S2 = ON)
Switch to AUTO Button
Switch to MAN Button
Values of inputs
1 to 8
Upper limit of range
Bar display of
inputs 1 to 8
Lower limit of range
Values of outputs
1 and 2
Blended PID (013)
Tag name
PV bar display
PV Bar Display
This bar shows the PV range (lower limit to upper limit).
Green: Status normal
Red: Deviation Alarm (DHH, DH, DL, or DLL) occurred
Yellow: MV Limit High/Low
Blue: Alarm OFF
Light blue: Function block calculations stopped
Segment Program 2 (157)
Tag name
Position of program
output value display
Bar display for
reference input
value
Run Command/
Display Button
Stop Command/
Display Button
Step number
executing
Section 4-7
PV numerical value display
SP numerical value display
SP position display
Switch to AUTO Button
Switch to MAN Button
Reference input
value display
Program output
numerical value
Move to Next Wait
Command Button
(Red during WAIT)
Move to Next Step
Command Button
Time Axis Hold
Cancel Button
Time Axis Hold Button
