Creating Function Block
Registering User Link Table Blocks (Settings for Data Exchange with CPU Unit: Not Possible for Loop
Control Unit)
1, 2, 3...
With a Loop Control Board, Process-control CPU Unit, or Loop-control CPU
Unit, a user link table can be registered by pasting it on the block diagram. This
enables easily setting software connections for data exchange between the
Board and I/O memory in the CPU Unit.
Refer to 3-5 User Link Tables for details on user link tables.
1. Paste the user link table on the block diagram as described below. (Input
user link tables and output user link tables are pasted separately.)
• Input User Link Tables (Reading data from the CPU Unit to the Loop Con-
troller)
Right-click on the block diagram and select Register/User Link Table/
Link Input (Read from CPU Memory) from the pop-up menu.
• Output User Link Tables (Writing data from the Loop Controller to the CPU
Unit)
Right-click on the block diagram and select Register/User Link Table/
Link Output (Write to CPU Memory) from the pop-up menu.

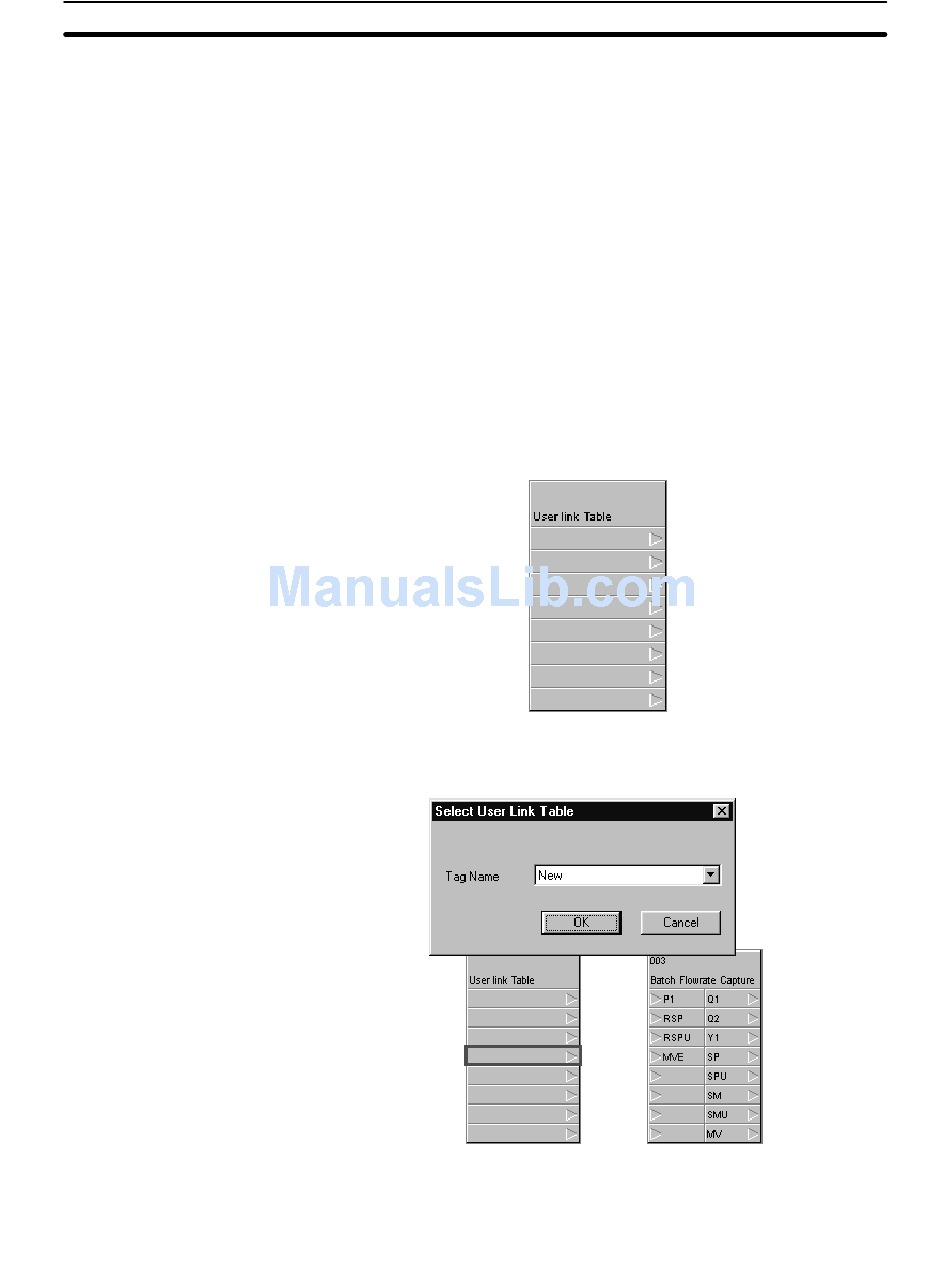

The following type of function block will be pasted into the block diagram.
Example: Input User Link Table
2. Right-click on the ITEM to be set and select Register/User Link Table/Reg-
ister Block Cell from the pop-up menu. The ITEM will be displayed with a
red border and the following dialog box will be displayed.
3. Select the name of a user link table tag that has been registered or input a
new tag to register it in the user link table.
