Setting Segment Programs
Max. wait time: Used to set the maximum wait time.
Time unit: Used to set the time unit (to seconds, minutes, or hours).
Initial output value: Used to set the B0 value. The value will be displayed in engineering units if the Engineering Unit
Mode is set.
Unit: The unit will be displayed if the Engineering Unit Mode is set.
Setting Segment Program 3
Use the following procedure to make the settings for Segment Program 3.
1. Open the Segment Program 3 ITEM list, right-click in the ITEM list, and select Extension from the pop-up
menu.

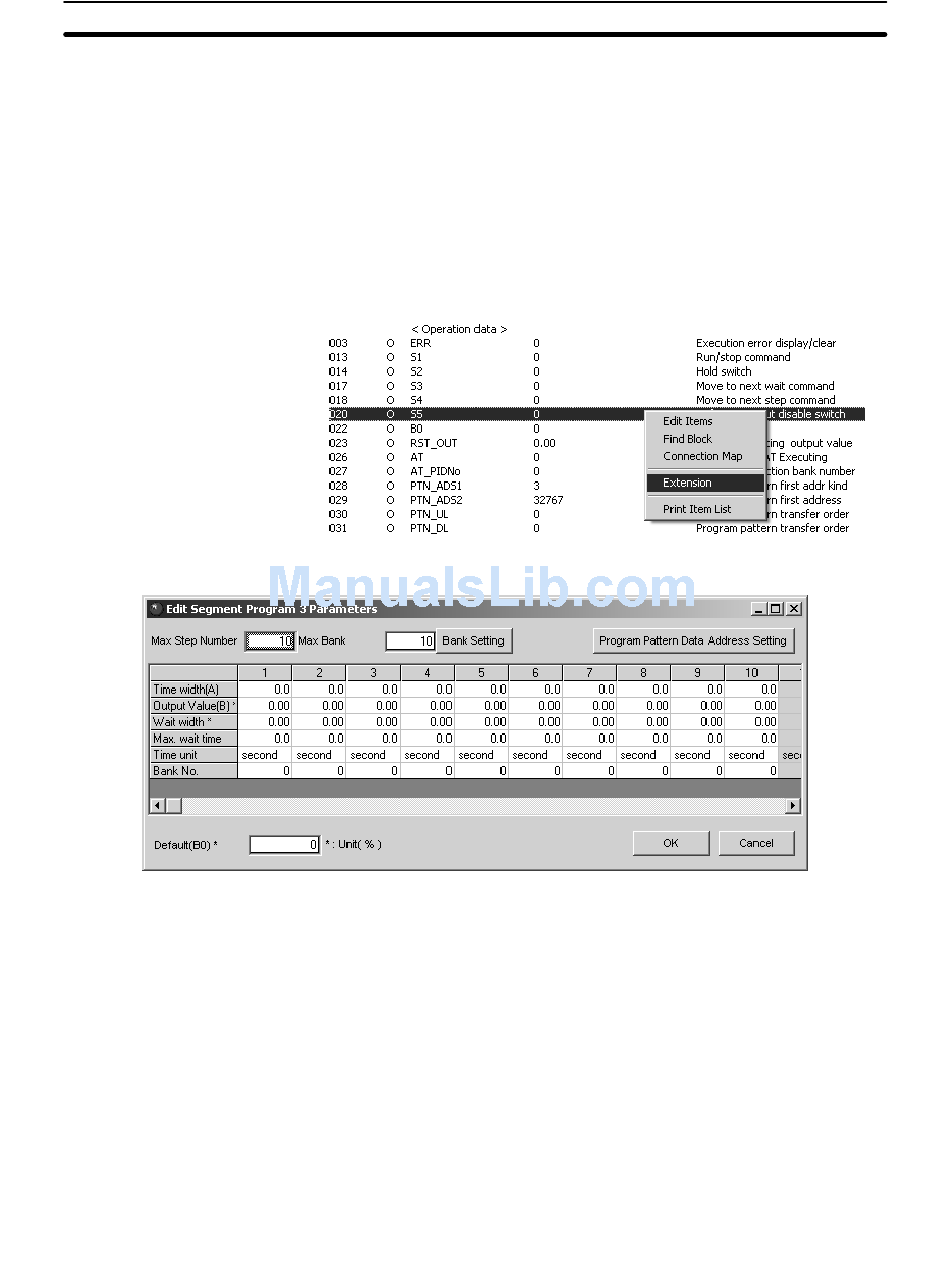

2. The Edit Segment Program 3 Parameters Window will be displayed.
The contents of the ITEMs for each step will be displayed in table format. When the table is directly edited and the
OK Button is pressed, the values will be reflected in the function block ITEMs. (For details on the editing function,
refer to Edit Window Functions.
The items in the Edit Window are as follows:
Horizontal Axis
1 to 100: Step numbers
Vertical Axis
Time width (A): Used to set the time width as A.
Output value (B): Used to set the output value as B. The value will be displayed in engineering units if the
Engineering Unit Mode is set.
Wait width: Used to set the wait width. The value will be displayed in engineering units if the Engineering
Unit Mode is set.
Max. wait time: Used to set the maximum wait time.
Time unit: Used to set the time unit (to seconds, minutes, or hours).
