Using The Cx-Process Monitor Plus - Omron CX-PROCESS TOOL V5.2 - REV 10-2010 Operation Manual

Using the CX-Process Monitor Plus

3-3

Using the CX-Process Monitor Plus

1, 2, 3...
Set Network Address,
Node Address, and Unit
Address.

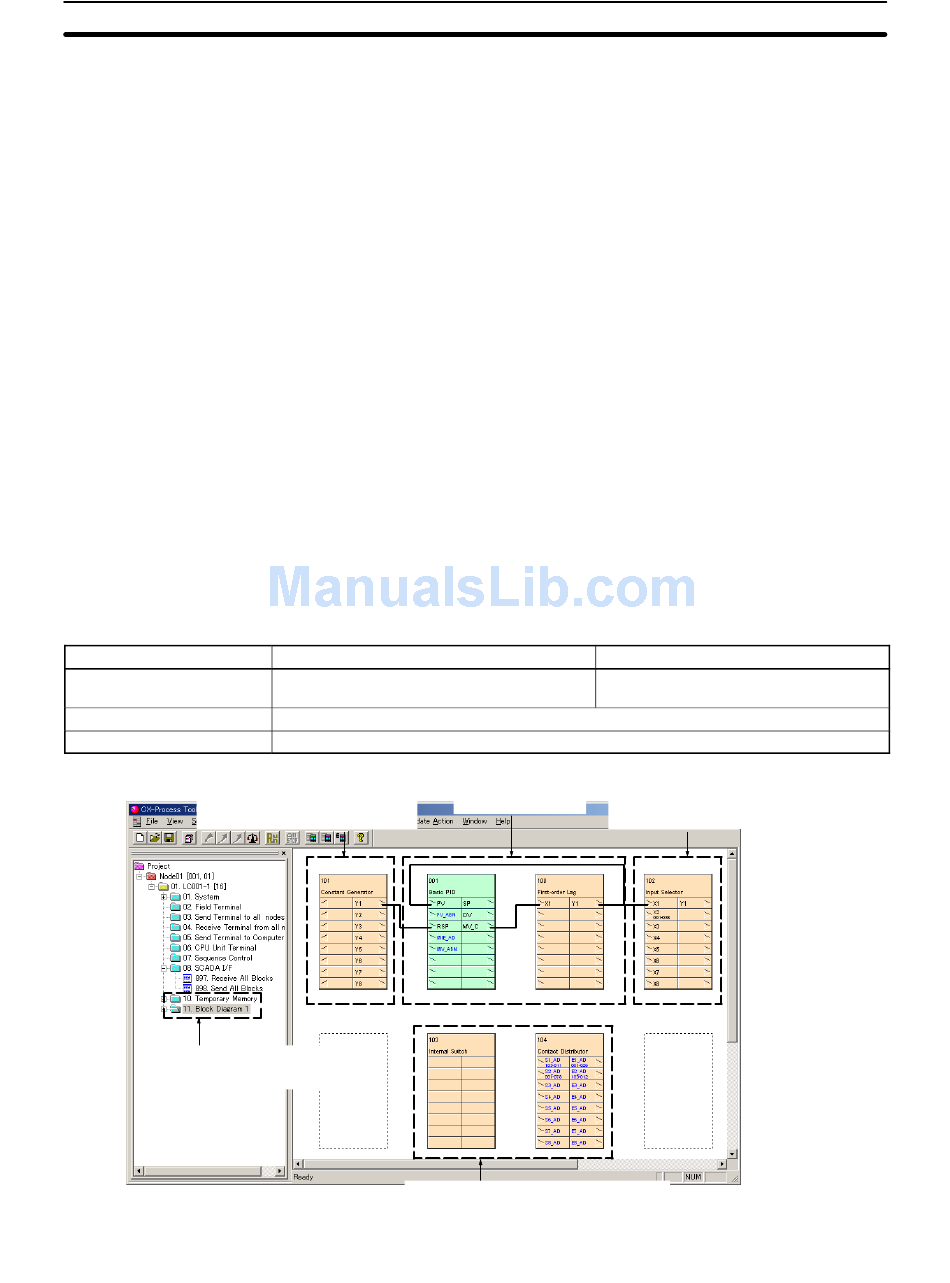

Register and Connect Function Blocks To Exchange Data with CX-Process Monitor Plus.
Item
Function block data to
exchange
Contact signals to exchange
Analog signals to exchange
Block to input analog signals from
the CX-Process Monitor Plus.
Blocks to monitor function
block ITEM tags from the CX-
Process Monitor Plus.
138
The following six steps must be performed on the CX-Process Tool to pass tag
data to the CX-Process Monitor Plus.
1. Set the network address, node address, and unit address.
2. Register and connect the function blocks that exchange data with the CX-
Process Monitor Plus.
3. Set the CSV tags and the CX-Process Monitor Plus tags.
4. Generate the CX-Process Monitor Plus tag file.
5. Download the function block data to the Loop Controller.
6. Compile the monitor tag files.
The CX-Process Monitor Plus uses the network address, node address, and unit
address set using the CX-Process Tool (Settings/Network Settings or Set-
tings/Change PLC) for communications with the PLC. The communications
settings for the CX-Process Monitor Plus and thus made from the CX-Process
Tool.
Note The CX-Process Monitor and CX-Process Monitor Plus use FinsGateway as the
communications driver for connections with the PLC. When using the CX-Pro-
cess Monitor or CX-Process Monitor Plus, always set FinsGateway as the com-
munications driver for the CX-Process Tool. If the CX-Server is set, the CX-Pro-
cess Monitor or CX-Process Monitor Plus will not be able to go online with the
PLC.
Loop Control Unit
Send All Blocks block (Block Model 462) and
Receive All Blocks block (Block Model 461)
Contact Distributor (Block Model 201) or Internal Switch (Block Model 209)
Input Selector block (Block Model 162) and Constant Generator block (Block Model 166)
Blocks to manipulate or display contacts
from the CX-Process Monitor Plus.
HMI settings in the System Common
block (Block Mode 000)
Main function blocks Block to output analog signals to
the CX-Process Monitor Plus.
Section 3-3
LCBjj
