Displaying Loop Controller Memory Maps

3-10 Displaying Loop Controller Memory Maps

3-10-1 Overview

Loop Controller
Control Blocks, etc.
System
Block Model
Common
Block
Block Model
Control
Blocks
User Link Table
Tag A
Tag B
Tag C
Field Block Terminal
212
When using CX-Process Tool version 4.0 or higher, a list can be displayed show-
ing the areas of the CPU Unit's I/O memory that are being used by the Loop Con-
troller. The list is displayed for each area type in address order. The following
areas can be displayed and the status can be confirmed by the color of the ad-
dress cell.
• When HMI I/F Area is allocated:
Send Area (Loop Controller → CPU): Blue
Receive Area (CPU → Loop Controller): Pink
• When analog or contact signals are allocated in the addresses of the User Link
Table: Green
• When analog or contact signals are allocated in the field terminal block:
Orange
• When program pattern data is allocated in Segment Program 3 (Block Model
158): Dark green
Note 1. For User Link Table contacts, the I/O memory address in which the contact
signal is allocated is displayed in color.
2. The following two types of overlapping can be confirmed when checking
whether the same I/O memory address has been used more than once.
• When data has been written (sent) from the Loop Controller to the same
I/O memory address in the CPU Unit: The corresponding cell will be dis-
played in red to indicate an overlap warning.
• When data has been read (received) to the Loop Controller from the same
I/O memory address in the CPU Unit, or when data has been read (re-
ceived) from and written (sent) to the same I/O memory address in the
CPU Unit: The corresponding cell will be displayed in aqua to indicate an
overlap in the receive area.
CPU Unit
CIO Area
Used in HMI
interface
Used in User
Link Table
Used in field
block terminal

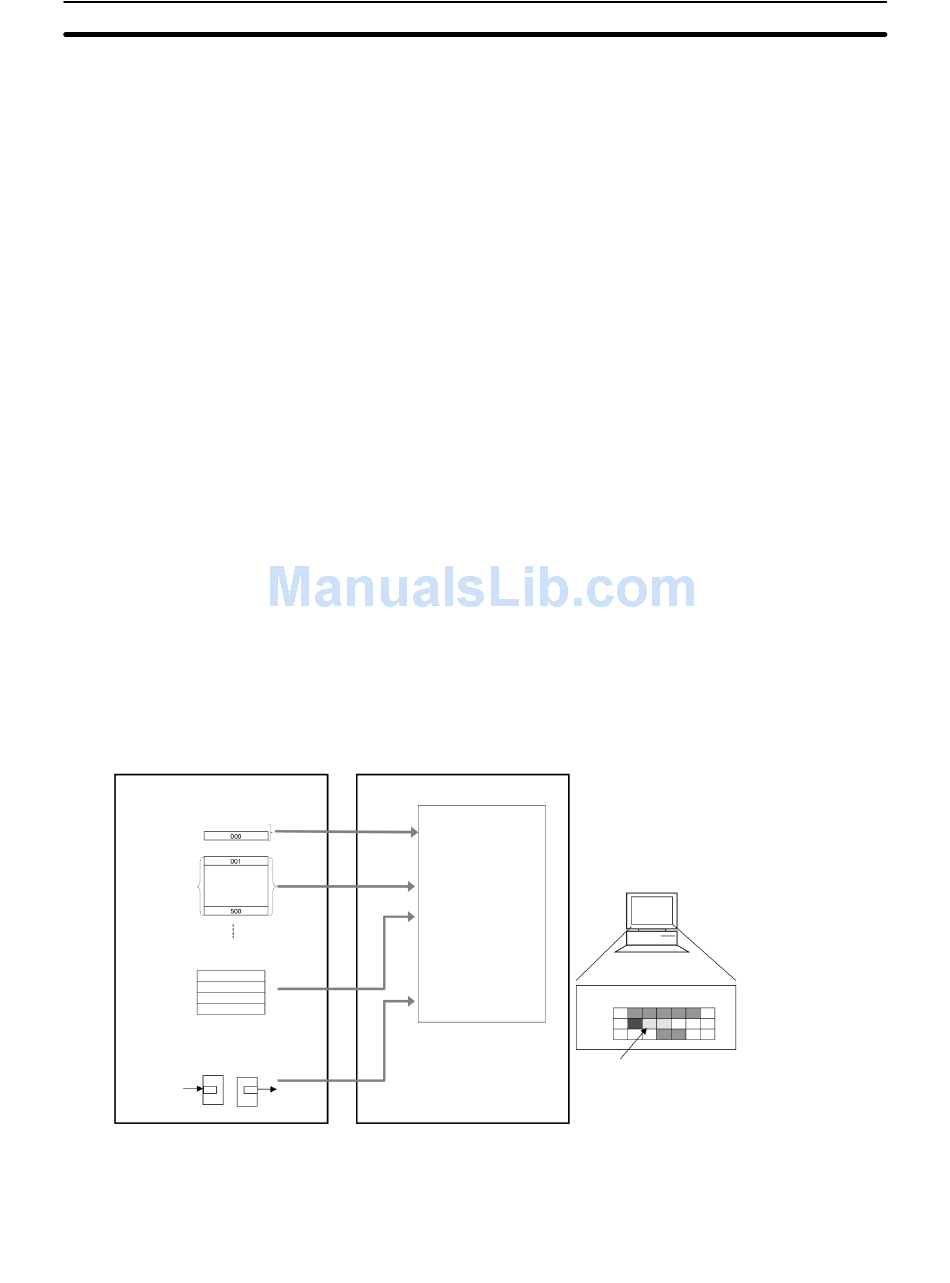

This function simplifies management of the CPU Unit memory by enabling con-
firmation of which areas in the CPU Unit's I/O memory are being used by the
Loop Controller.
CX-Process Tool
Offline
Memory Map
Area type: CIO
CIO 00000
CIO 00001
CIO 00002
Displays whether the tag is being used in
the HMI interface data area, the User Link
Table, or a Field Block Terminal.
Also displays whether any address is being
used more than once.
