Registering Function Blocks - Omron CX-PROCESS TOOL V5.2 - REV 10-2010 Operation Manual

Creating Function Block

3-1-6 Registering Function Blocks

1, 2, 3...
108

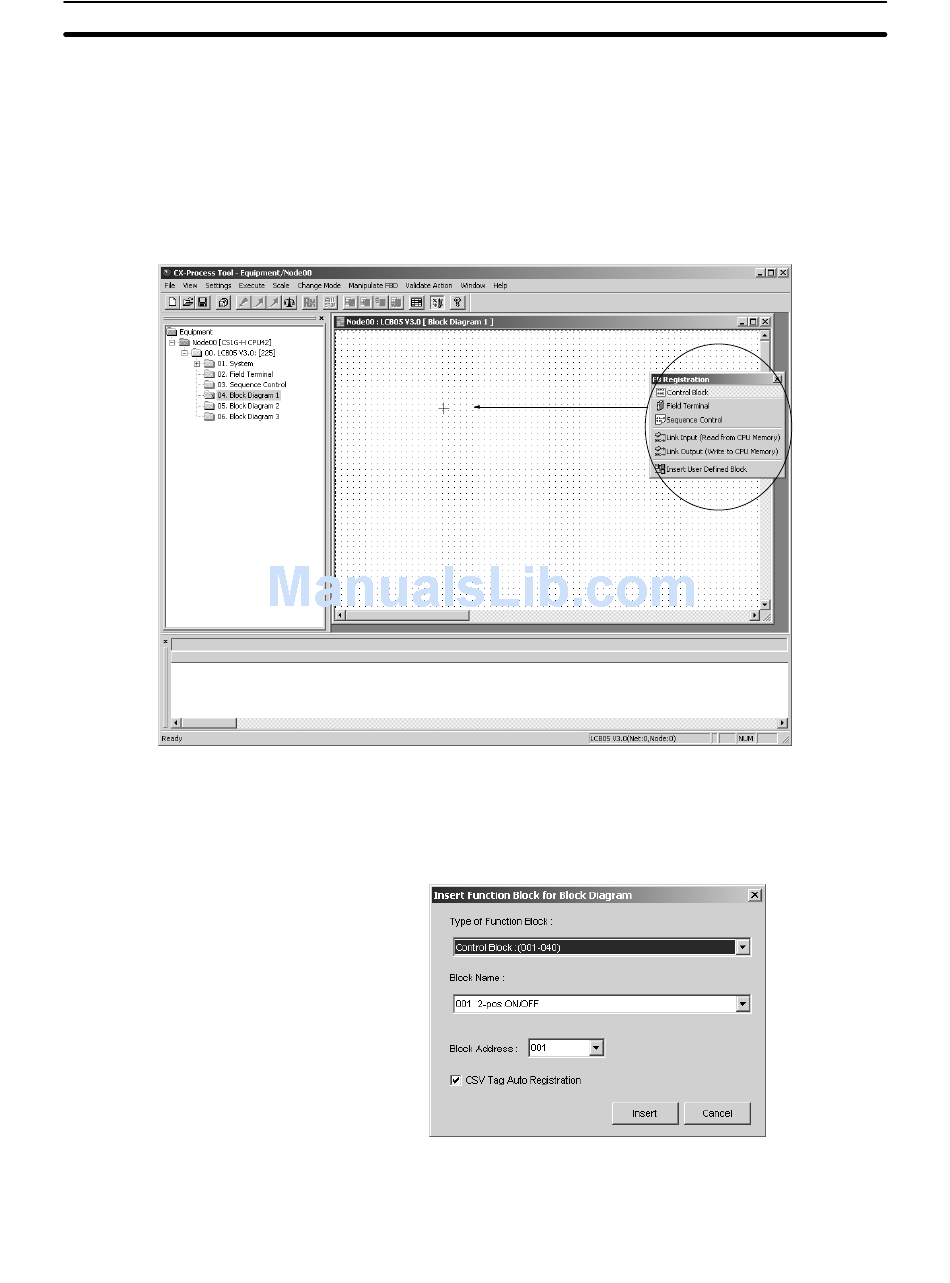

Use the following procedure to register a function block.
1. With a block diagram displayed, left-click the function block category dis-
played in the function block registration bar. The cursor will be changed into
a cross.
2. Move the cursor to the registration position on the block diagram, and left-
click.
3. One of the following dialog boxes will be displayed, depending on the type of
function block selected. Perform the specified actions for the dialog box that
is displayed.
1) Control Block
Select the function block type, the function block name, and the block ad-
dress to be registered. If CSV tags are to be registered automatically, se-
lect the checkbox. For details, refer to 3-4 Using SCADA Software.
Section 3-1
