User Link Tables

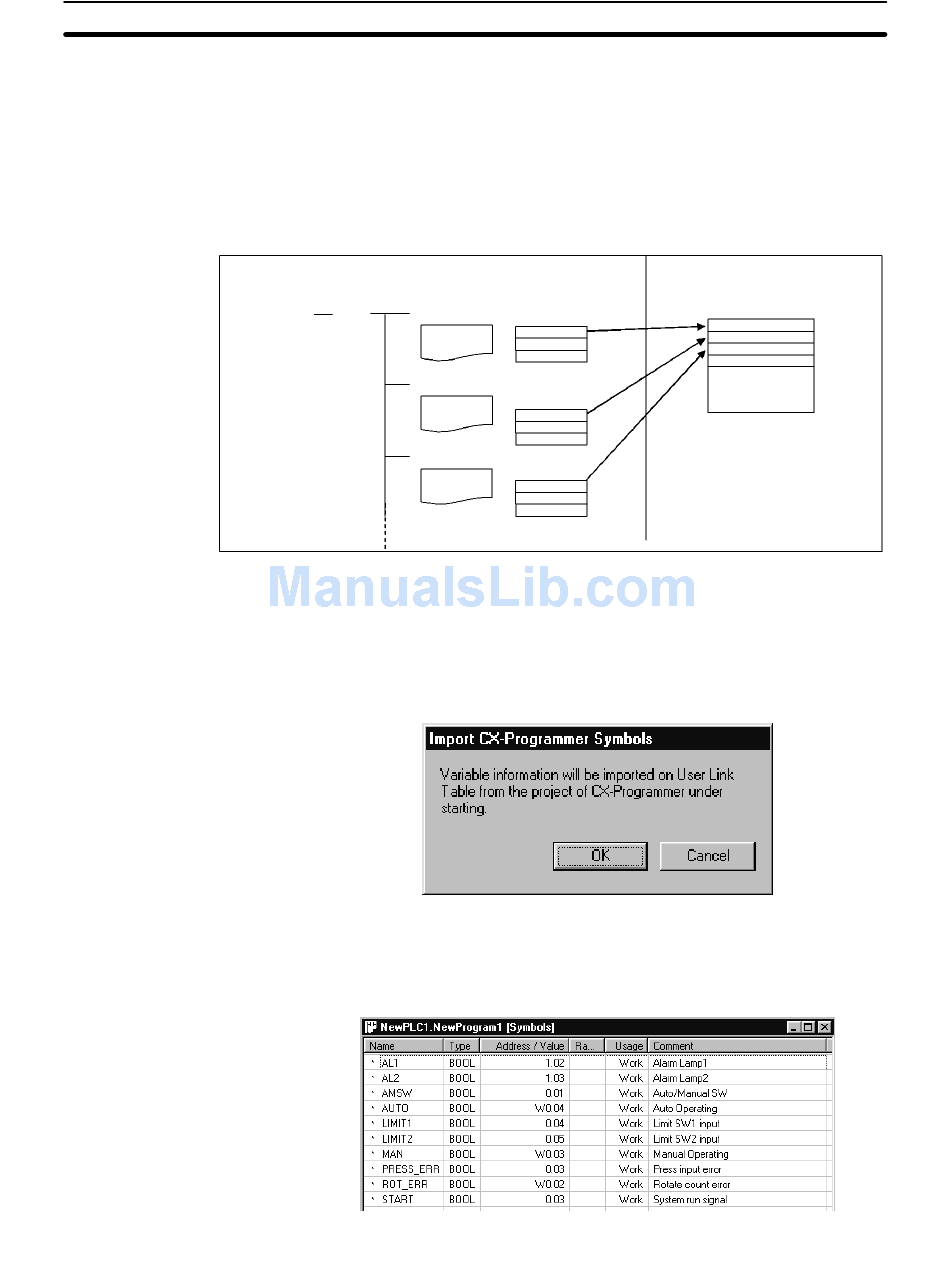

3-5-3 Importing CX-Programmer Symbols into a User Link Table

1, 2, 3...
If CX-Programmer is running on the same computer, information on all of the
symbols in the local symbol table in the current CXP Project can be imported into
a user link table.
Note The CX-Programmer must be version 2.0 or higher.
CX-Programmer
Project PLC
Program 1
Program 2
Program 3
Use the following procedure.
1. Start the CX-Programmer.
2. Select Import CX-Programmer Symbols from the Settings Menu. The fol-
lowing dialog box will be displayed.
3. Click the OK Button. The local symbol table from the CX-Programmer will be
imported to the user link table in the CX-Process Tool as shown below.
• Example: CX-Programmer Symbol Table
Local symbol
table
Local symbol
table
Imported
Local symbol
table
Section 3-5
CX-Process Tool
User link table
165
