User Link Tables
1, 2, 3...
1, 2, 3...

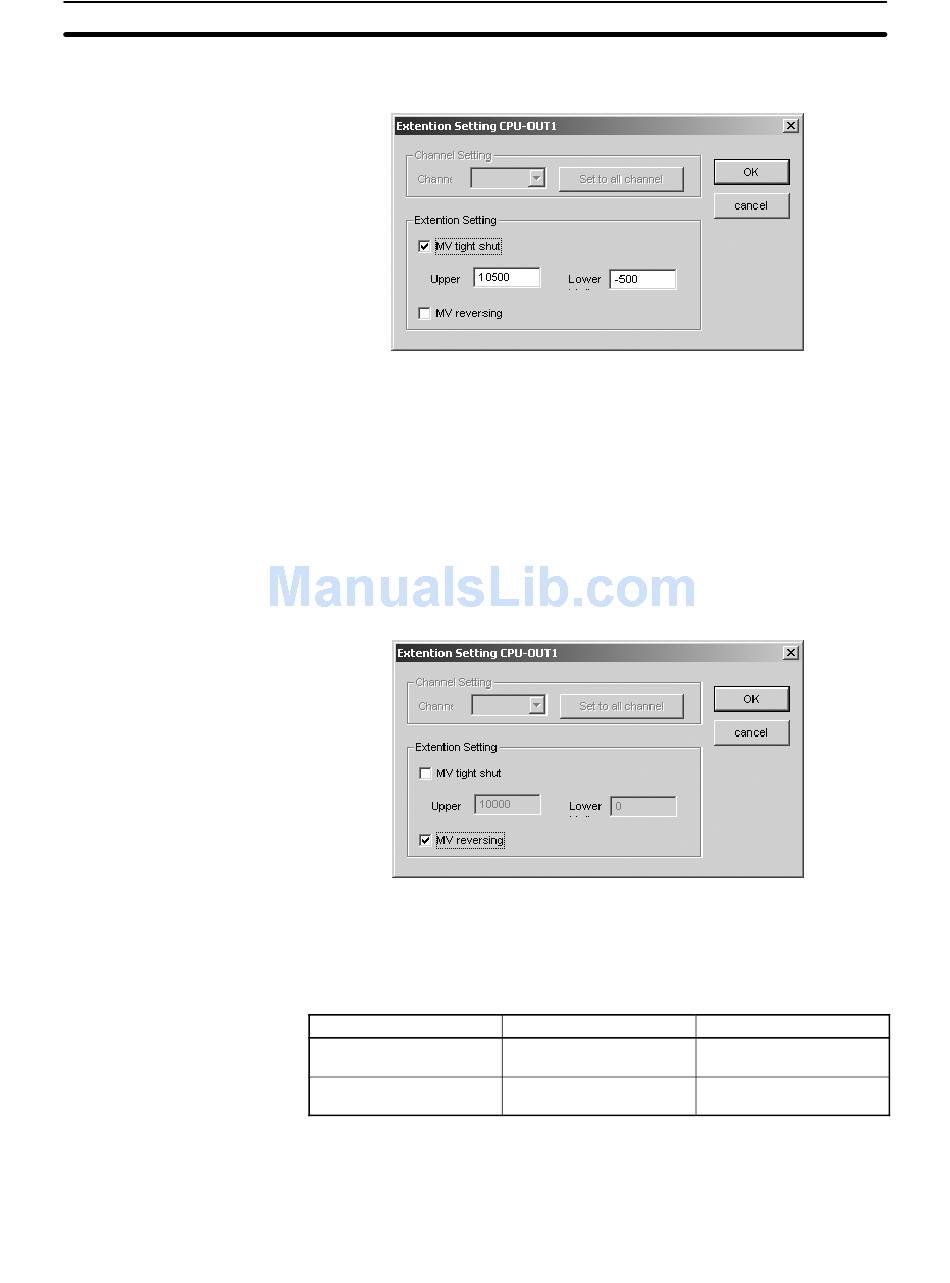

2. The Extension Dialog Box will be displayed.
3. Select the MV tight shut Check Box and enter the upper and lower limits.
(See note.)
Note The tight shut upper limit is always 320.00% and the lower limit is –320.00%.
MV Reversing
MV reversing settings are made in user link tables for output attributes.
1. Select the entry for the output attribute. Right-click and select Edit – Exten-
sion from the pop-up window.
2. The Extension Setting Dialog Box will be displayed.
3. Select the MV Reversing Check Box.
The MV tight shut and MV reversing functions can be set from the following field
terminals. The extension settings will be made automatically for the entries for
user link table entries generated by the connection lines to each field terminal.
Applicable field terminal
Isolated AO 4-point
terminal (PMV01)
Isolated AO 4-point
terminal (PMV02)
Procedure for Settings from Field Terminals
1. Register the field terminal.
2. Connect lines to function blocks.
Tight shut upper limit
115.00%
115.00%
Section 3-5
Tight shut lower limit
–20.00%
–15.00%
