Creating Step Ladder Program Instructions
182
5. To input the operand, click the

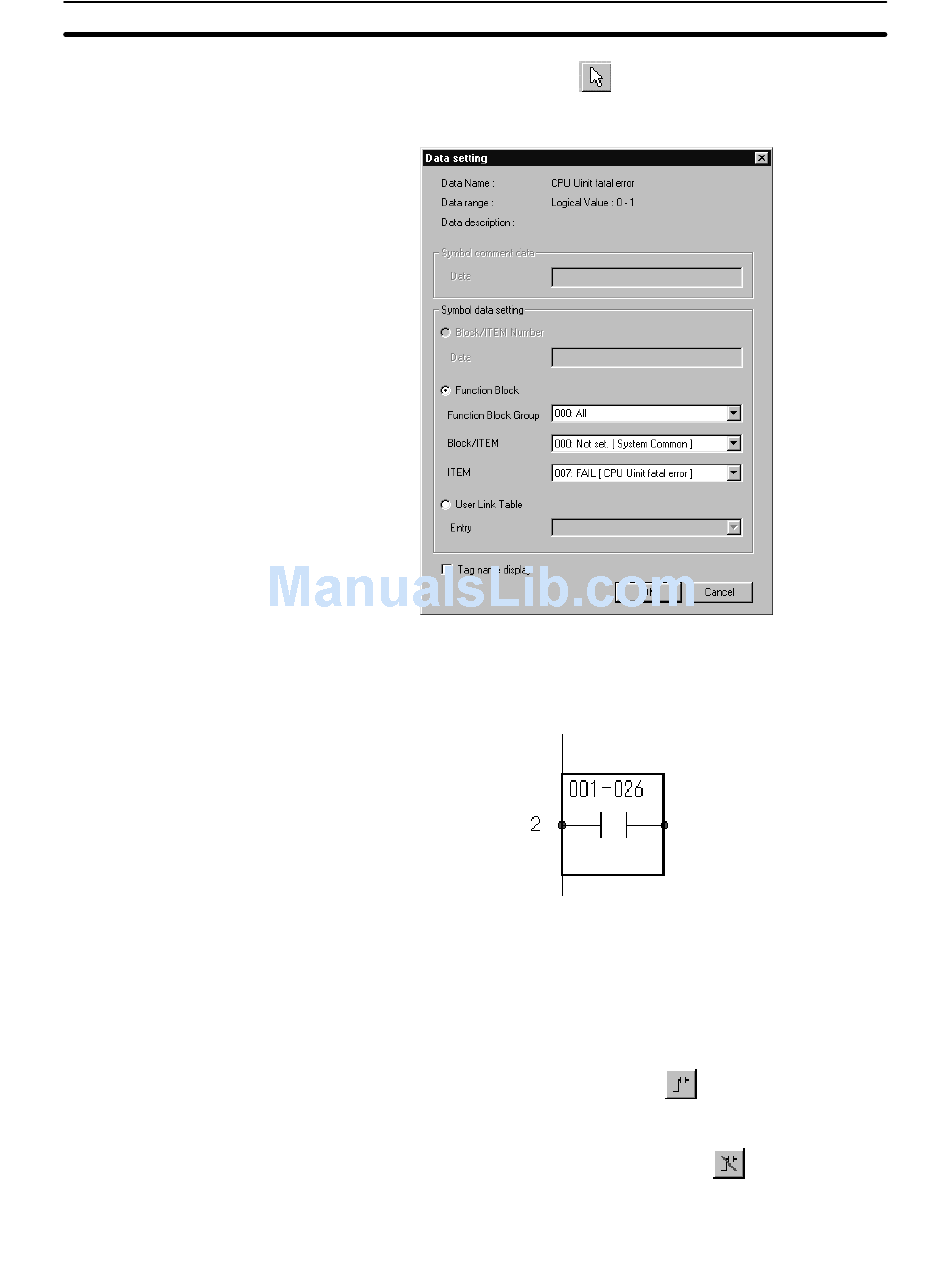

Double-click the ladder diagram symbol. The following dialog box will ap-
pear.
Input the block address and ITEM number.
Here, select ITEM 026 at block address 001 and click the OK Button.
Note In the ladder diagram, "–" will appear between the block address and
ITEM number.
6. To input an output instruction, such as OUT, for example, click the instruction
on the right edge (i.e., the Manipulate Ladder position), and input the
instruction in a method similar to the one used for input instructions.
Note You cannot use Internal Switch as an operand for an output instruc-
tion, such as OUT.
7. Connect the right edge of the input instruction written at the condition posi-
tion to the output instruction written at the operation position.
To draw a vertical or horizontal line, click the
to the start point. Click the start point with the left mouse button, drag the
mouse, and release the button at the end point.
To delete lines drawn in the above steps, click the
cursor to the start point. Click at the start point, drag the mouse, and release
the button at the end point.
Section
icon to return the cursor to normal.
icon and move the cursor
icon and move the
3-7
