Initial Settings for Online Connections
Initial Settings in CX-Process Tool
1, 2, 3...
Setting Unit Addresses
(Loop Control Units
Only)
1, 2, 3...
Starting Communications
Service
Ethernet
Initial Settings
1, 2, 3...
Setting Network and Node Addresses

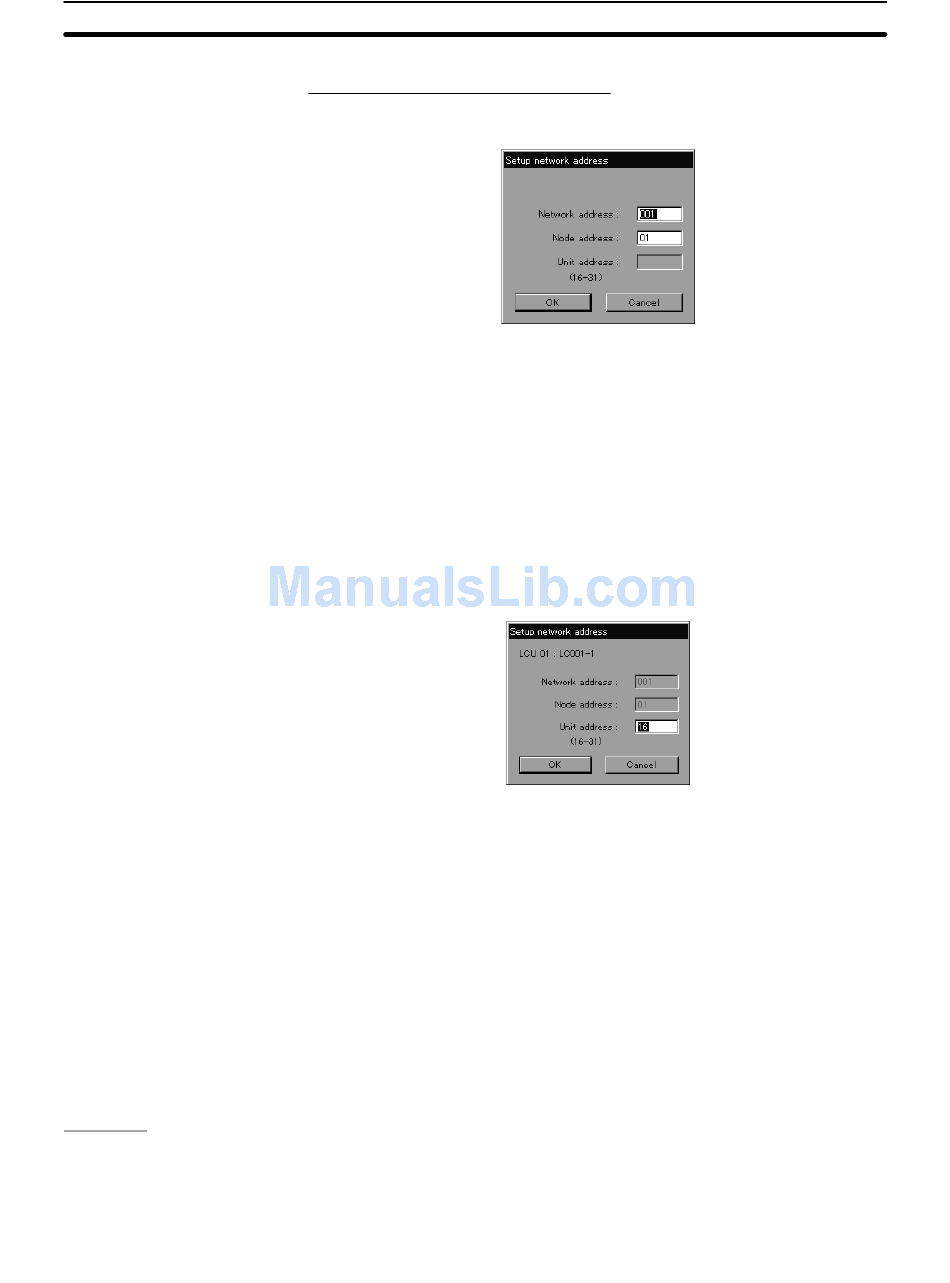

Select the active function block file in the Project Workspace and select Net-
work Settings from the Settings Menu. The following dialog box will appear.
1. Set the network address to between 000 and 127 in the Network Address
Field and set the node address to between 1 and 32 in the Node Address
Field.
2. Click the OK Button.
Note Set the network address to 0 if the local network is connected to the
Controller Link.
Note If Controller Link is used, manually set the above network address and node ad-
dress using the FinsGateway manual setting. If the manual settings are not
made or different addresses are set, no online connections will be possible.
After the above settings, select the LCU element (LC001-1 to LC001-3) and se-
lect Network Settings from the Settings Menu. The following dialog box will ap-
pear with the network address and node address already set.
1. Input the unit address between 16 and 31 into the Unit Address Field. The
unit address is between 16 and 31 (10 and 1F Hex). In other words, add 16
(10 Hex) to the unit number between 0 and 15 (0 to F Hex) set on the rotary
switches on the front panel of the Loop Control Unit as a CPU Bus Unit.
2. Click the OK Button.
Note In addition to manually setting the addresses, as described above, they can also
be set automatically by searching for Loop Controllers connected to networks of
the PLC connected to the CX-Process Tool. Select the LCU element and then
select Find LCU/LCB from the File Menu. This can be performed even before
initializing serial communications. Refer to Automatically Setting Addresses
(page 245) for details.
If the Controller Link is used, it is necessary to start the FinsGateway commu-
nications service manually. Select FinsGateway Settings from the FinsGate-
way Menu.
1. Set the unit numbers of the Loop Control Units (with the rotary switches on
the front panels) (Loop Control Units only).
2. Set the I/O tables.
Section
4-2
243
