Creating Function Block

3-1-3 Creating a New Project

1, 2, 3... 1. Select New from the File Menu.

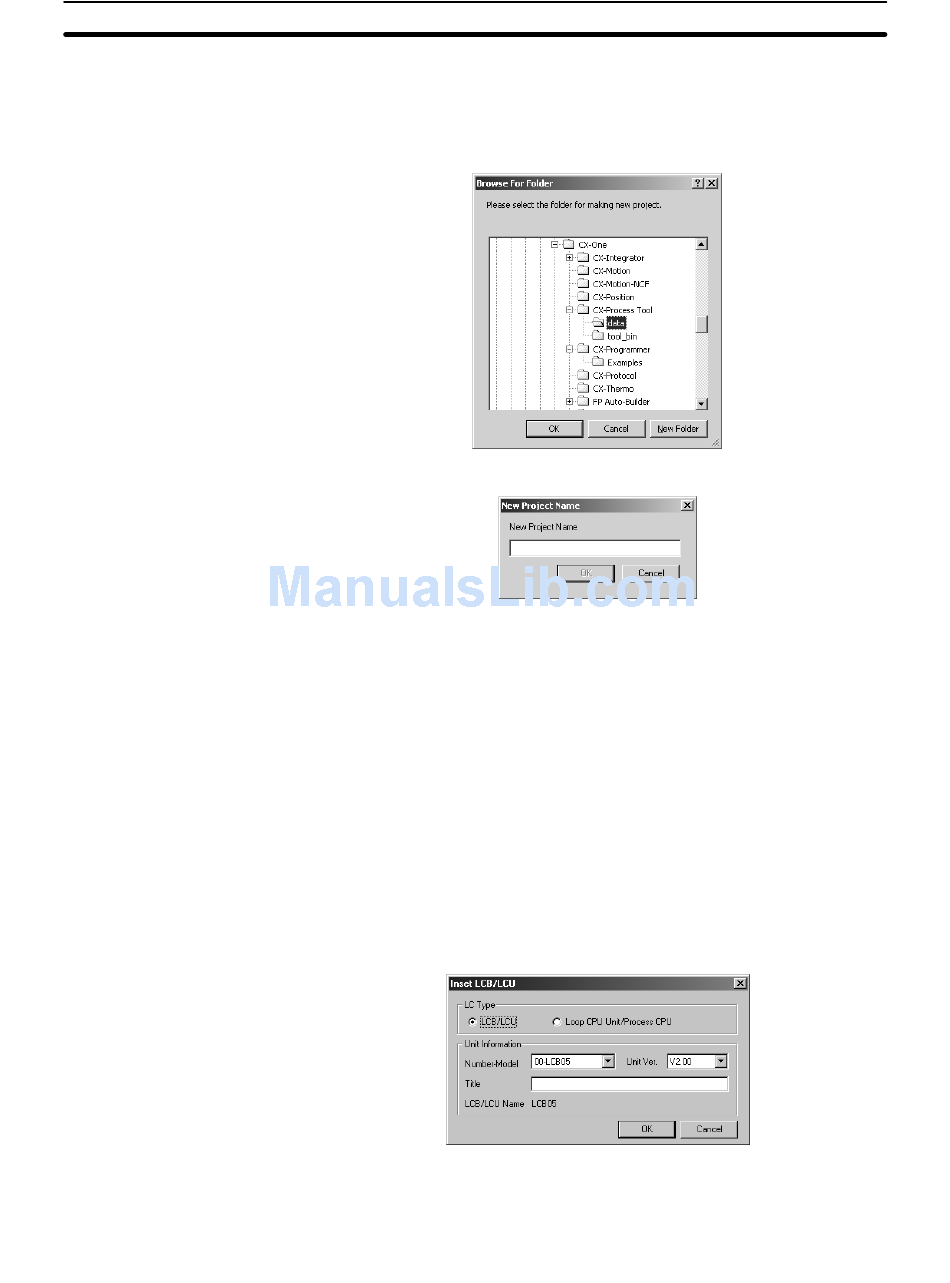

The following Browse for Folder Dialog Box will be displayed. Select the
location for saving the project folder.
2. The following dialog box will be displayed.
Enter the project name, and click the OK Button.
The new Project Workspace and a project folder with the project name will be
created. The project name set in the New Project Name Dialog Box will appear
as the Project Workspace name on the right of the top folder on the Project Work-
space Window. The name will appear in the title bar as well.
Note (1) The selection of New from the File menu does not just create new Project
Workspace but also creates a new project folder.
(2) If a project of the same name already exists, a dialog box will appear with a
message stating the existence of the specified project folder name and you
will be asked if the operation should be aborted.
(3) The following dialog box will appear.
Select the LCU/LCB number, input the title (name) of the LCU/LCB element,
and click the OK Button. The LCU/LCB element will contain the data for a
single Loop Controller. The default name, (LC Type: LCB/LCU, Number-
Model: LCB05), will appear. The title (name) of the LCU/LCB element can
be input within 26 characters.
Note If LCB Unit version 3.00 or later is selected, it will not be possible to
convert the data for use with LCB Unit version 2.00 or earlier as
described later. Confirm the LCB version before creating an LCB.
