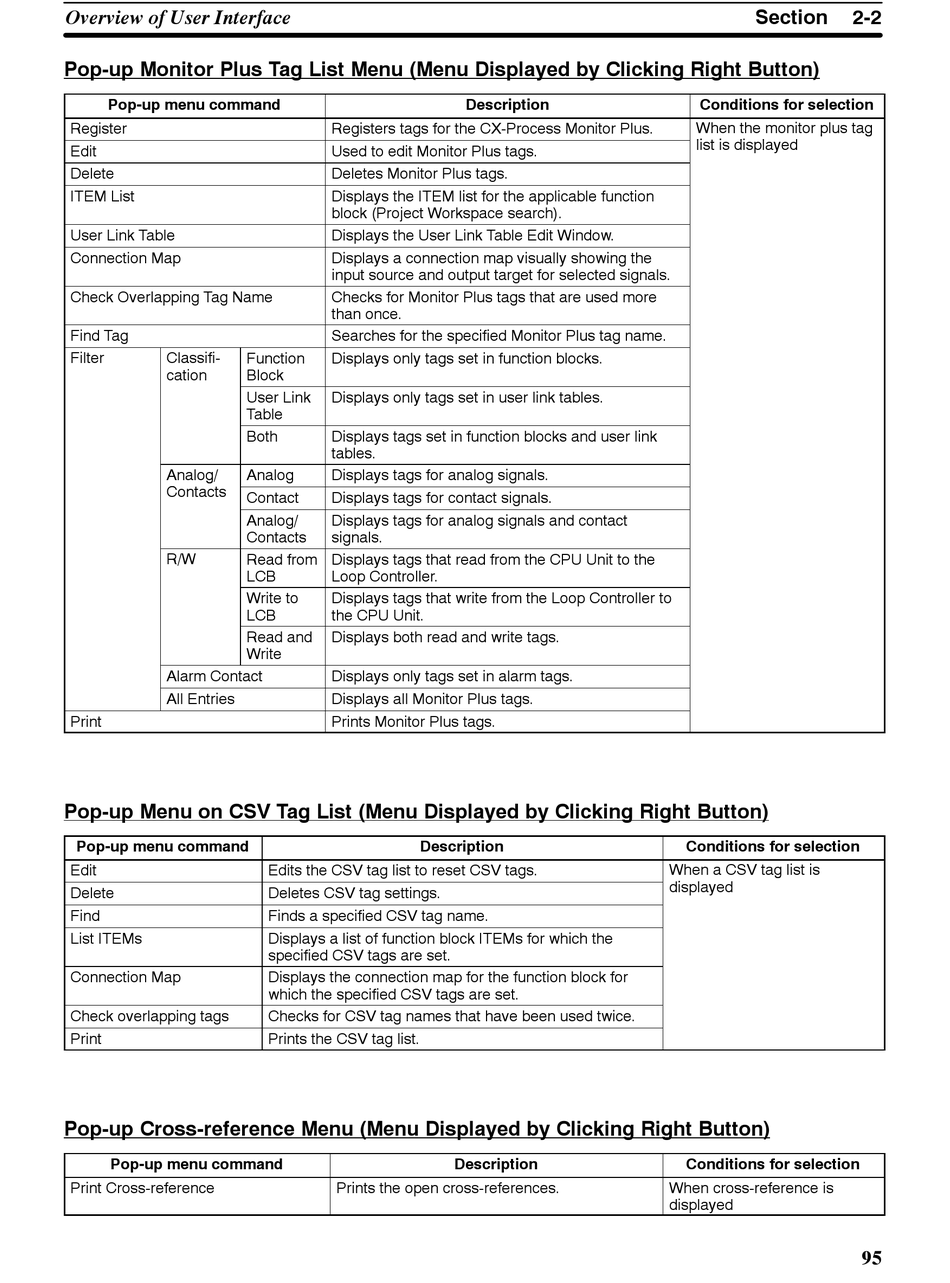

Overview of User Interface
Pop-up Monitor Plus Tag List Menu (Menu Displayed by Clicking Right Button)
Pop-up menu command
Register
Edit
Delete
ITEM List
User Link Table
Connection Map
Check Overlapping Tag Name
Find Tag
Filter Classifi-
cation ca o
Analog/ g/
C Contacts
R/W
Alarm Contact
All Entries
Print
Pop-up Menu on CSV Tag List (Menu Displayed by Clicking Right Button)
Pop-up menu command
Edit
Delete
Find
List ITEMs
Connection Map
Check overlapping tags
Print
Pop-up Cross-reference Menu (Menu Displayed by Clicking Right Button)
Pop-up menu command
Print Cross-reference
Registers tags for the CX-Process Monitor Plus.
Used to edit Monitor Plus tags.
Deletes Monitor Plus tags.
Displays the ITEM list for the applicable function
block (Project Workspace search).
Displays the User Link Table Edit Window.
Displays a connection map visually showing the
input source and output target for selected signals.
Checks for Monitor Plus tags that are used more
than once.
Searches for the specified Monitor Plus tag name.
Function Displays only tags set in function blocks.
Block
User Link Displays only tags set in user link tables.
Table
Both Displays tags set in function blocks and user link
tables.
Analog Displays tags for analog signals.
Contact Displays tags for contact signals.
Analog/ Displays tags for analog signals and contact
Contacts signals.
Read from Displays tags that read from the CPU Unit to the
LCB Loop Controller.
Write to Displays tags that write from the Loop Controller to
LCB the CPU Unit.
Read and Displays both read and write tags.
Write
Displays only tags set in alarm tags.
Displays all Monitor Plus tags.
Prints Monitor Plus tags.
Description
Edits the CSV tag list to reset CSV tags.
Deletes CSV tag settings.
Finds a specified CSV tag name.
Displays a list of function block ITEMs for which the
specified CSV tags are set.
Displays the connection map for the function block for
which the specified CSV tags are set.
Checks for CSV tag names that have been used twice.
Prints the CSV tag list.
Prints the open cross-references.
Description
Description
Section
Conditions for selection
When the monitor plus tag p
list is displayed li i di l d
Conditions for selection
When a CSV tag list is g
displayed di l d
Conditions for selection
When cross-reference is
displayed
