Creating Function Block

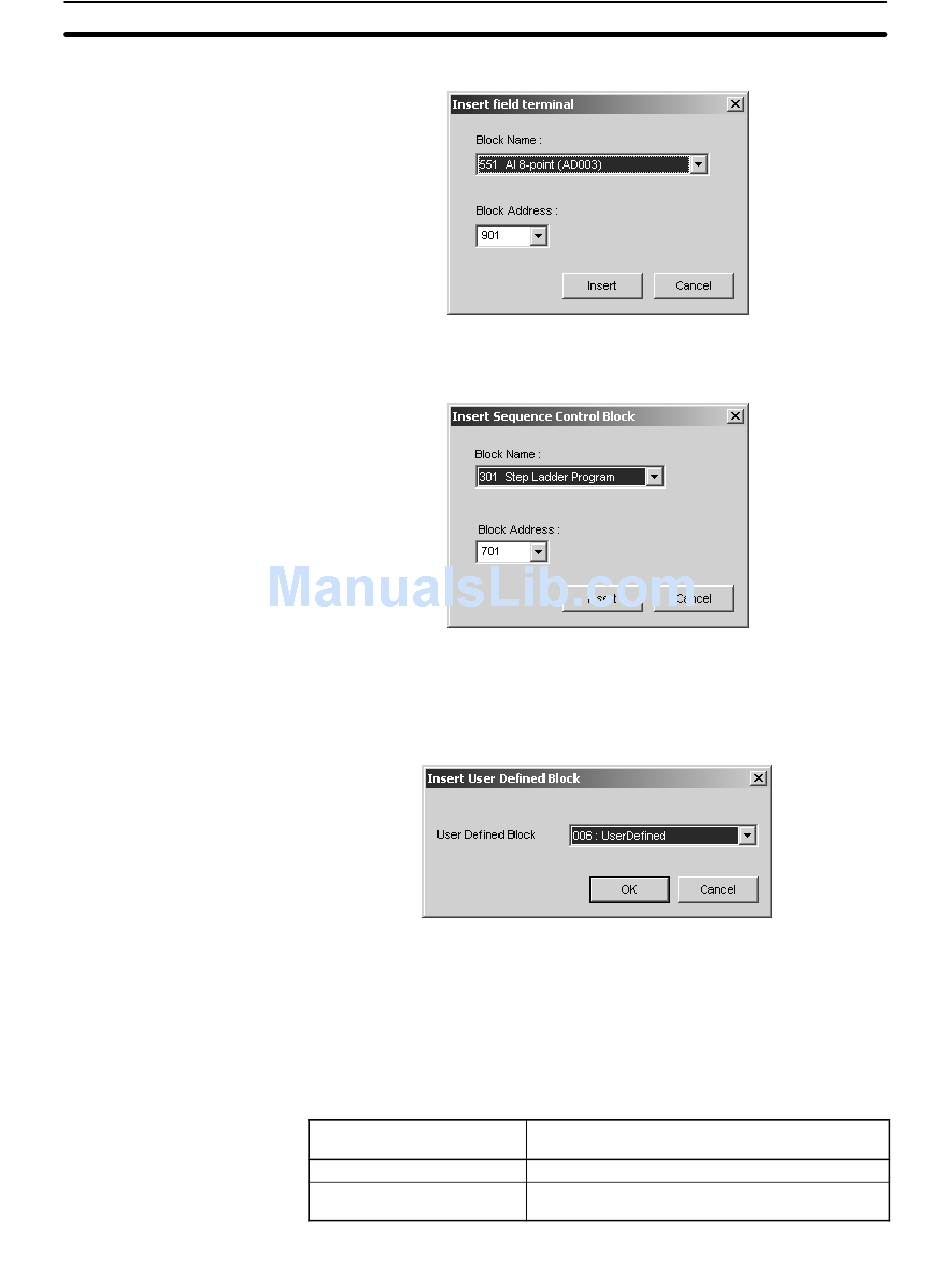

2) Field Terminal Block
Select the Field Terminal Block name and the block address to be regis-
tered.
3) Sequence Control Block
Select the Sequence Control Block name and the block address to be
registered.
4) Link Input or Link Output
No dialog box is displayed.
5) User-defined Block
Select the User-defined Block.
4. Click the Set Button. The block address will be automatically incremented.
• To allocate another function block of the same type or a different type, re-
peat the above registration procedure from step 3.
• When the maximum number of registrations has been reached, click the
Cancel Button.
Note The following restrictions apply for the number of function blocks that can be reg-
istered to each function block group.
Version
LCBjj Ver. 3.0 or later
LCBjj Ver. 2.0 or earlier,
or LC001
Maximum number of function blocks registered
per function block group
64 blocks
16 blocks
