Overview of User Interface

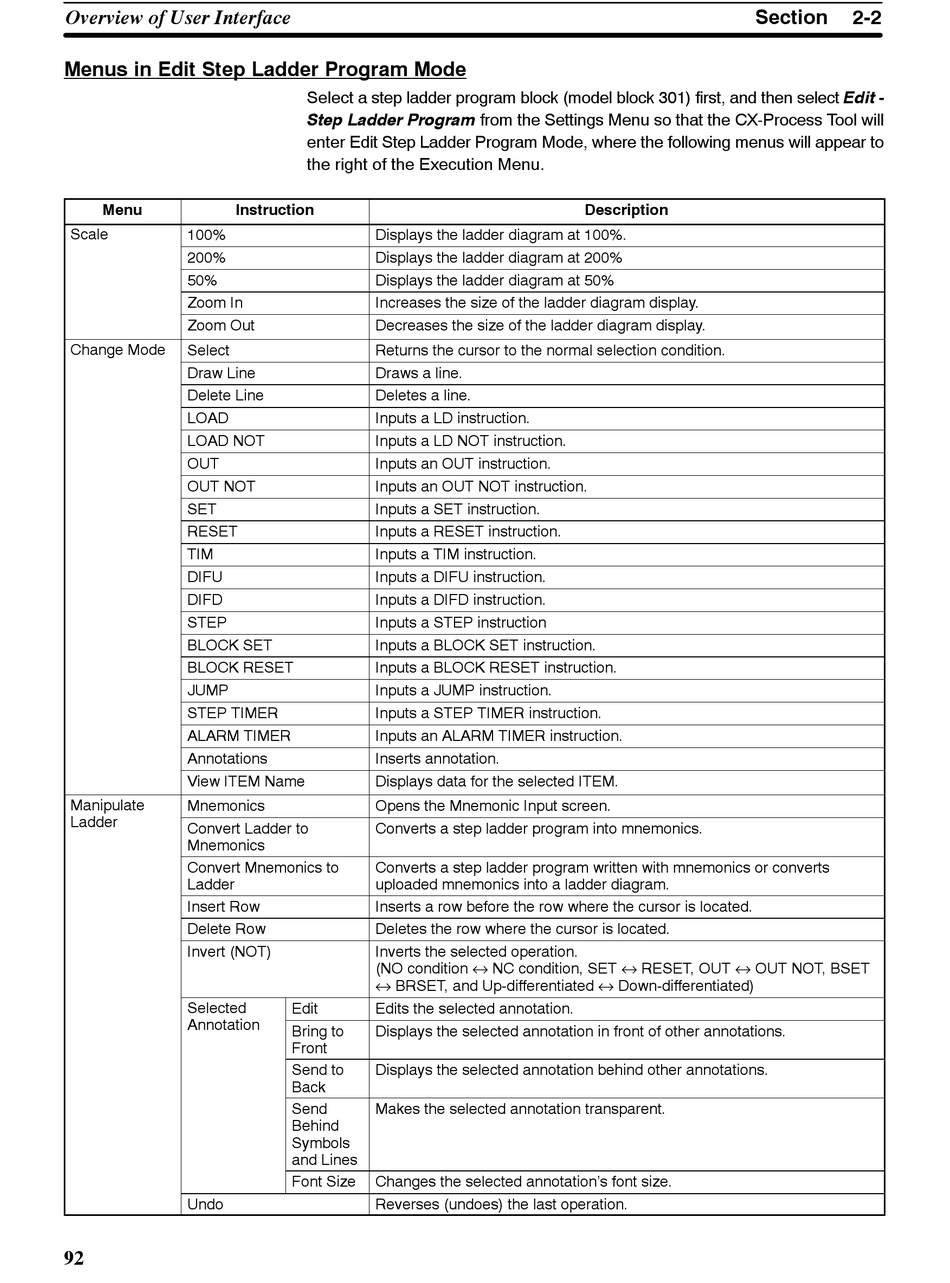

Menus in Edit Step Ladder Program Mode
Menu Instruction
Scale 100%
200%
50%
Zoom In
Zoom Out
Change Mode g Select
Draw Line
Delete Line
LOAD
LOAD NOT
OUT
OUT NOT
SET
RESET
TIM
DIFU
DIFD
STEP
BLOCK SET
BLOCK RESET
JUMP
STEP TIMER
ALARM TIMER
Annotations
View ITEM Name
Manipulate p Mnemonics
L dd Ladder
Convert Ladder to
Mnemonics
Convert Mnemonics to
Ladder
Insert Row
Delete Row
Invert (NOT)
Selected
Annotation A i
Undo
92
Select a step ladder program block (model block 301) first, and then select Edit -
Step Ladder Program from the Settings Menu so that the CX-Process Tool will
enter Edit Step Ladder Program Mode, where the following menus will appear to
the right of the Execution Menu.
Displays the ladder diagram at 100%.
Displays the ladder diagram at 200%
Displays the ladder diagram at 50%
Increases the size of the ladder diagram display.
Decreases the size of the ladder diagram display.
Returns the cursor to the normal selection condition.
Draws a line.
Deletes a line.
Inputs a LD instruction.
Inputs a LD NOT instruction.
Inputs an OUT instruction.
Inputs an OUT NOT instruction.
Inputs a SET instruction.
Inputs a RESET instruction.
Inputs a TIM instruction.
Inputs a DIFU instruction.
Inputs a DIFD instruction.
Inputs a STEP instruction
Inputs a BLOCK SET instruction.
Inputs a BLOCK RESET instruction.
Inputs a JUMP instruction.
Inputs a STEP TIMER instruction.
Inputs an ALARM TIMER instruction.
Inserts annotation.
Displays data for the selected ITEM.
Opens the Mnemonic Input screen.
Converts a step ladder program into mnemonics.
Converts a step ladder program written with mnemonics or converts
uploaded mnemonics into a ladder diagram.
Inserts a row before the row where the cursor is located.
Deletes the row where the cursor is located.
Inverts the selected operation.
(NO condition ↔ NC condition, SET ↔ RESET, OUT ↔ OUT NOT, BSET
↔ BRSET, and Up-differentiated ↔ Down-differentiated)
Edit Edits the selected annotation.
Bring to Displays the selected annotation in front of other annotations.
Front
Send to Displays the selected annotation behind other annotations.
Back
Send Makes the selected annotation transparent.
Behind
Symbols
and Lines
Font Size Changes the selected annotation's font size.
Reverses (undoes) the last operation.
Section
Description
2-2
