3-1-10 Saving the Project Workspace

Saving Data in the Current Project Folder
Saving Data in a Different Project Folder
1, 2, 3...

3-1-11 Opening a Project Workspace

1, 2, 3...
128
Save the created Project Workspace as a project file (.mul) in a folder of the proj-
ect name.
When saving the project file, all the following files will be saved in the same proj-
ect folder. These files cover all the function block data in the Loop Controllers
under one CPU Unit, except the monitor tag data.
File type
Function block files
Block diagram information files
Mnemonics/Ladder diagram
information files
Comment file
CSV tag setting file
CX-Server configuration file
Job information files
Loop Controller configuration
file
Data file of User Link Table
(CSV format)
Data file of Sequence Table
Note The monitor tag data is saved as a monitor tag file.
Select Save from the File Menu. The created Project Workspace data will be
saved in the project folder specified with New in the File Menu.
1. Select Save As from the File Menu.
2. Specify the folder where the created Project Workspace data will be saved.
Click the OK Button.
3. The Project Workspace data will be saved in the specified, different project
folder.
Note The Project Workspace data will be saved by default in the CX-Pro-
cess Tool data folder.
Note If the computer crashes or there is a power failure, the function block files (.ist)
may not be saved. It is recommended to save the Project Workspace data regu-
larly.

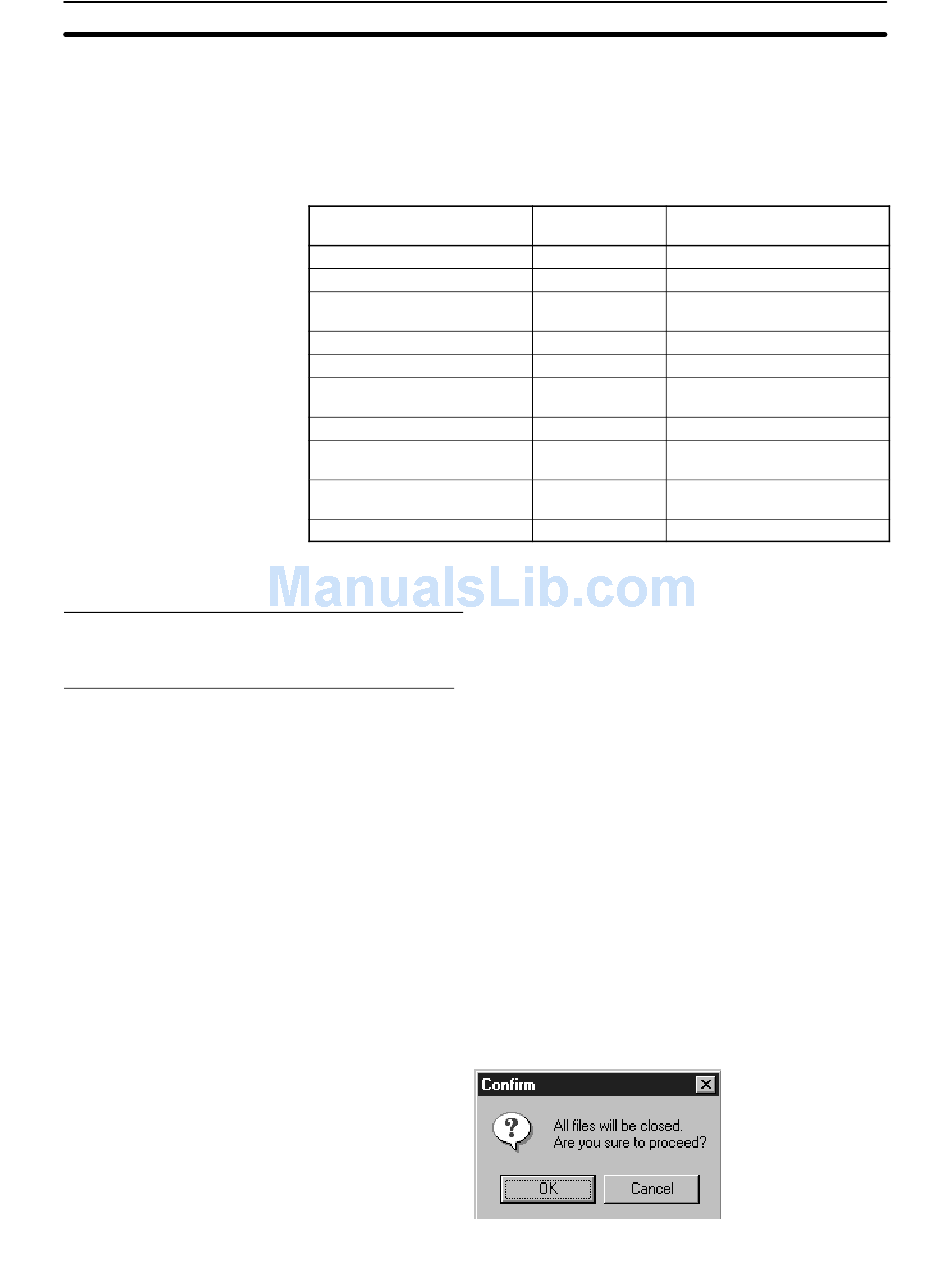

Use the following procedure to open an existing Project Workspace.
1. Select Open from the File Menu.
The following dialog box will appear.
File name
extension
.ist
.mtbd
.mtld
.cmt
project_name.csv
.cdm When the CX-Server is set as
the communications driver
.sjb
.lcb
LnkTable.csv
.stbl
