Creating Function Block
116
3. Click the right mouse button at the pasting position in the right pane. Select
Paste: Function Block from the pop-up menu.

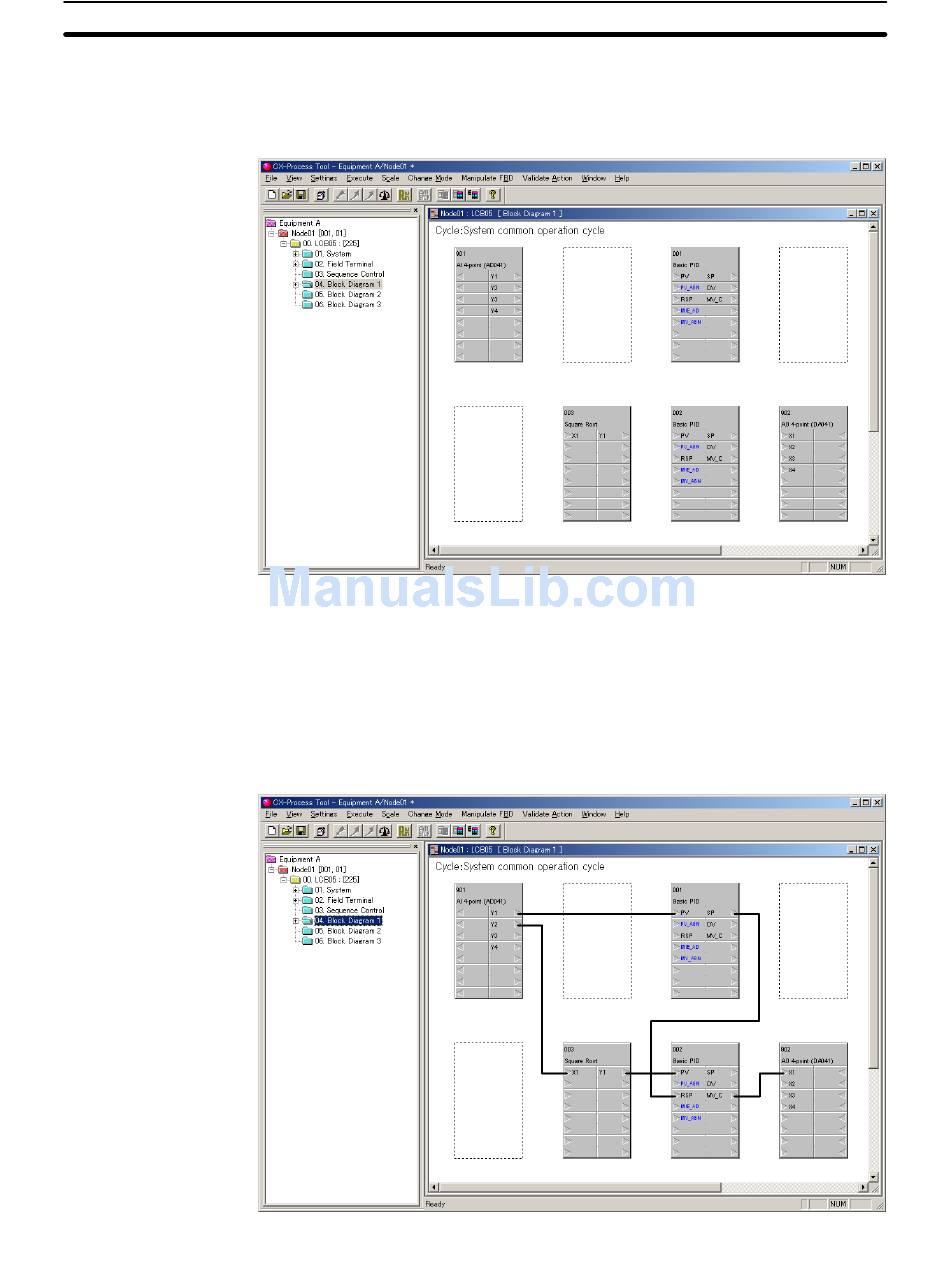

The function blocks will be pasted as shown below.
To change the position of a function block, select the block (the cursor will
change to a hand) and drag it to the desired position.
4. The cursor will automatically be changed to a pencil icon when the cursor is
moved to the connection's start point.
5. Click the start point of the connection and double-click the end point. The
software connection will appear. To bypass the route, click the apex of the
corner so that the direction can be changed by 90.
Section 3-1
