Overview of User Interface
Jumping
Copying
1, 2, 3...
72
Descriptions of Items
Output Window
Project Information
Display
Results List Display
• Double-clicking on an error message causes the display to jump to the relevant
location.
• Pressing the F4 Key causes the display to jump to the relevant location for the
next error message.
Note The display does not jump to the relevant display message location in the follow-
ing cases:
• When the node file, LCB or LCU element, function block group, or function
block at the specified jump destination does not exist.
• When the specified jump destination is not an active node.

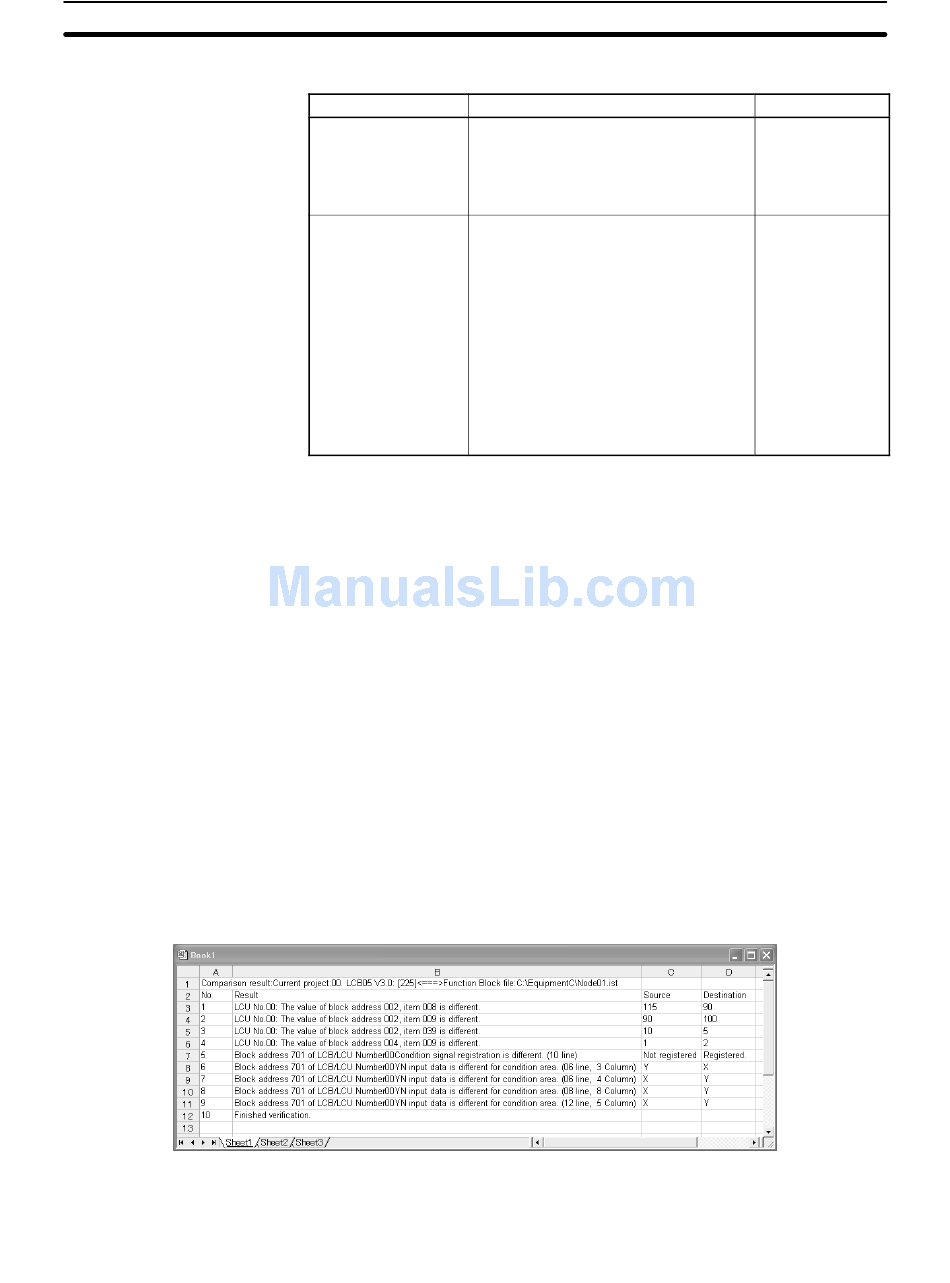

1. Select Copy All from the pop-up menu in the Output Window. (Right-click to
display the pop-up menu.)
2. Select Paste to paste the contents of the Output Window display into a
spreadsheet, such as one created with Excel.
Note To clear the display, select Clear from the pop-up menu.
Contents
Executed operations and related project
information are displayed.
Execution results are displayed for the
following operations:
• Comparisons
• CX-Process Monitor, CSV, and CX-Pro-
cess Monitor checks
• Step ladder program assembly and re-
verse assembly
• Sequence table error checks
• User-defined block exporting and im-
porting
• Program transfers (displayed only
when an error occurs)
Section 2-2
Example
Result of model
number
conversion:
LCB05GTC V3.0
to LCB05 V3.0
Block Number
021 cannot be
converted (Block
Number 001).
