Operation Check
Operation Check of Block Diagrams
Changing to Block
Diagram Validate Action
Mode
1, 2, 3...
272
Display of analog
signal values
Loop Controller
Take the following steps to change the CX-Process Tool to Validate Action
Mode.
1. Select the block diagram folder and select Edit/Block Diagram from the
Settings Menu. The block diagram will appear.

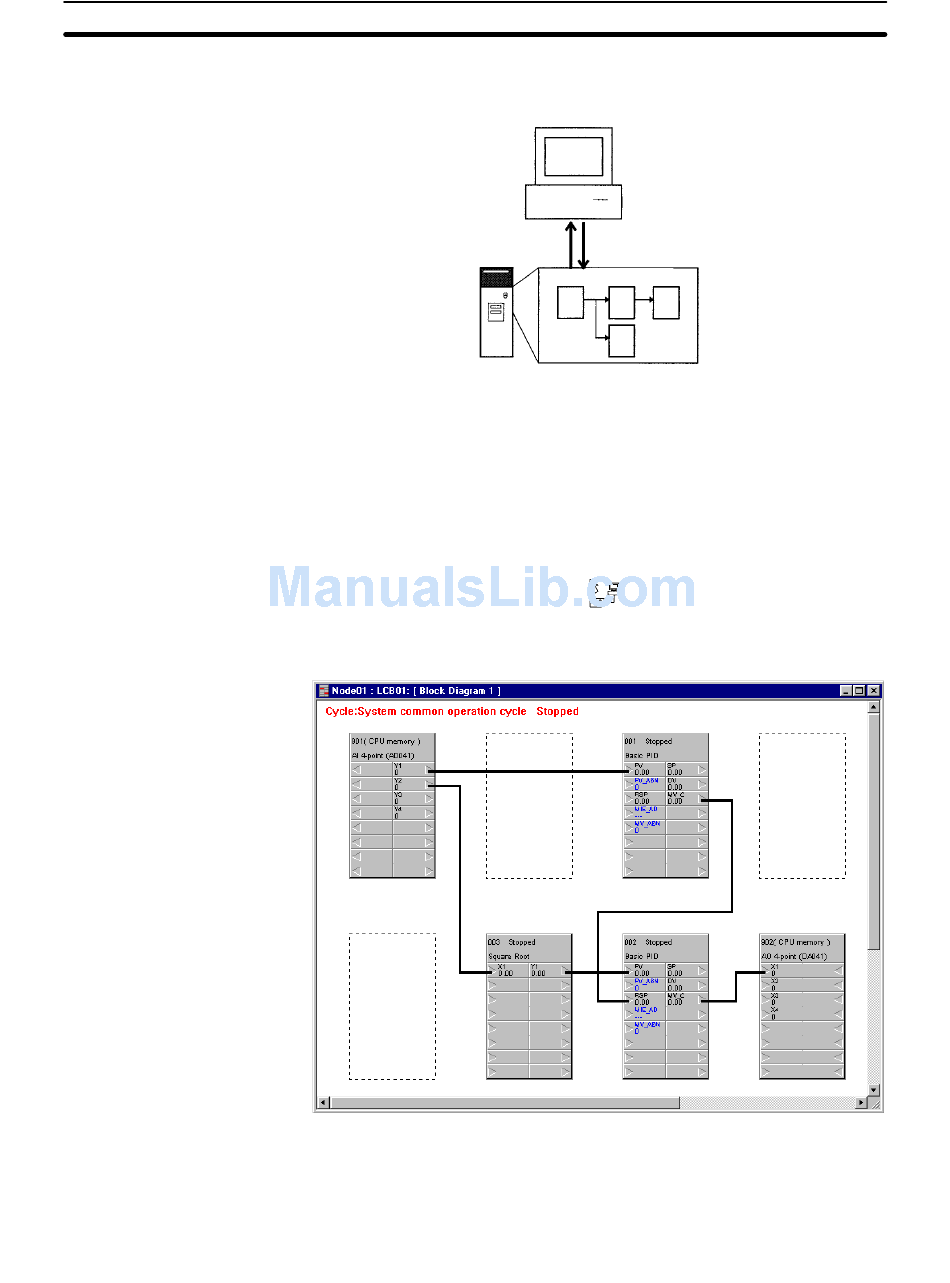

2. Select Start from the Validate Action Menu. The following screen will appear
and the cursor will change to the
When the Loop Controller is not operating, "Stopped" in red will appear on the
upper left. Nothing will be displayed when the Loop Controller is in operation.
CX-Process Tool
Forced change of analog
output signals
Stop block operation command
Block connection
icon.
Section 4-6
