Exporting User-Defined Blocks To Files - Omron CX-PROCESS TOOL V5.2 - REV 10-2010 Operation Manual

Creating User-defined Blocks

3-6-5 Exporting User-defined Blocks to Files

178

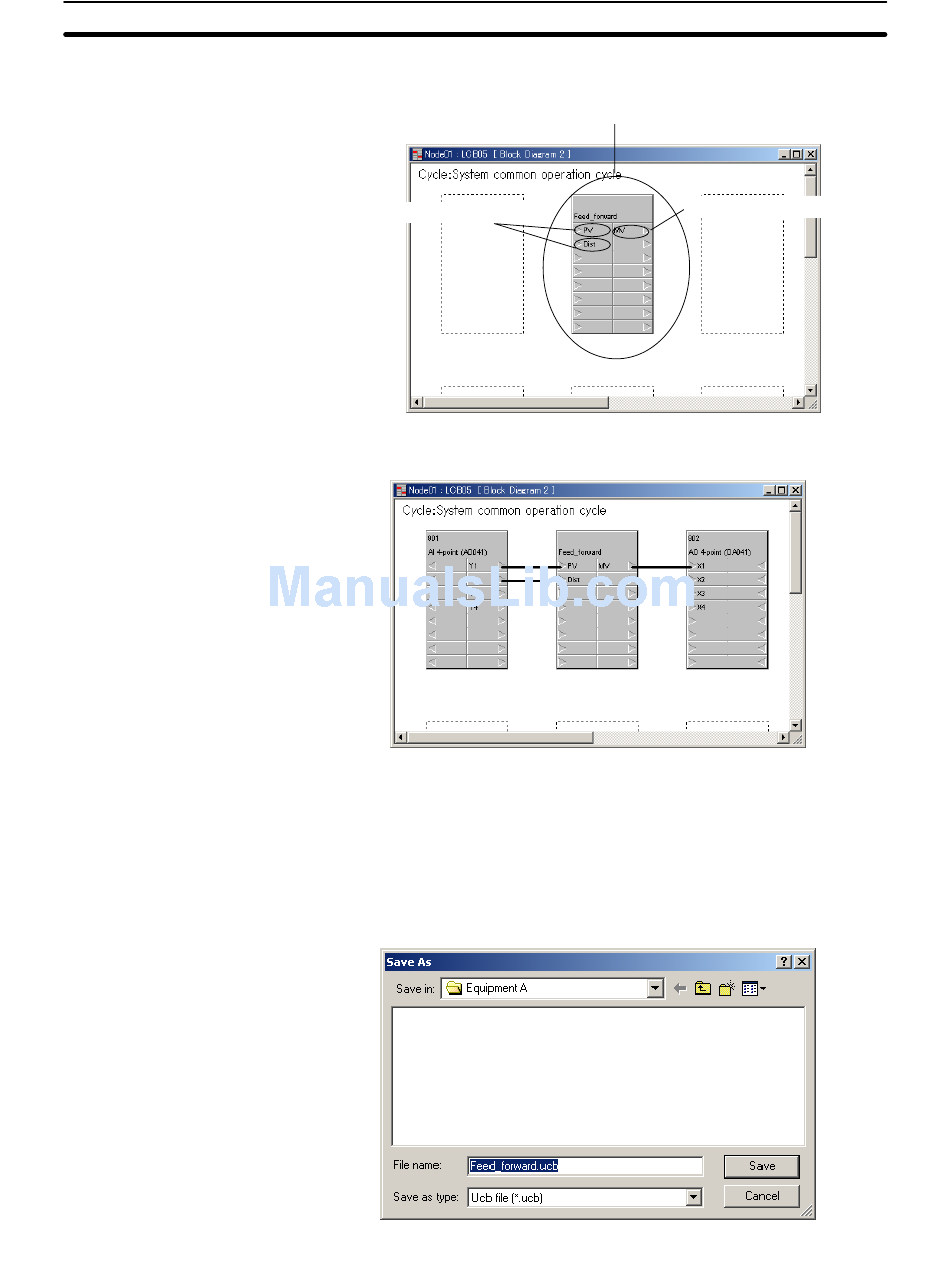

block showing the comments set for the input interface and the comment set
for the output interface.
Input interface: PV and DIST
2. Register analog input and analog output terminals and connect the user-de-
fined block between them, as shown below.
Note The user-defined names for a user-defined block can be changed by selecting
the block on the Project Workspace tree, right-clicking, and selecting Change
Comment.
Select the user-defined block to be exported to a file (.ucb) and select Settings –
User-defined Block – Export. The following dialog box will be displayed. Input
the file name and save the file.
User-defined function block
Output interface: MV
Section 3-6
