Operation Check
Forced-setting or
Forced-resetting of
Contact ITEMs
1, 2, 3...
Example
Take the following steps to set or reset the contact ITEMs.
Set or reset the input contact with the arithmetic operation of the source function
block stopped. If it is an output contact, set or reset the contact with the operation
of the destination function block stopped.

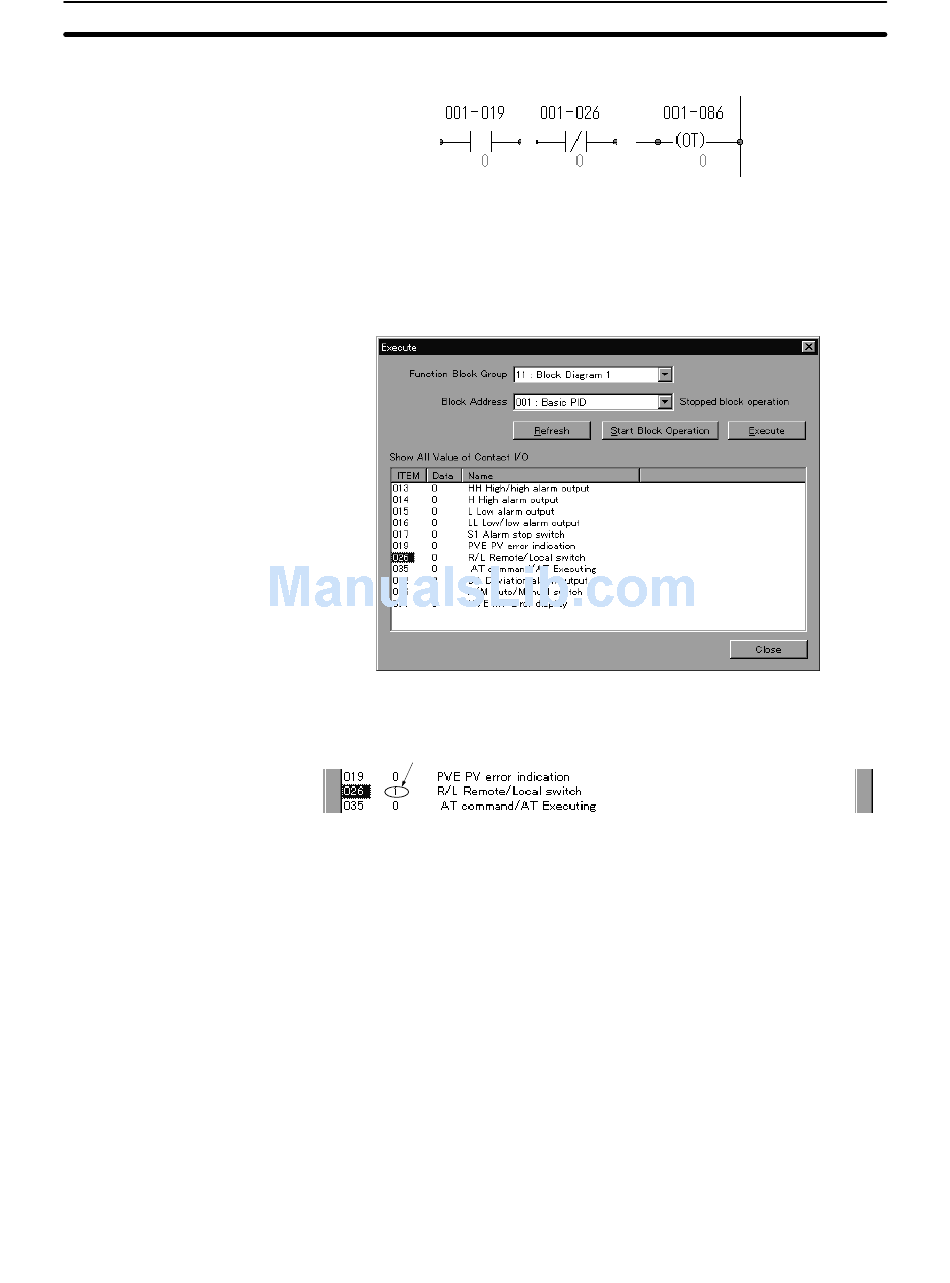

1. Double-click the contact. The following Execute Dialog Box will appear.
2. Double-click ITEM and change the data to 1. (Example: Change ITEM 026
to 1.)
Changed to 1.
3. Click the Stop Block Operation Button. (Example: 001. The operation of
the Basic PID Block will stop.)
