Creating Function Block
Using the Free Location Mode
1, 2, 3...
112
1. Select the folder for block diagram 1. Select Settings – Edit – Edit/Block

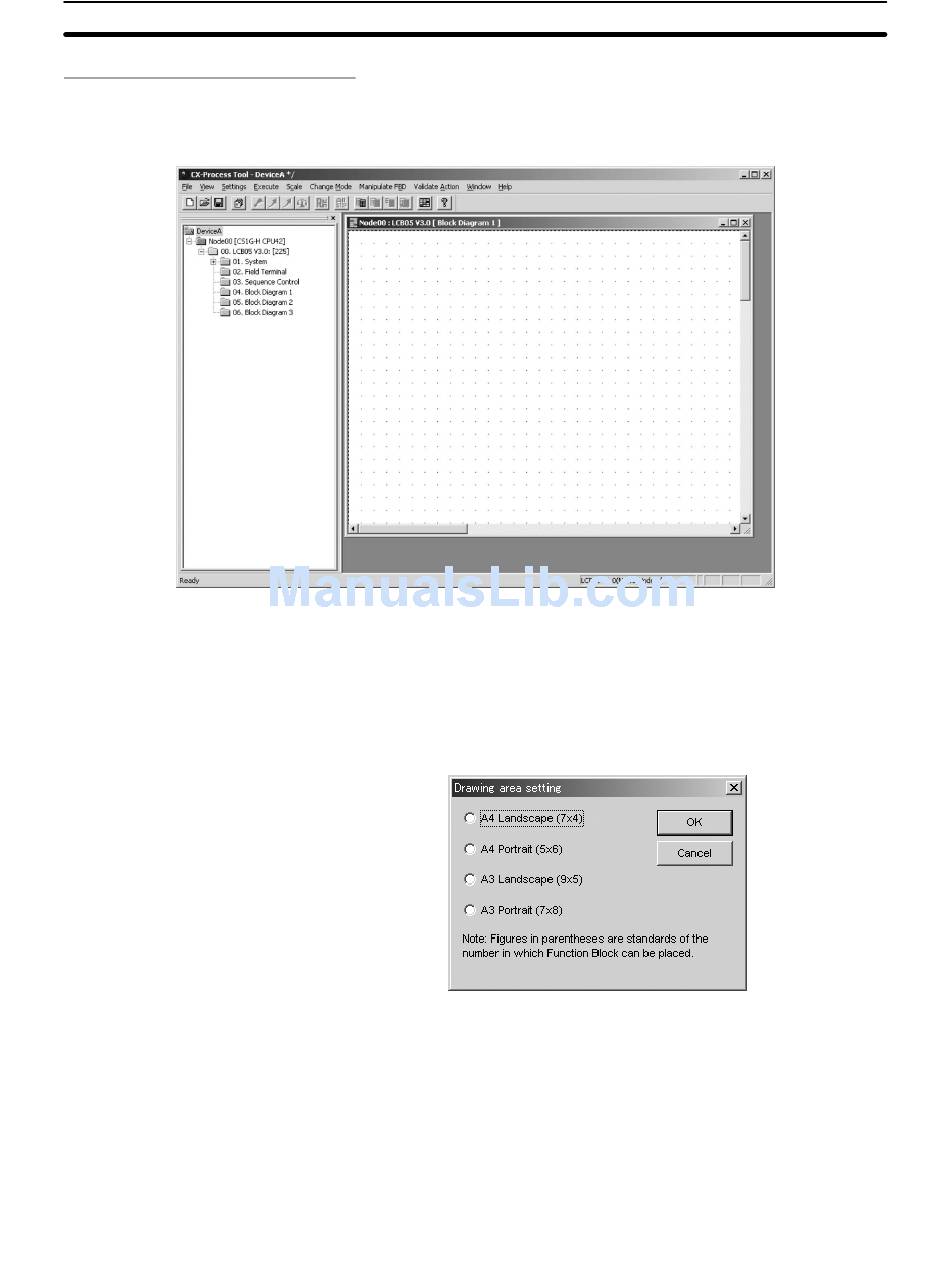

Diagram or double-click the folder for block diagram 1. The following win-
dow will be displayed.
• To zoom out from the display, select Zoom Out from the Scale Menu or
press the Alt + Right Cursor Keys.
• To zoom in from the display, select Zoom In from the Scale Menu or press
the Alt + Left Cursor Keys.
2. Setting the Block Diagram Width
Select File – Print – Block Diagram. The following Drawing Area Setting
Dialog Box will be displayed.
Select the drawing area and click the OK Button.
• Up to 64 function blocks can be used in one block diagram. The figures in
parentheses in the dialog box are rough standards taking visibility into ac-
count.
3. Changing the Grid Width
Select Change Mode – Grid Mode or click the block diagram and select
Display Mode – Grid Mode.
Wide, Middle, Narrow, and Grid OFF can be selected from the submenu.
Select the appropriate width. The function block and connected lines will
move along the grid. The default setting is Middle.
