Setting Options

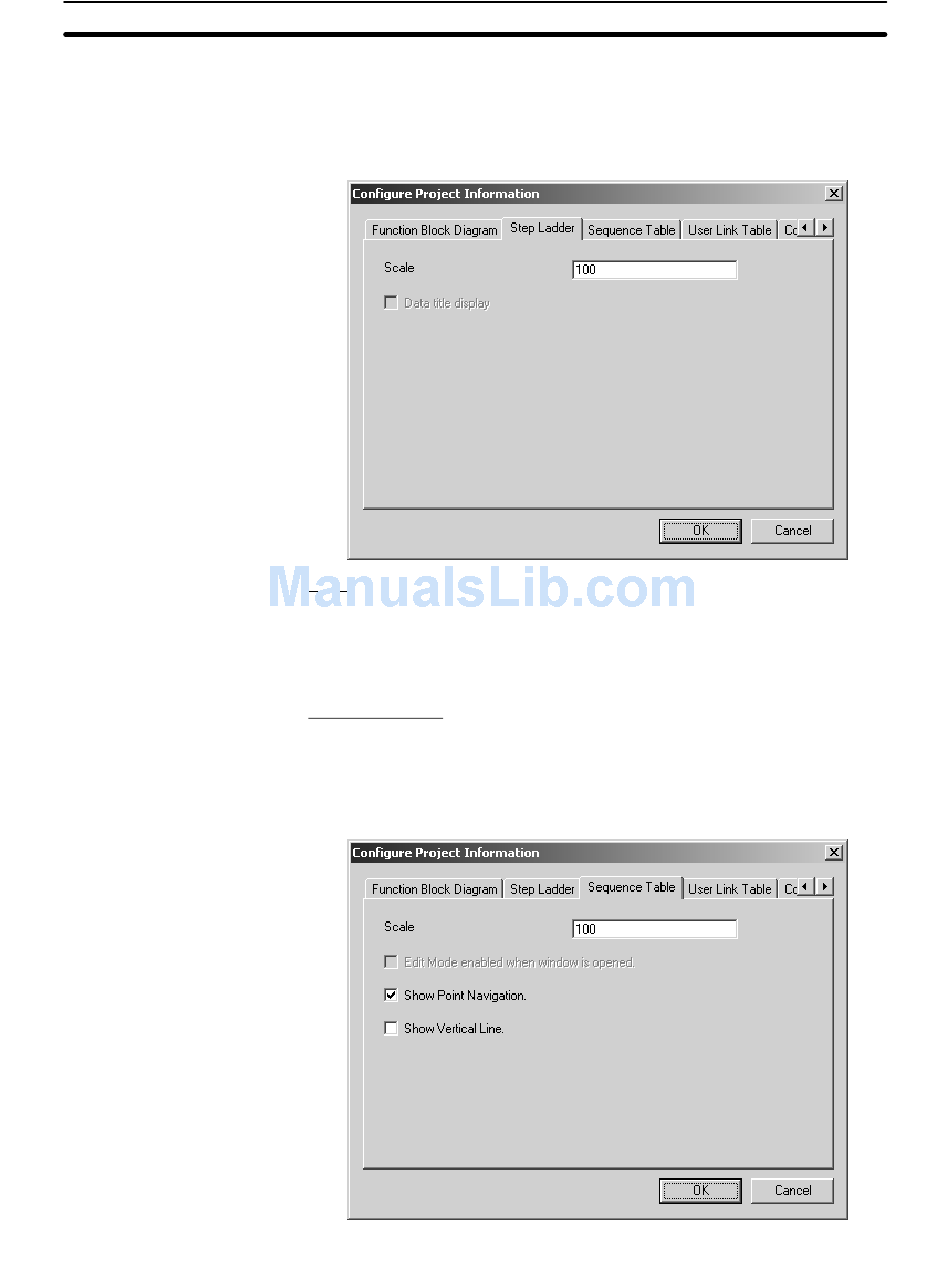

3-12-6 Step Ladder Tab Page

3-12-7 Sequence Table Tab Page

Note The setting will not apply to any function block diagrams that are open when the
setting is changed. Close the function block diagram window and then reopen it
to see the results of changing this option.
Scale
This option sets the zoom factor for ladder diagrams. (This option performs the
same function as the Scale Menu in Ladder Diagram Mode.)
100 (default): The normal display size
50: Half of the default size
200: Twice the default size
Data title display
When this option is selected, information is displayed on selected ITEMs. This
option is not selected by default. (This option performs the same function as
Data title display on the Change Mode Menu in Ladder Diagram Mode.)
Section 3-12
231
