Setting Options

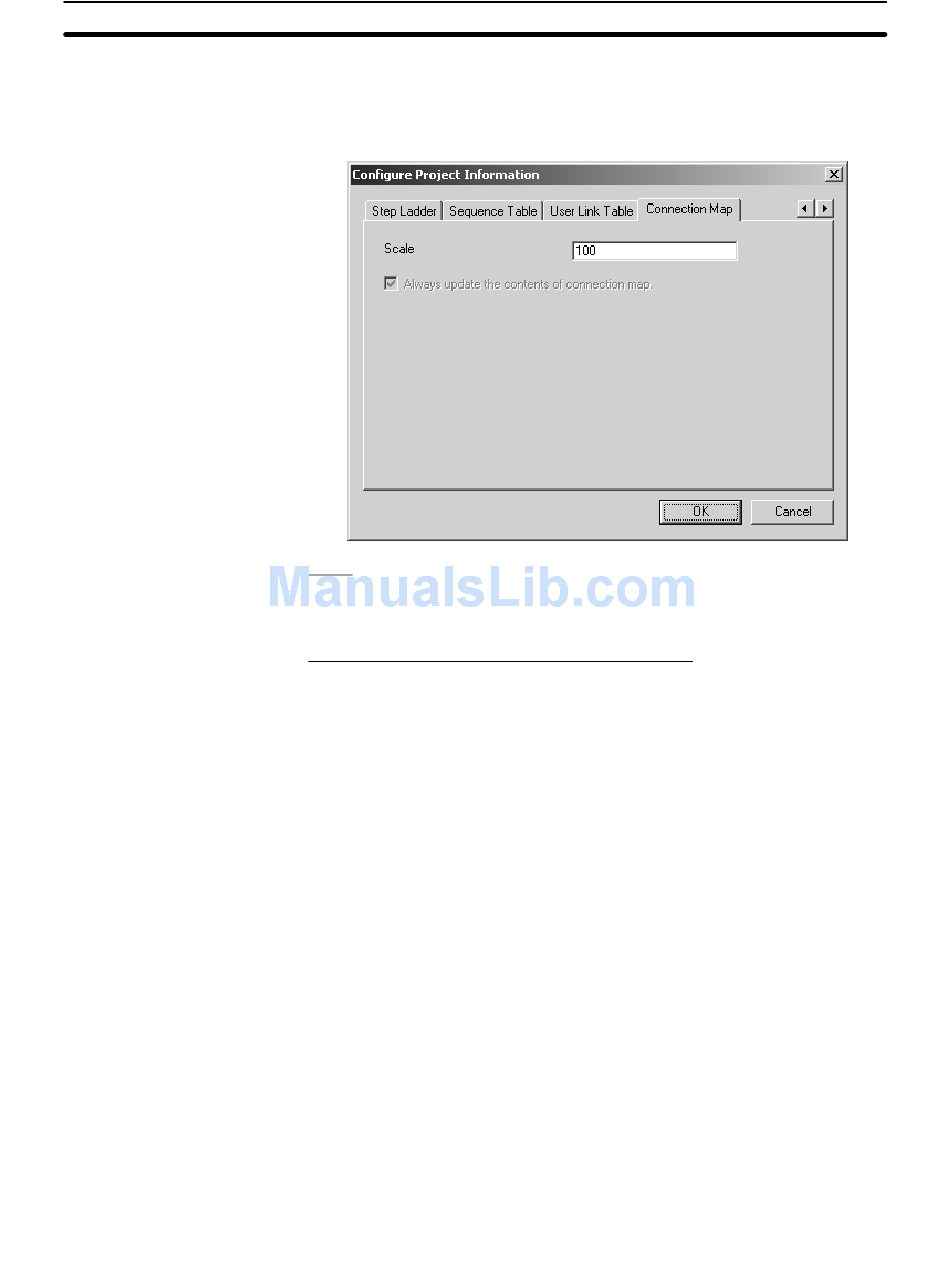

3-12-9 Connection Map Tab Page

Note The connection map is displayed by selecting Connection Map from the

Execute Menu.

This option sets the zoom factor for the connection map. ( This option performs

the same function as the Change Scale command on the pop-up menu display

after right-clicking on the connection map.)

Always update the contents of connection map.

When this option is selected (the default), the connection map is continuously

When this option is not selected, the connection map is not continuously re-
