Initial Settings for Online Connections Section 4-2

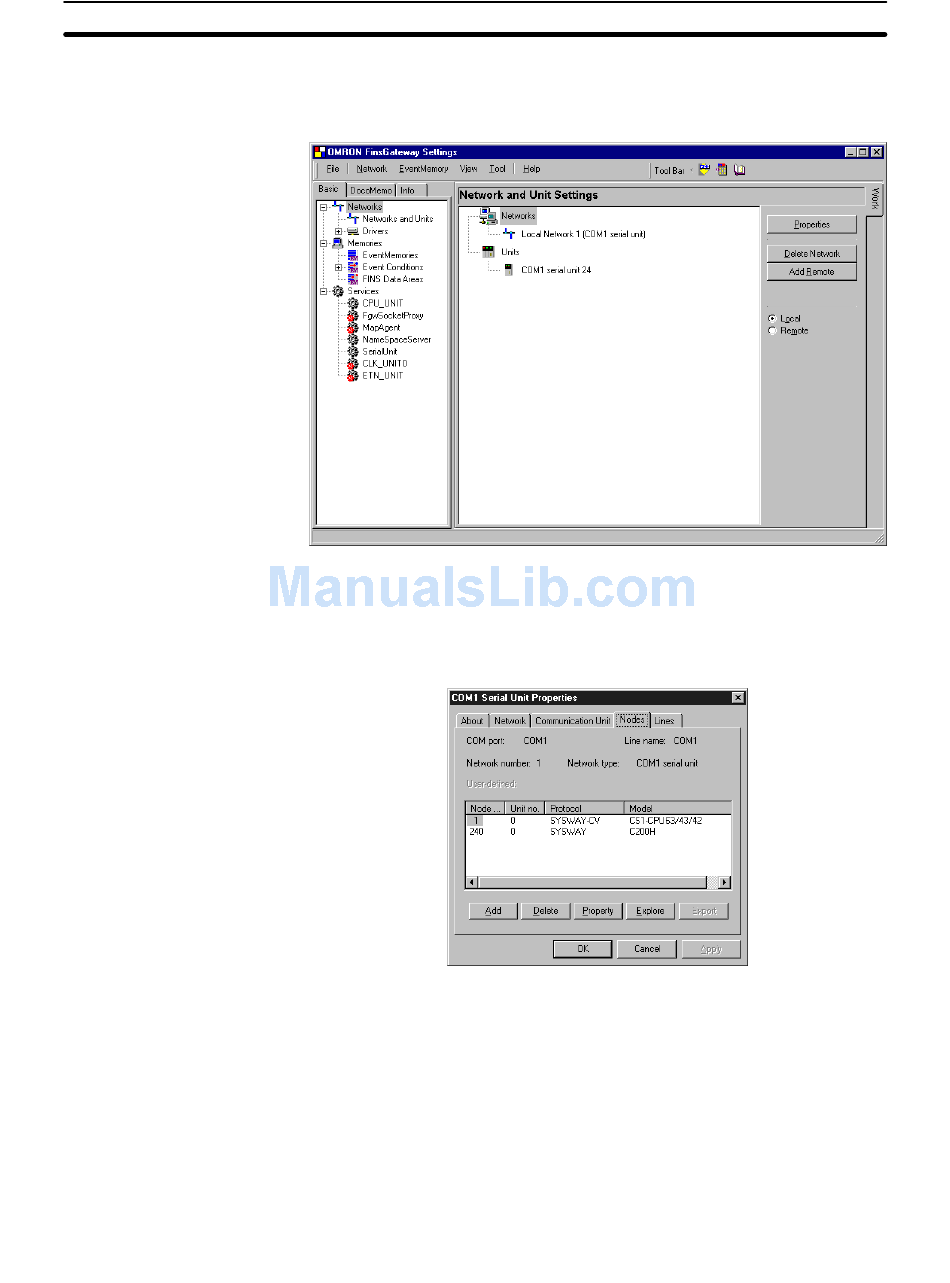

Select FinsGateway Settings from the FinsGateway Menu. The following
dialog box will appear.
Select Network/Driver from the directory tree on the left side of the window
and double-click SerialUnit in the compatible drivers listed on the right side
of the window. Click the Node Tab to display the following dialog box.
After serial initialization, the node number will be set to 1 (actually 01) and
the protocol will be set to SYSWAY CV. To modify the settings, click the
Properties Button.
2. FinsGateway Settings
The FinsGateway Settings start and stop communications service.
If the Controller Link or Ethernet is being used, start the FinsGateway com-
munications service from the FinsGateway Settings.
Select FinsGateway Settings from the FinsGateway Menu and select Ser-
ialUnit from the Services directory tree on the left side of the window.
