Operation Check
Edit Sequence Tables Online (CX-Process Tool Version 3.2 or Higher)
Caution
!
Caution
!
the signal in the function block ITEM list and then download the data. The results
will be reflected in the sequence table.
When downloading a sequence table for the LCB05 (unit Ver. 1.5 or later) that
has been edited online with the CX-Process Tool version 3.2 or higher, confirm
that the system will operate normally with the edited sequence. If the sequence
is not suitable for operation, unexpected operation may result.
Confirm in advance the conditions at any node for which the sequence table is
being edited over a Controller Link or Ethernet network. Not doing so may result
in unexpected operation.
A sequence table can be edited online while the Loop Controller is running (see
note) and while the sequence table is active without stopping step progression.
To do this, the CX-Process Tool must be version 3.2 or higher and the LCB05
version 1.5 or later must be used.
Note Use the normal downloading procedure when the Loop Controller is stopped.
The following items can be edited online.
• Signals can be changed, added, or deleted for conditions and actions.
• Y/N specifications for rules can be changed, added, or deleted.
• Steps can be changed, added, or deleted.
• THEN sections can be changed, added, or deleted.
Note Rules and the number of conditions cannot be expanded.
Procedure for Online Editing
The sequence table is edited on the Action Validation Screen and then down-
loaded. This procedure is performed while the Loop Controller is running.
Section

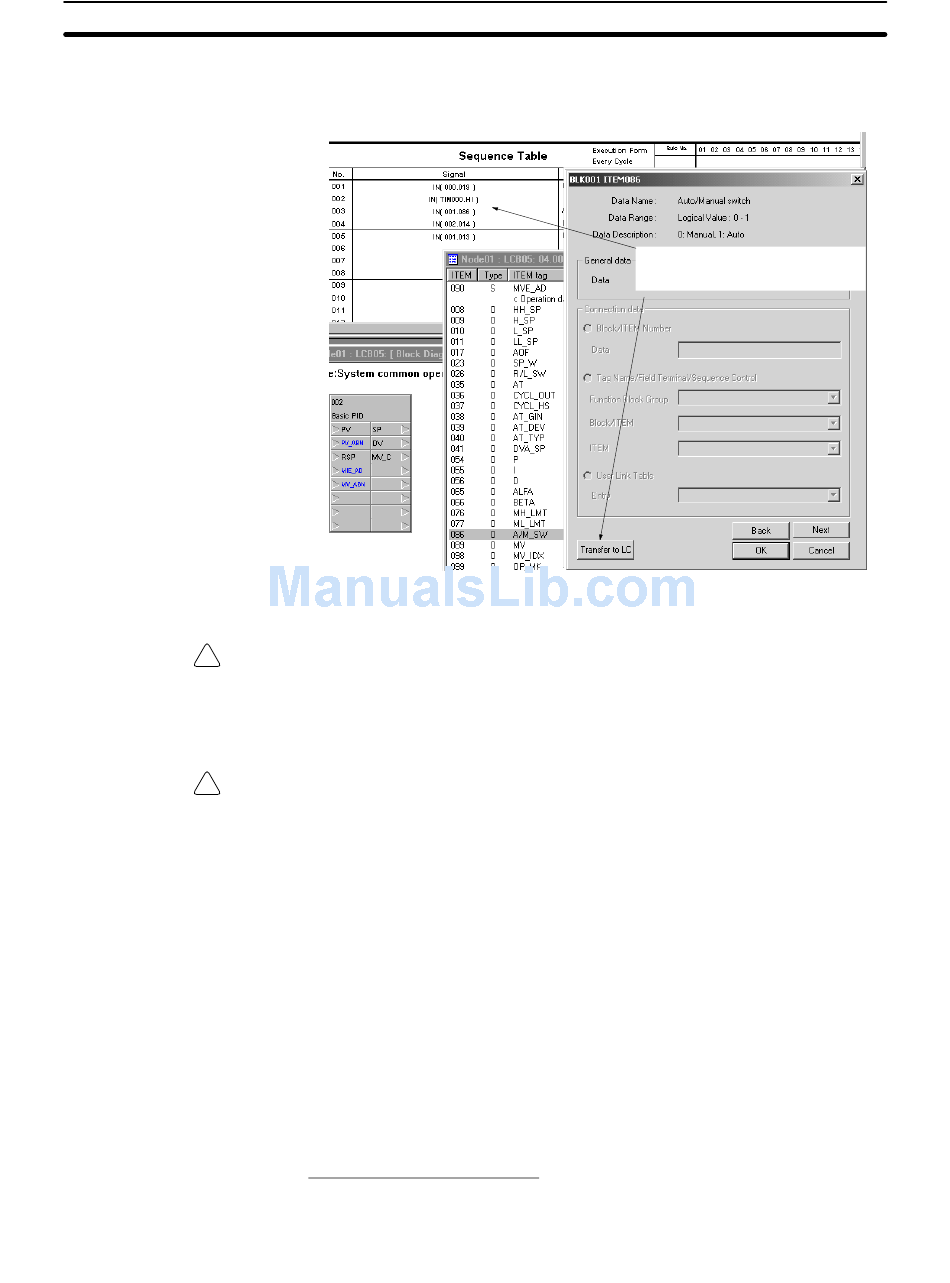

Change the value from the ITEM list
for the function block and click the
Transfer to LC Button.
