Creating Step Ladder Program Instructions
b) Input "LOAD" and not "LD," otherwise the instruction will not be
accepted.
d) Click the Operand Field. If it is a contact ITEM, input the operand (i.e.,
block address and ITEM number) in six digits. Example: 001013
Note In the ladder diagram, "–" will appear between the block address and
ITEM number. In mnemonics, do not insert "–" between the block ad-
dress and ITEM number when inputting data.
e) Click a blank area or press the Return Key so that the highlighted portion
will return to normal.

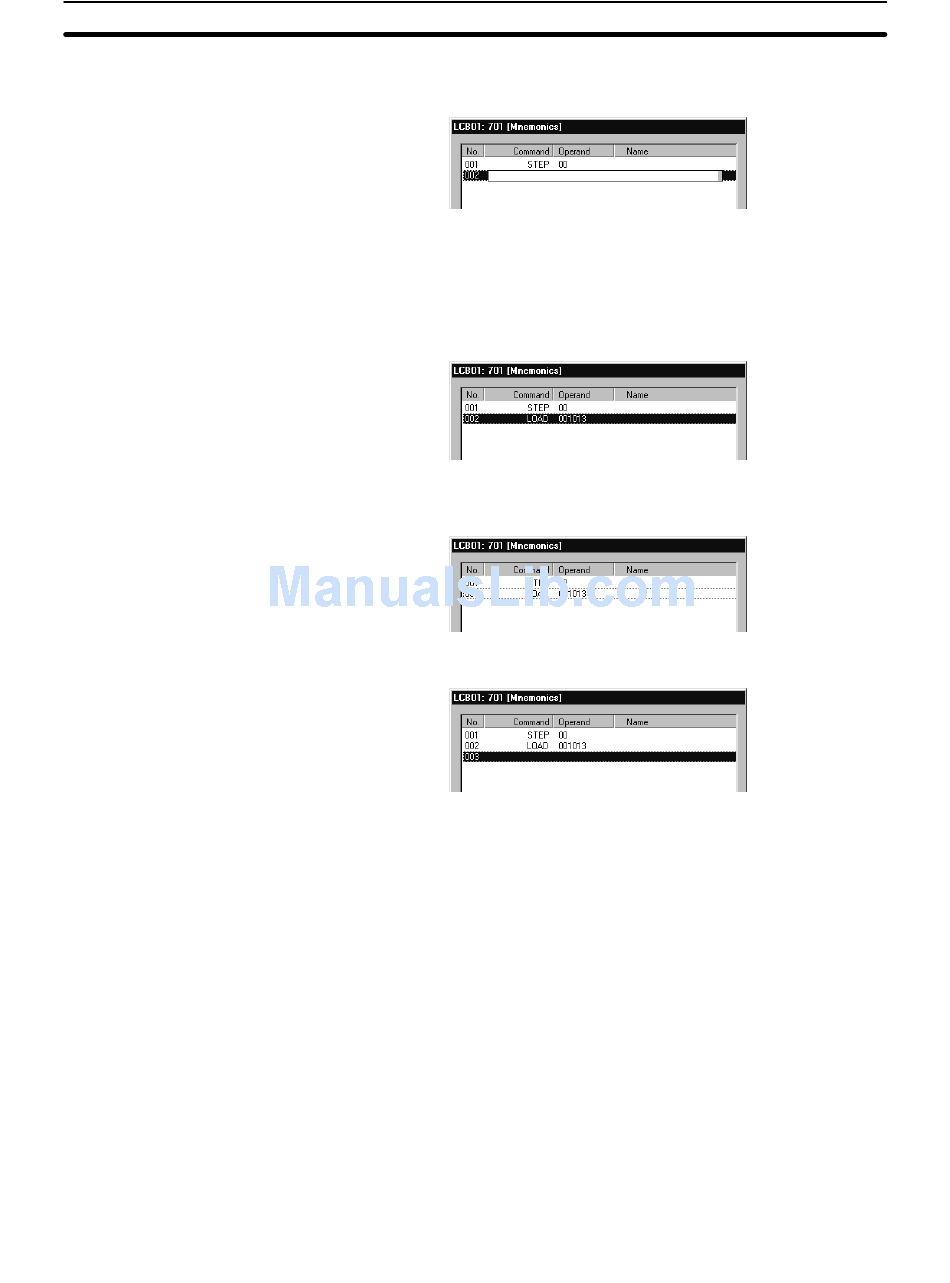

f) Click Insert Row. The next row will be highlighted as shown below.
g) Input the remaining instructions.
h) Click the OK Button.
If nothing can be input, press the Esc Key.
Note To delete a row, highlight the row and click Delete Row.
