Using SCADA Software
Creating SCADA Tag Files
150
ceive All Blocks (461) must be registered for Loop Control Units and 2) CSV tags
must be set for any Expanded CPU Unit Terminal function blocks for Loop Con-
trol Units.

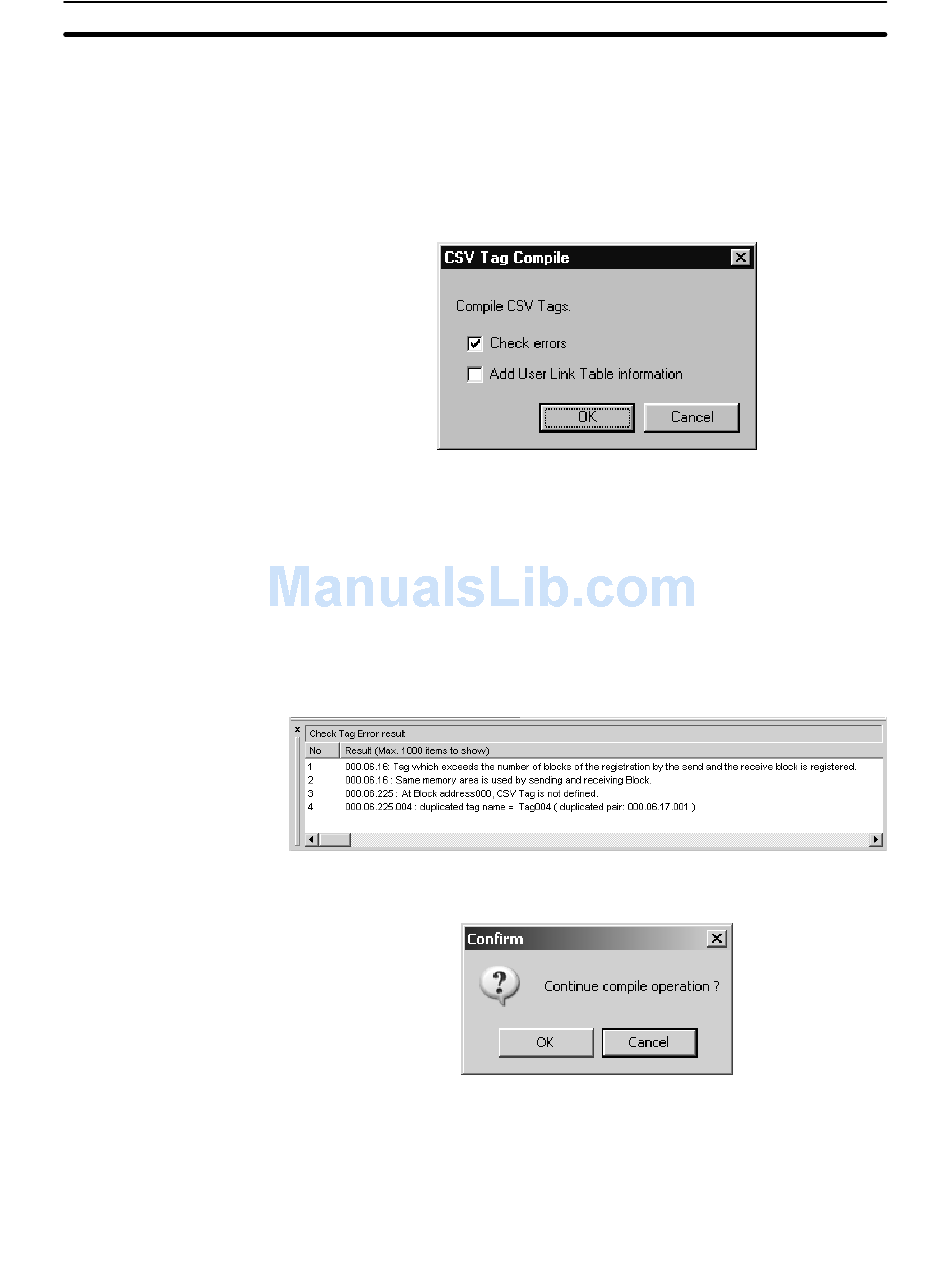

1) Select Compile CSV Tags from the Execution Menu. The following dia-
log box will be displayed.
If Check Errors is selected and the OK Button is clicked, the results of
the error check will be displayed when the file is compiled.
To add user link table tags to the CSV tag file for LCBjjs, select Add
User Link Table Information.
2) Click the OK Button. The execution results will be displayed in the Output
Window.
Error Display
The following dialog box will be displayed for confirmation.
Click the Cancel Button and correct the error. (For example, if the mes-
sage says a CSV tag is not registered for a certain block address, regis-
ter the CSV tag.)
If the OK Button is pressed even though there is an error, the same dialog
box as for when no error occurs will be displayed.
Section 3-4
