Creating User-defined Blocks
User-defined Blocks
Pasted with Other
Function Blocks

3-6-3 Creating User-defined Blocks on the CX-Process Tool

Analog Input
1, 2, 3...
User-defined blocks can be inserted into a function block diagram for use with
other function blocks.
Another Project

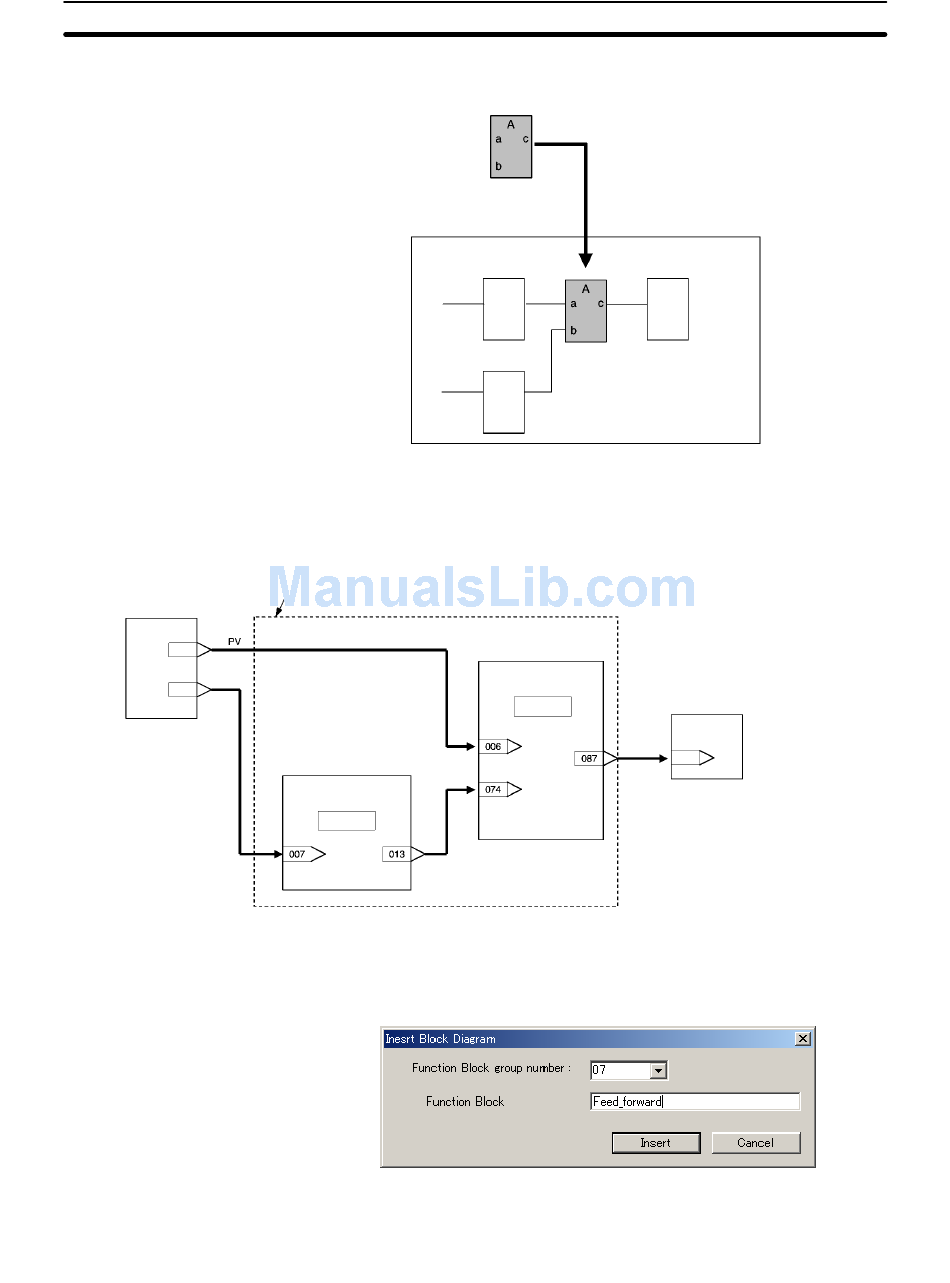

The following example shows how to create a user-defined block. In this exam-
ple, a user-defined block is created for feedforward control (shown in dotted
lines in the following diagram).
This portion will be created as
a user-defined block.
MV com-
pensation
Lead/Delay
(Block Model 147)
Addr 100
1. Create a new block diagram by selecting the LCU or LCB element, right-
clicking, and selecting Insert. Alternately, select an existing block diagram.
2. Input the name of the user-defined block as the name of the function dia-
gram.
3. Select Setting – User-defined Block – Create.
As shown below, the background of the block diagram will change to purple.
User-defined Block A
Inserting User-defined Block A
Advanced PID
(Block Model 012)
Addr 001
MV
Section
Analog Output
3-6
175
