Interroll Roller curve SH 1210
Installation

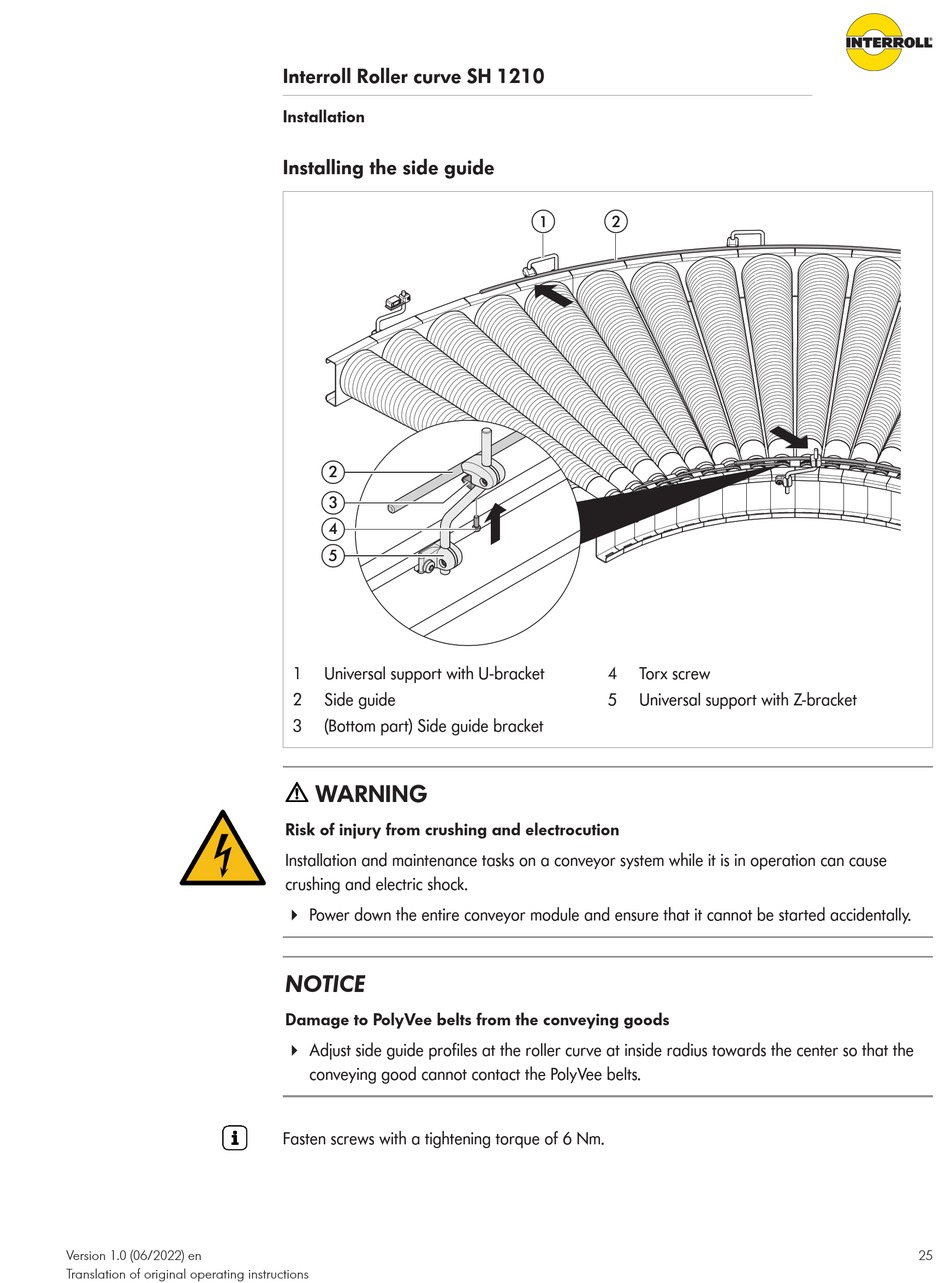

Installing the side guide

2
3
4
5
1 Universal support with U-bracket
2 Side guide
3 (Bottom part) Side guide bracket
WARNING
Risk of injury from crushing and electrocution
Installation and maintenance tasks on a conveyor system while it is in operation can cause
crushing and electric shock.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
NOTICE
Damage to PolyVee belts from the conveying goods
4 Adjust side guide profiles at the roller curve at inside radius towards the center so that the
conveying good cannot contact the PolyVee belts.
Fasten screws with a tightening torque of 6 Nm.
1 2
4 Torx screw
5 Universal support with Z-bracket
