Operation

Working under load

Working under load

Before taking up load

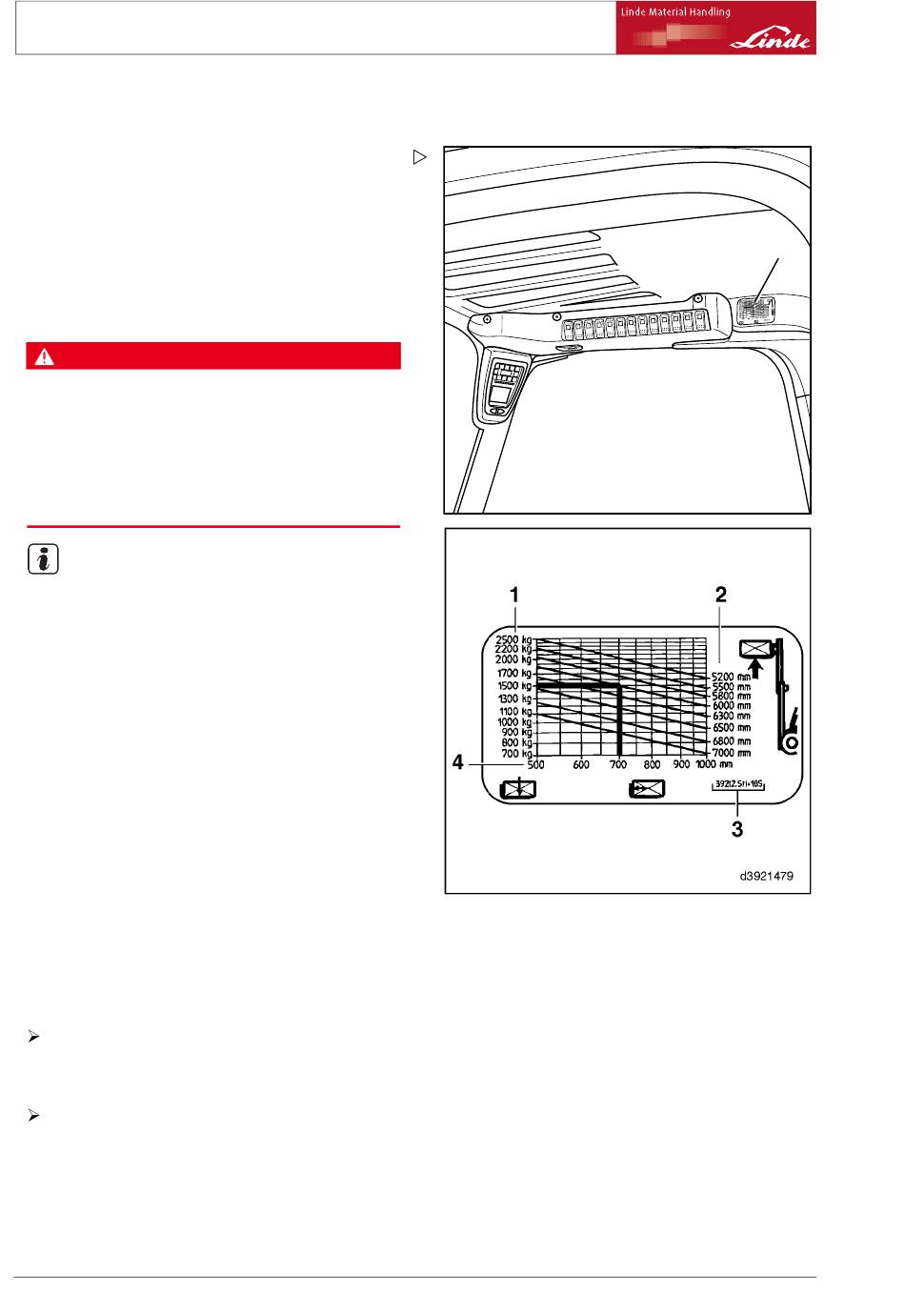

Before taking up load look at lifting capacity
diagram (1) .
The max. permissible load is determined by
the distance of the centre of gravity of the load
from the fork back of the fork arms and the lift
height.
DANGER
The values specified in the lifting capacity diagram
or plate apply to compact homogeneous loads and
must not be exceeded as this will impair the stability
of the forklift truck and the strength of the fork arms
and lift mast.
When using attachments take note of the lifting
capacity plate for each attachment device.
NOTE
Take the load restriction into account and con-
sult your authorised dealer
before transporting off-centre or swinging
•
loads
before transporting loads with the lift mast
•
tilted forward or the load not close to the
floor
loads involving a large centre of gravity
•
distance
before using attachments and additional
•
equipment
before transporting loads in a wind force of
•
6 and upwards.
Example
Centre of gravity distance for load: 700 mm
Load height to be lifted: 6000 mm
Trace a vertical line from a load distance of
700 mm to its point of intersection with the
line for a lift height of 6000 mm.
At the point of intersection with the horizon-
tal line read off the max. permissible load to
the left .
The maximum load in this example is 1500 kg.
64
1 Max. weight of permissible loads in kg
2 Lift height in mm
3 Type designation of forklift truck with max.
lifting capacity
4 Distance between centre of gravity of load
and fork back in mm
Operating Instructions – 386 807 1001 EN – 03/2006
